4SP hydraulic hose 16 mm (ID) 380 bar (OP) 25 m Black

Notice: This product is discontinued

Discontinued

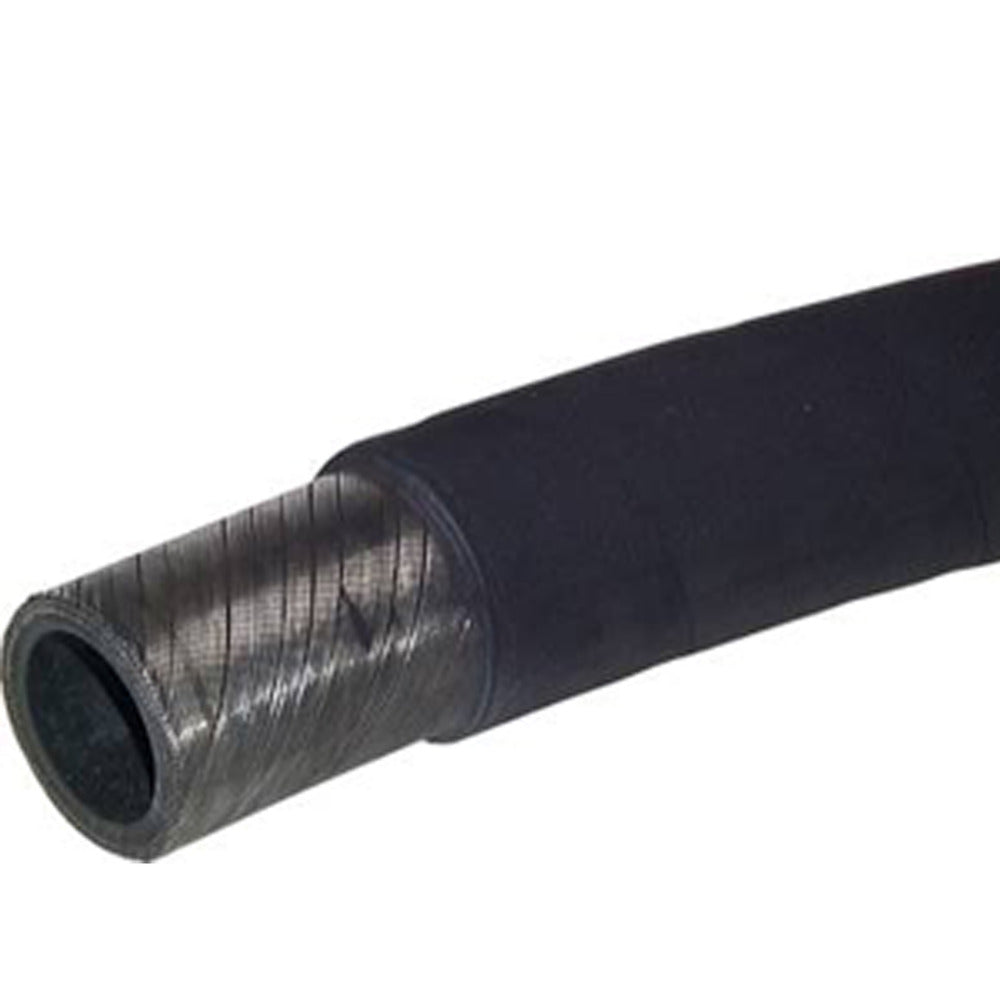

4SP hydraulic hose 16 mm (ID) 380 bar (OP) 25 m Black
Reference: HL-R-BLA-4SP-16x27p6-25
Brand: Tameson

High quality 16 mm 4SP hydraulic hose in the colour . The hose is suitable for hydraulic oils based on mineral oil, air, water and lubricants. Hose must be pricked if it is used for air. The hose is fabricated according to the 4SP standard. It is made of Rubber and has 4 steel inlay(s). Note: Sold at a pre-cut length of 25 meter and cannot be returned!

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

High quality 16 mm 4SP hydraulic hose in the colour . The hose is suitable for hydraulic oils based on mineral oil, air, water and lubricants. Hose must be pricked if it is used for air. The hose is fabricated according to the 4SP standard. It is made of Rubber and has 4 steel inlay(s). The temperature range is -40 °C – 100 °C. The hose has an operating pressure of 380 bar and bursting pressure of 1600 bar. Due to the high quality rubber material the hose is ozone, weather and abrasion resistant and offers excellent usability in the mining, construction and machine building industries. The standardized nominal diameter of the hose is DN 16. This hose is sold at a pre-cut length of 25 m. Hose conforms to EN 857 & SAE 100 R4 standard(s). (Due to the manufacturing process we cannot exclude that the hose will be supplied in pieces. We attempt to deliver a maximum of 3 pieces, where none of the pieces is shorter than 3 meters)

Pros:

  • Ozone, weather and abrasion resistant
  • Large temperature range (-40 °C – 100 °C)
  • Very high bursting pressure (1600 bar)
  • Hose conforms to EN 857 & SAE 100 R4 standard(s)

Cons:

  • Without couplings

HL-R-4SP series

The HL-R-4SP hoses are high-quality hydraulic hoses suitable for the mining, construction and machine building industries. The hoses are made of rubber with has 4 steel inlay(s). Due to the high quality rubber material the hoses are ozone, weather and abrasion resistant. The hoses are available in pre-cut lengths of 1, 3, 10 and 25 meters.
