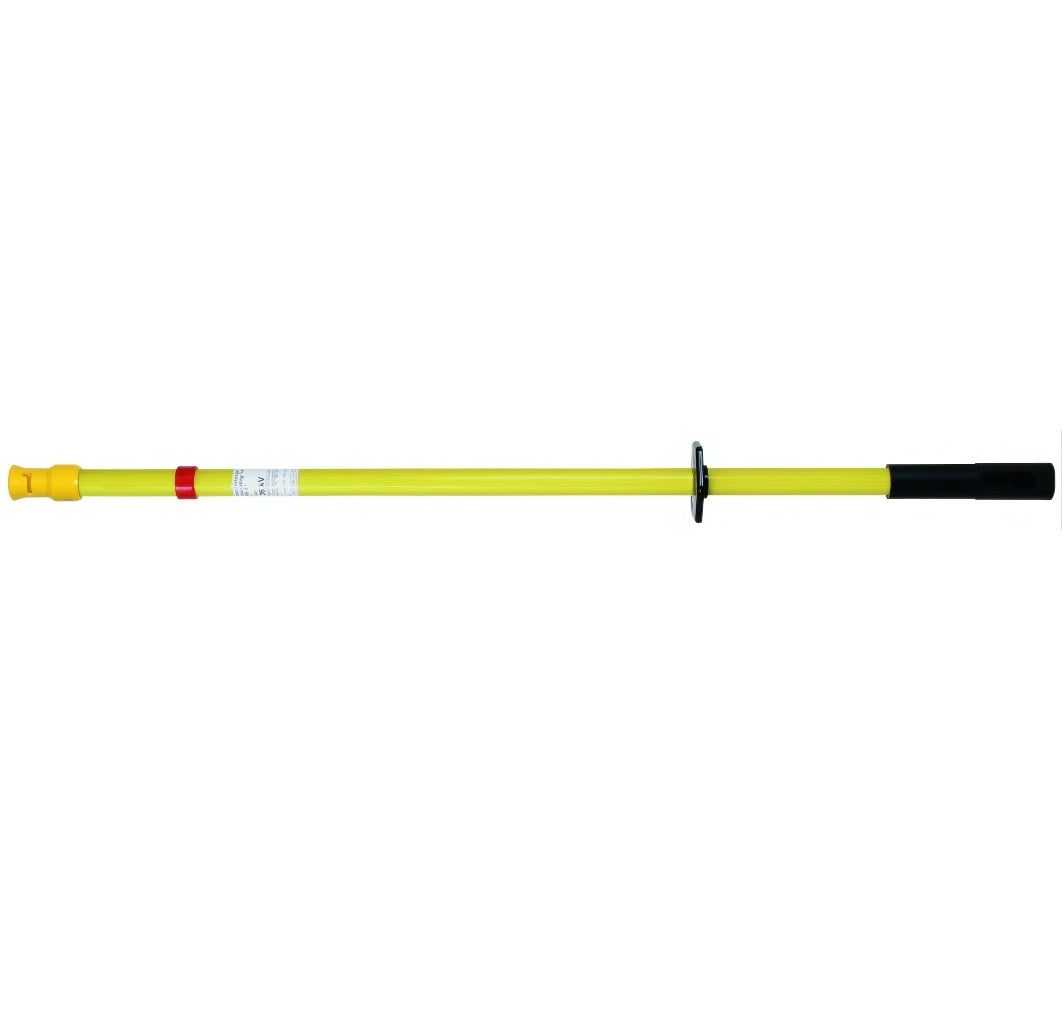

Insulating Stick 36kV With Plug-In Coupling And T Pin Shaft - 766301

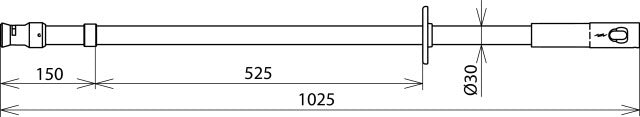

This is a high voltage insulating stick with a diameter of 30mm, suitable for both indoor and outdoor installations. It operates at a nominal voltage of 1 - 36kV and is designed to be used while the system is live. The stick has a total length of 1025mm and features an extendable handle for easy operation. It meets E DIN VDE V 0681-1 standards and includes an operating head with a bayonet locking mechanism and pressure spring. The stick can be used as a switching stick by attaching a SSK SQ switching stick head, or for inserting insulating protective shutters and earthing stick. It is also equipped with an anti-rotation plastic plug-in coupling to extend the handle and has a sinking depth of 150mm for safety.
- Regular price
- £168.76
Description
This is a high voltage insulating stick with a diameter of 30mm, suitable for both indoor and outdoor installations. It operates at a nominal voltage of 1 - 36kV and is designed to be used while the system is live. The stick has a total length of 1025mm and features an extendable handle for easy operation. It meets E DIN VDE V 0681-1 standards and includes an operating head with a bayonet locking mechanism and pressure spring. The stick can be used as a switching stick by attaching a SSK SQ switching stick head, or for inserting insulating protective shutters and earthing stick. It is also equipped with an anti-rotation plastic plug-in coupling to extend the handle and has a sinking depth of 150mm for safety.
