Jung Smartcontrol KNX Space Controller - SC1000KNX

Notice: This product is discontinued

Discontinued
Jung Smartcontrol KNX Space Controller - SC1000KNX
Jung Smartcontrol KNX Space Controller - SC1000KNX
Image may vary slightly
See specifications for accurate information.
Reference: E3PGX
Brand: Jung
Mfr. Part: SC1000KNX

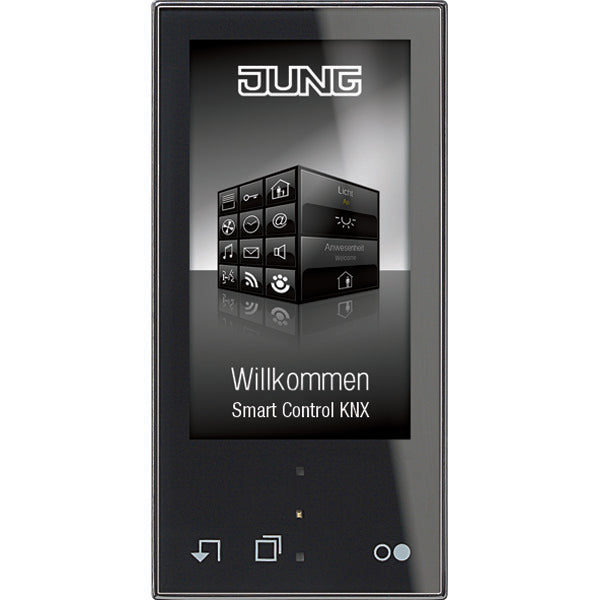

The item is a Jung controller for a bus system, which comes in a light grey color. The operational voltage for this device is 24Vdc and it includes a bus connection. Moreover, it uses the KNX bus system and comes with a display. The controller is designed for in-built installation purposes. Additionally, it functions as a smart control space controller with touch technology.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

The item is a Jung controller for a bus system, which comes in a light grey color. The operational voltage for this device is 24Vdc and it includes a bus connection. Moreover, it uses the KNX bus system and comes with a display. The controller is designed for in-built installation purposes. Additionally, it functions as a smart control space controller with touch technology.

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Supply voltage DC (V)
24 V to 24 V
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
2
Number of HW-interfaces SCSI
0
Number of HW-interfaces PS2
0
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
Yes
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
TFT
Screen diagonal (inch)
4.3
Number of pixels, horizontal
800
Number of pixels, vertical
480
Preinstalled operating system
Linux
Integrated keyboard
No
Number of function buttons
3
Number of buttons with LED
0
Number of system buttons
2
With touch screen
Yes
Mouse-cursor control integrated
No
Operating temperature (°C)
0 °C to 35 °C
With hard disc
No
With CD-ROM drive
No
With DVD-drive
No
With CD-RW drive
No
With DVD RW drive
No
With floppy disc drive
No
With other storage media
Yes
Customer individual configuration
Yes
Number of free AGP-slots
0
Number of free PCI-slots
0
Number of free ISA-slots
0
Number of free PCMCIA-slots
0
Rail mounting possible
No
Wall mounting/direct mounting
Yes
Front built-in possible
Yes
Rack-assembly possible
No
Mounting type, table foot
No
Mounting type, gallows mounting
No
Suitable for safety functions
No
Width of the front (mm)
71
Height of the front (mm)
142
Built-in depth (mm)
30
