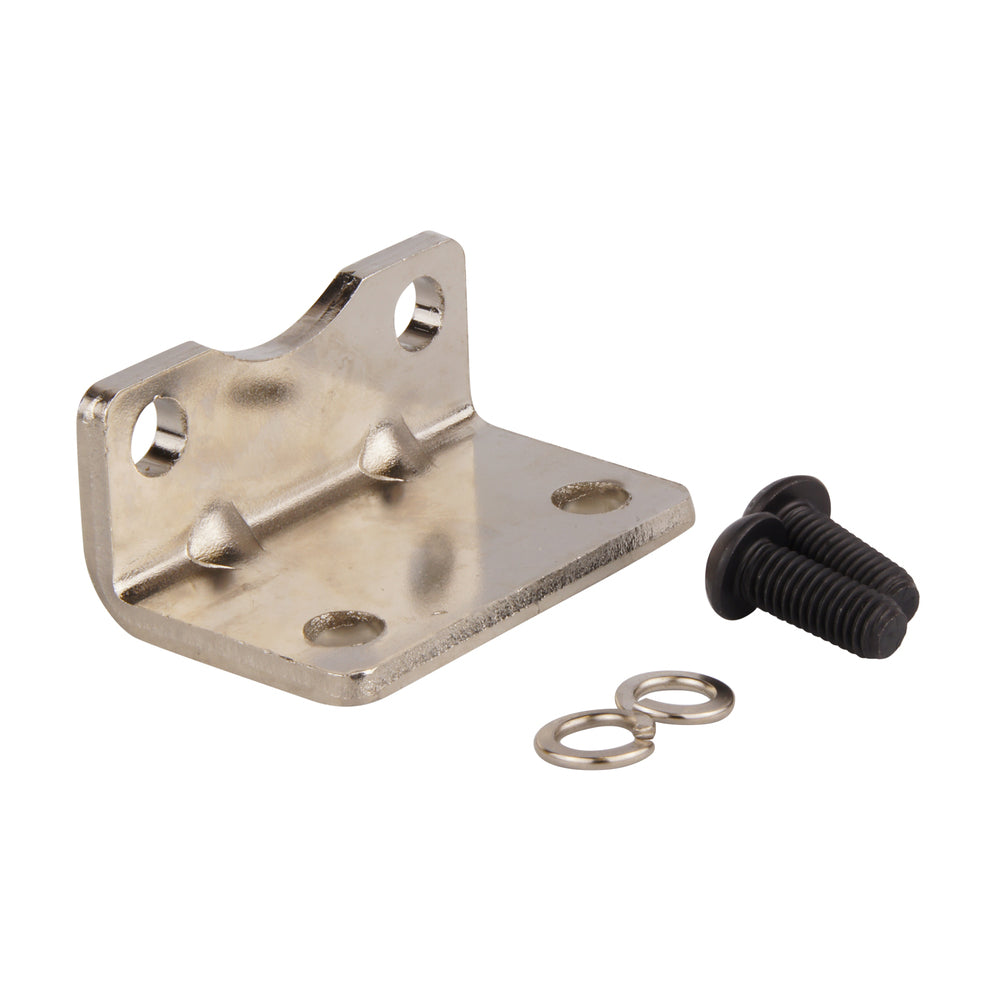

CYL-32mm Foot Mount Steel ISO-15552 MCQV/MCQI2 [2 Pieces]

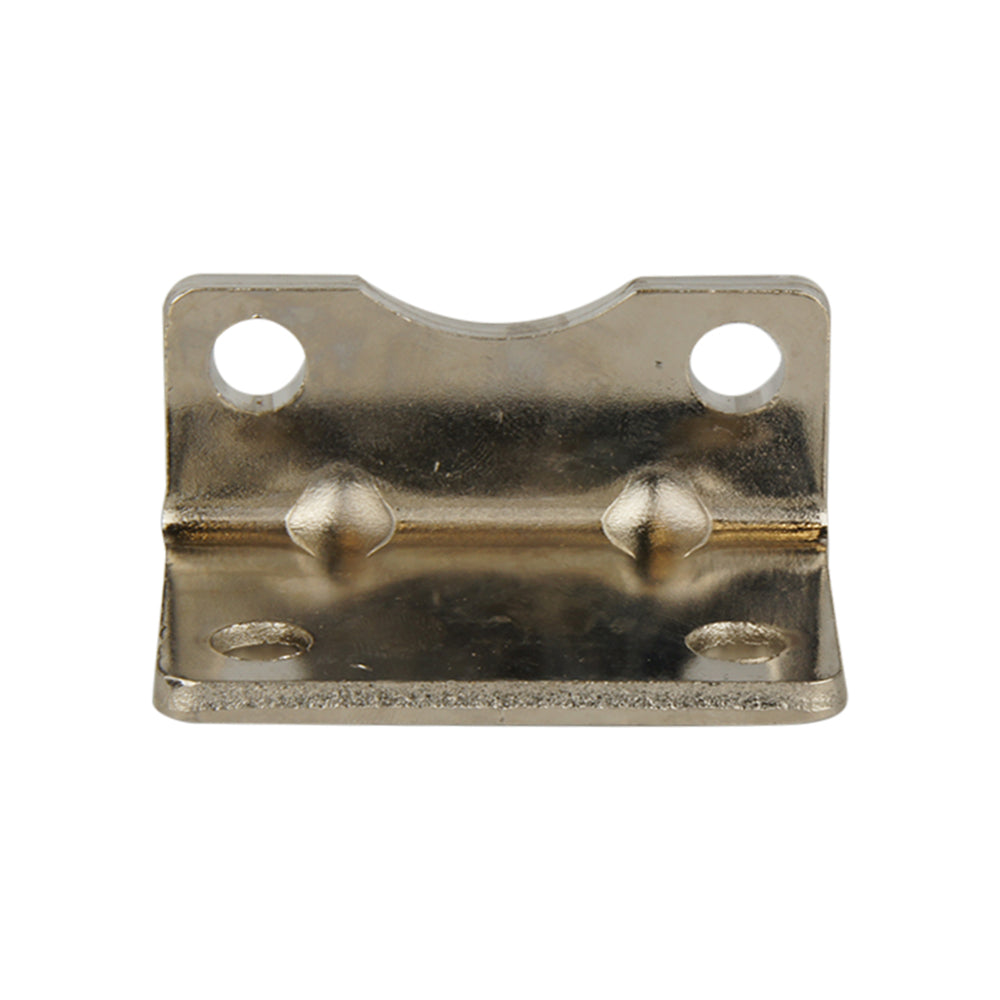

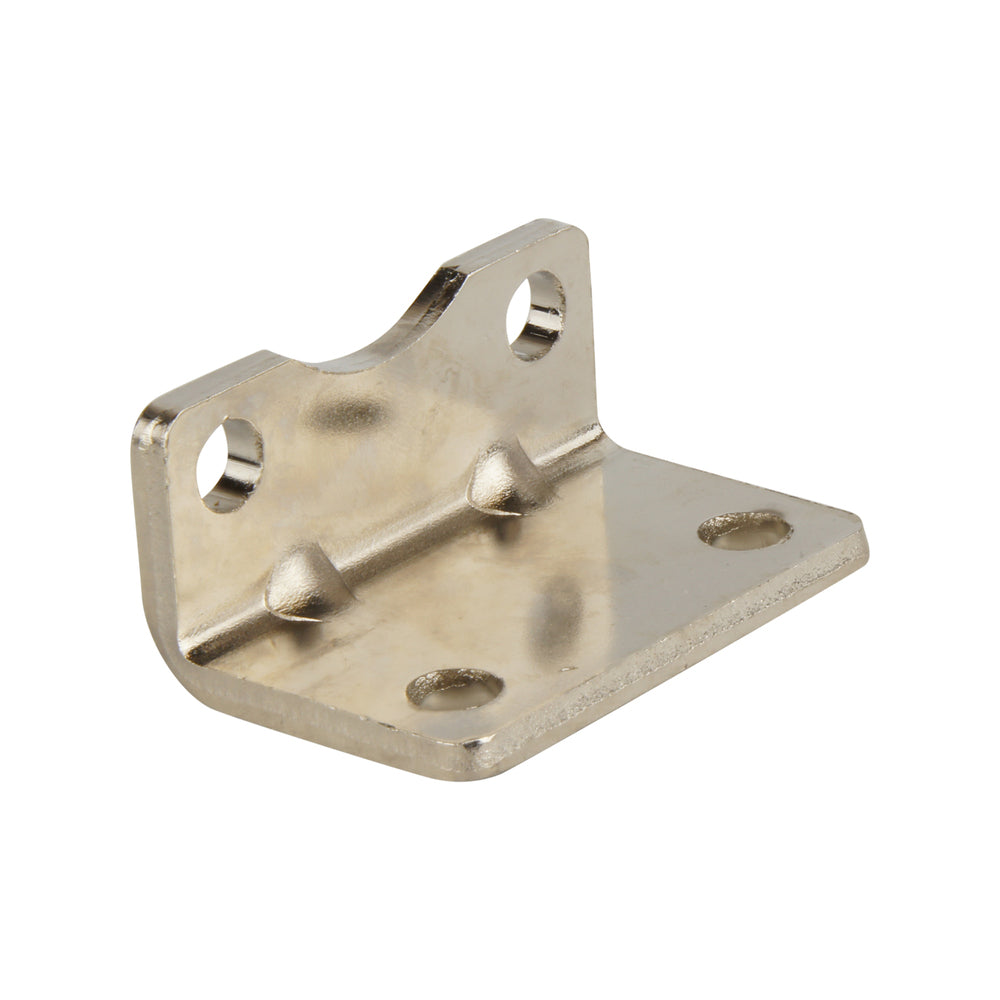

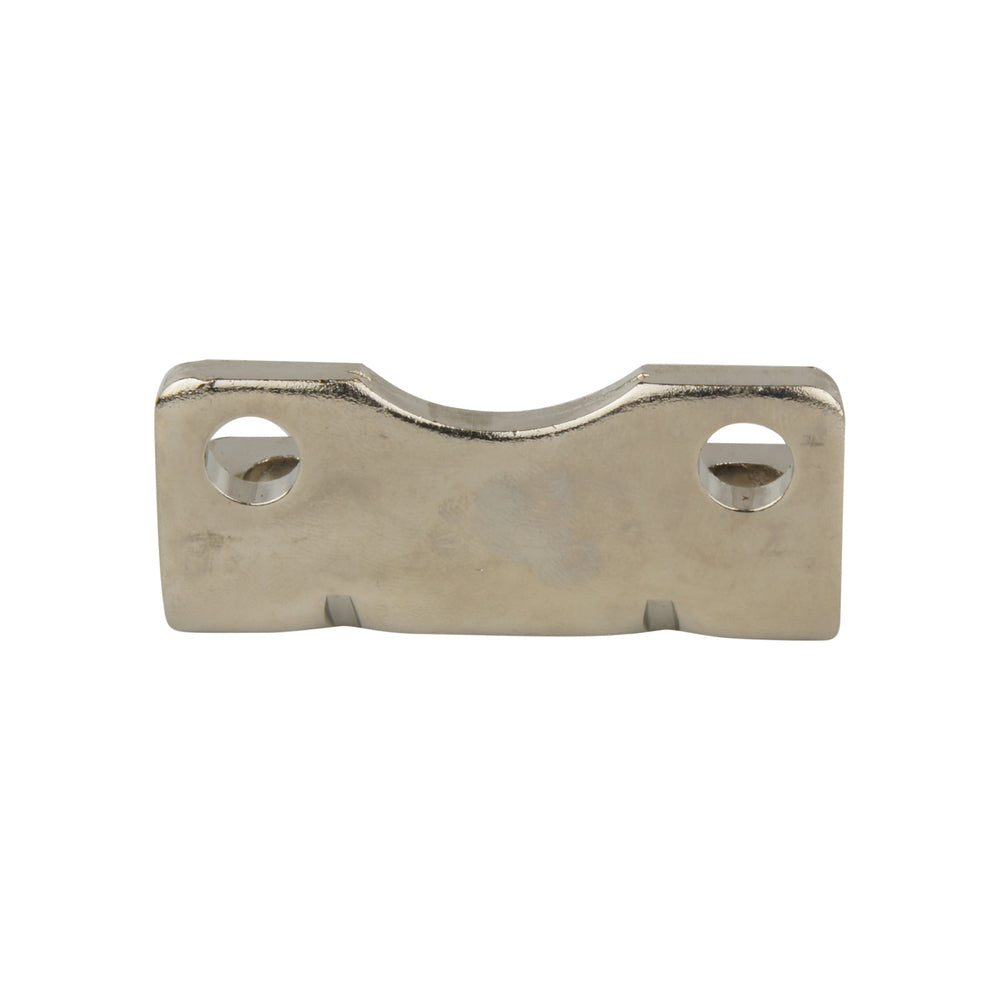

This foot flange is designed for fixed mounting of ISO 15552 & 21287 pneumatic cylinders with a 32 mm diameter. If your cylinder doesn’t adhere to the ISO standard, you need to ensure the flange can mount properly to the cylinder’s cap-end. They allow for easy assembly and disassembly. They create a rigid mounting, which means the cylinder must be properly aligned to the load. They should be used on the front and back end of the cylinder (2 needed). This foot mount flange has two holes to bolt to the cylinder and then has a bend of 90° and two holes in the flange to use bolts to secure it to the mounting surface parallel to the cylinder’s rod. They are made out of steel.

Pros:

• Secure fixed mounting
• Easy assembly/disassembly

Cons:

• Has little tolerance for mounting misalignment
• Two foot mounts are required to fix the cylinder

LB series

The Mindman MCQV & MCQI2 mounting accessories for the cap-end consists of flanges, foot mounts, and clevises. This range allows for fixed mounting (flange and foot mounting) and the ability to do fixed pivot mounting (female, male, or male angled clevis). They are easily attached to ISO 15552 or 21287 (32-100mm) with four bolts. The clevises are always mounted to the back of the cylinder, the foot mounts should be mounted to both the front and the back (same component) and the flange can be back, front, or both. The necessary pins for the clevises are also available within this series.
