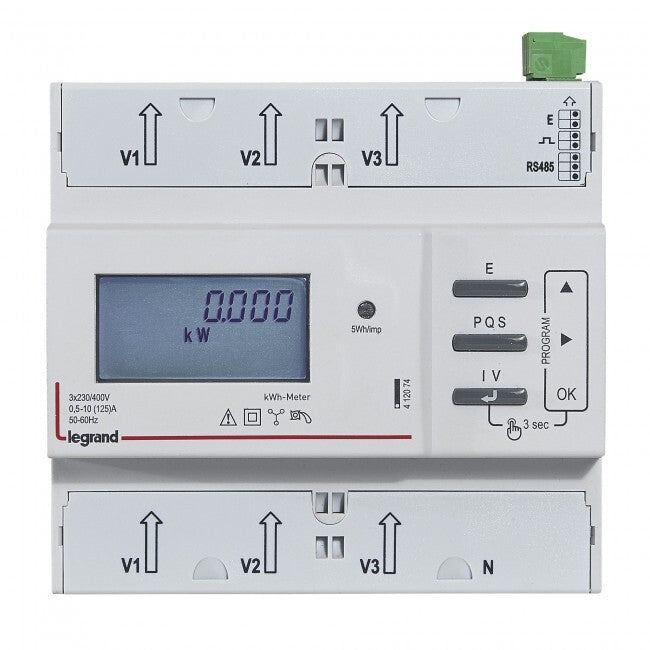

Legrand LEXIC Electricity Meter - 412074

Legrand LEXIC Electricity Meter - 412074
Legrand LEXIC Electricity Meter - 412074
Image may vary slightly
See specifications for accurate information.
Reference: T23JQ
Brand: Legrand
Mfr. Part: 412074

Legrand LEXIC electricity meter direct measurement, pole type quad conductor, meter type electronic, type indication digital, rated voltage (Un) L-L 340 - 465V, rated voltage (Un) N-L 197 - 265V, rated current (In) 20A, max current (Imax) 125A, frequency 47 - 63Hz, pulse rate 0.001 - 100Imp/kWh.

View all
£329.65
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Legrand LEXIC electricity meter direct measurement, pole type quad conductor, meter type electronic, type indication digital, rated voltage (Un) L-L 340 - 465V, rated voltage (Un) N-L 197 - 265V, rated current (In) 20A, max current (Imax) 125A, frequency 47 - 63Hz, pulse rate 0.001 - 100Imp/kWh.

Downloads

Management, operation and maintenance document (EN)
pdf
Download
Other Documentation (EN)
pdf
Download
Product data sheet (EN)
pdf
Download

Specifications

Type of meter
Electronic
Nominal current (In) (A)
20
Max. current (Imax) (A)
125
Nominal voltage (Un) N-L (V)
197 V to 265 V
Nominal voltage (Un) L-L (V)
340 V to 465 V
Frequency (Hz)
47 Hz to 63 Hz
Accuracy class
B
Pole type
Four conductor
Model
Direct measurement
Energy type
Effective power and blind power
Suitable for
Purchase
Tariff type
Two-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Domestic
Pulse output
Optic
Pulse type
S0
Pulse rate (Imp/kWh (kvarh))
0.001 Imp/kWh (kvarh) to 100 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
6
Width (mm)
The product's width without packaging.
107.2
Depth (mm)
The product's depth without packaging.
65.6
Height (mm)
The product's height without packaging.
111.5
Type of interface
RS-485
EEC40 signature
No
With lock code
Yes
Number of positions total (counter)
8
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP54
