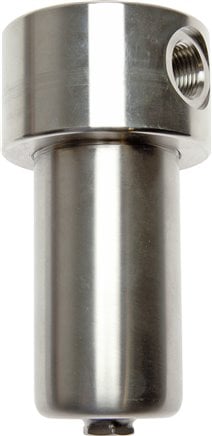

Lubricator Stainless Steel G1/2''

Lubricator Stainless Steel G1/2''
Lubricator Stainless Steel G1/2''
Image may vary slightly
See specifications for accurate information.
Reference: P27F8
Brand: Tameson

This G 1/2 inch pneumatic lubricator introduces a fine mist of oil into the air to reduce internal friction in components. Suitable for a 50.0 bar (725 psi) max input and temperatures between -20 and 80 °C (-4 and 176 °F).

View all
£586.99
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 1/2 inch ports.

The maximum input pressure is 50.0 bar (725 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). The lubricator requires a minimal flow rate of 2400 l/min and can hold cm3 of oil. The housing material is made out of stainless steel and the lubricator has a bowl made of stainless steel.

Mounting brackets need to be ordered separately.

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/2 inch
Max flow rate (l/min)
2400
Max. pressure difference at 20 °C (bar)
Maximum pressure difference between output and input at room temperature.
50
Connection type
Inner thread cylindrical BSPP-G
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel
Material quality
The material quality provides more detailed information on the housing material. Choose a housing material that will not corrode from the media and environment.
Stainless steel (1.4404)
With mounting bracket
No
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
Height (mm)
The product's height without packaging.
175
Length (mm)
The product's length without packaging.
79
Container material
Stainless steel
