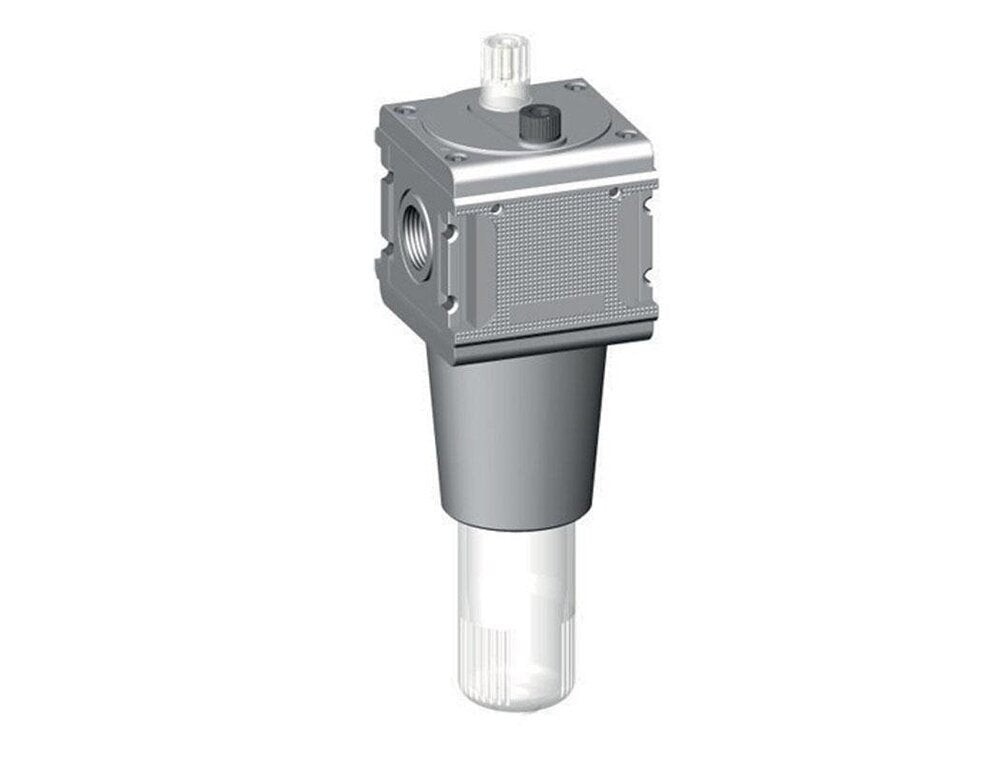

Lubricator G3/4'' Polycarbonate Multifix 5
This G 3/4 inch pneumatic lubricator introduces a fine mist of oil into the air to reduce internal friction in components. Suitable for a 16.0 bar (232 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). The min flow for oil drip is 800 l/min. The oil capacity is 450 cm3.
- Regular price
- £93.95
Description
The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 3/4 inch ports.

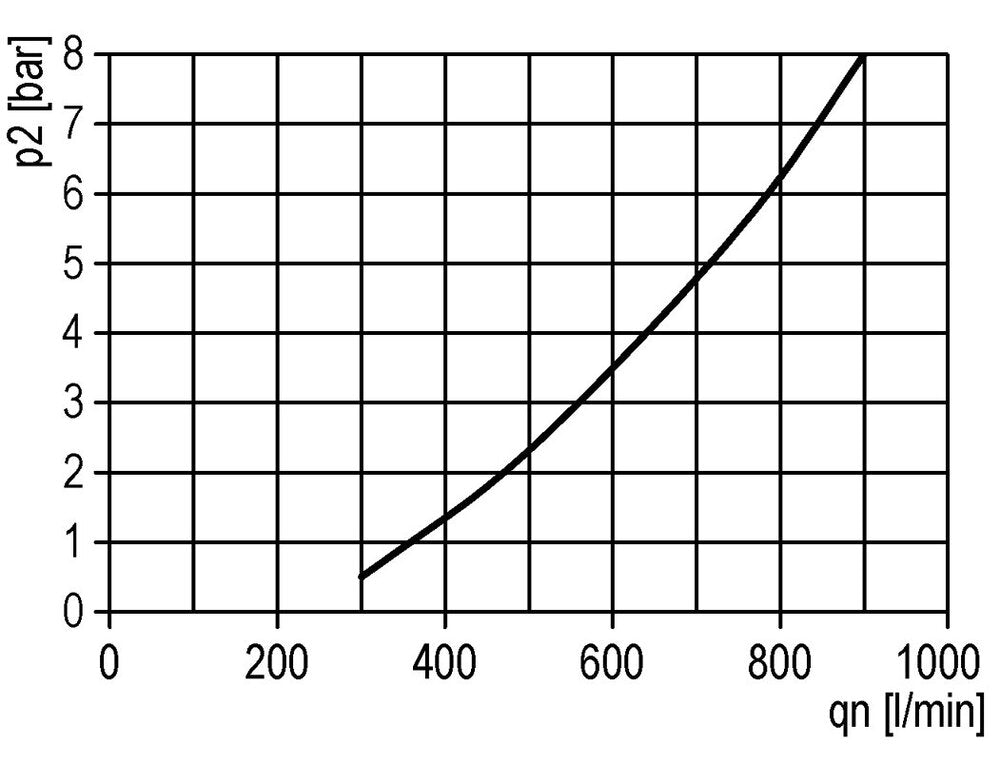

The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). The lubricator requires a minimal flow rate of 800 l/min and can hold 450 cm3 of oil. The housing material is made out of zinc die-cast and the lubricator has a bowl made of polycarbonate (PC).
Mounting brackets need to be ordered separately.
