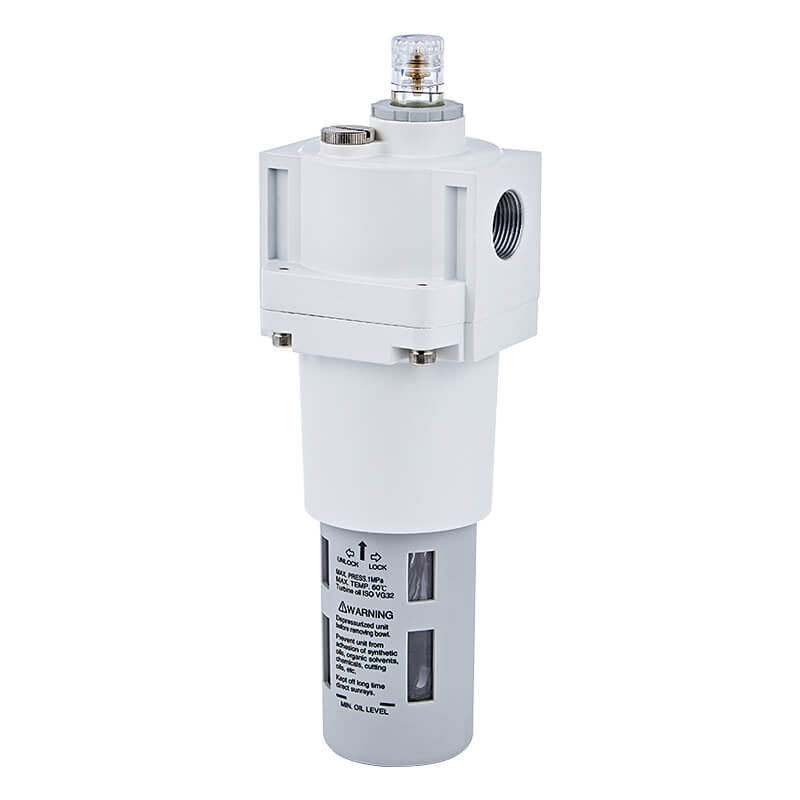

200 l/m G3/4'' Lubricator 10bar - MAL501
This G3/4" pneumatic lubricator introduces a fine mist of oil into the air to reduce internal friction in components. Suitable for a 10 bar max input and temperatures between -5 and 60 °C. The min flow for oil drip is 25 l/min. The oil capacity is 200 cm3.
- Regular price
The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Only use a lubricator if downstream equipment requires lubrication. The recommended lubricating oil type is ISO-VG32 turbine oil. Verify the type and quantity of oil needed for your component. This model has G 3/4" ports. The max input pressure is 10 bar and the temperature range is between -5 and 60 °C. The lubricator requires a minimal flow rate of 25 l/min and can hold 200 cm3 of oil. The housing material is made out of aluminium and the lubricator has a bowl made of polycarbonate (pc). It does not have a mounting bracket.
- Lubricates the air with oil to prevent damage down-line reducing maintenance cost. Only select a lubricator when down-stream equipment requires lubrication
- It does not have a mounting bracket
- Most modern pneumatic systems don't require extra lubrication. Verify if your components require lubrication
Our range of high quality Mindman filters, regulators, and/or lubricators treat your pneumatic air to maintain proper air quality, reduce equipment down time, and reduce operating costs when installed correctly. The function can be derived from the series name. MAFR represent filter-regulators, MAF filters, MAR pressure regulators, MACP FRL units, and MAL lubricators. Higher numbers in the series (e.g. MAFR501) typically represent higher flow rates. They can be purchased individually, or as a combined it, such as an air filter regulator (FR) or an air filter regulator lubricator combo (FRL). Varying options of filter mesh sizes, operating pressure ranges, pressure adjustment ranges, flow rate, lockability, and drainage options are available. Mindman is a global leader in the pneumatics industry and manufacturers a wide range of high quality pneumatic products. They follow strict manufacturing standards (ISO 9001) and verify their end products with numerous testing and calibration steps to ensure they meet specifications. You can be assured of high quality, efficiency, life cycle and excellent cost to performance ratio for these air treatment units.
