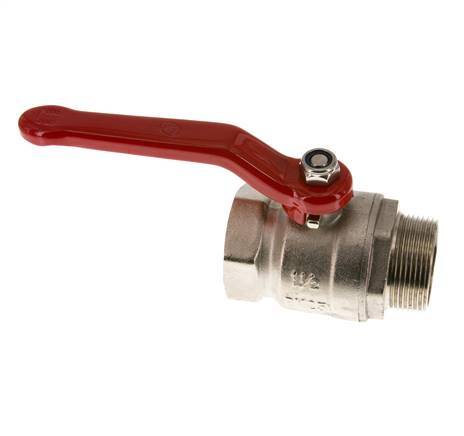

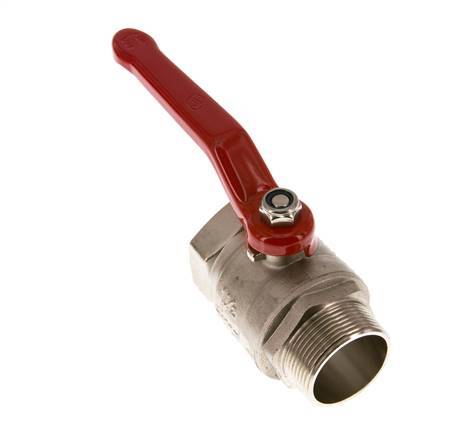

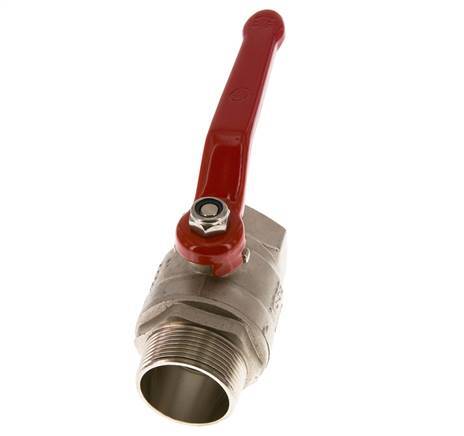

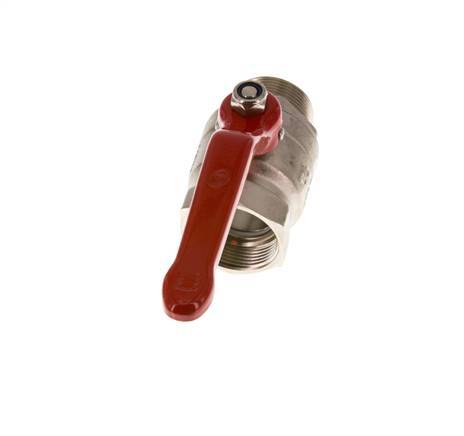

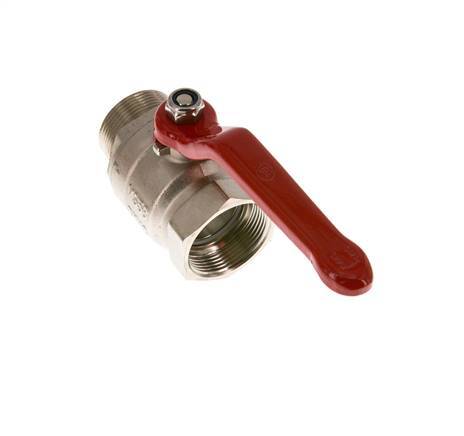

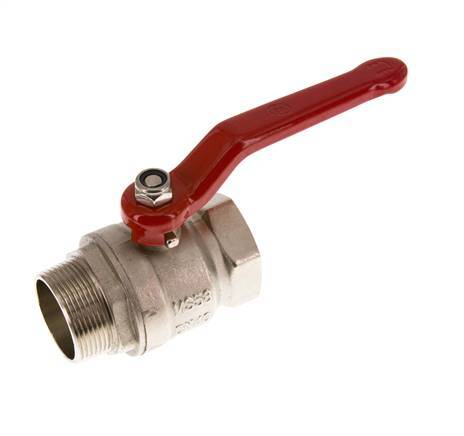

Male To Female R/Rp 1-1/2 inch Compact PN 25 2-Way Brass Ball Valve
2-way compact PN 25 ball valve with male to female R/Rp 1-1/2 inch ports and a handle for on/off flow control. The valve bore is 36 mm and the maximum pressure is 25 bar or 363 psi. Suitable for compressed air, water and oils. Suitable for temperatures from -20 to 95 °C (-4 to 203 °F). Nickel-plated brass housing, hard chrome plated brass ball and PTFE/NBR sealings.
- Regular price
- £36.95
Description
This 2-way compact PN 25 ball valve of nickel-plated brass with a valve bore of 36 mm is designed for on/off flow control.
The valve has male to female R/Rp 1-1/2 inch ports. This is BSPT (British Standard Pipe Taper). With our range of 1-1/2 inch fittings, the valve can be installed in any pipe.
The housing of the valve is made of nickel-plated brass, the ball is made of hard chrome plated brass and the sealings are made of PTFE/NBR. . The valve is suitable for temperatures from -20 to 95 °C (-4 to 203 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If it is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.
Pros:
- No extra friction losses thanks to the full bore design
Cons:
- Not suitable for aggressive media
- Not suitable for vacuum
BL2BN-M-SD-25 series
View our 2-way compact PN 25 male to female threaded brass ball valve BL2BN-M-SD-25 series. The ports range from 1/4 inch to 2 inch. The housing material is nickel-plated brass, the ball material is hard chrome plated brass and the sealings are PTFE/NBR. The valves are suitable for water, oils and compressed air up to a maximum operating pressure of 25 bar or 363 psi. The valves can be used within a temperature range from -20 to 95 °C (-4 to 203 °F). The whole series is handle operated and provides reliability and a long service life.
