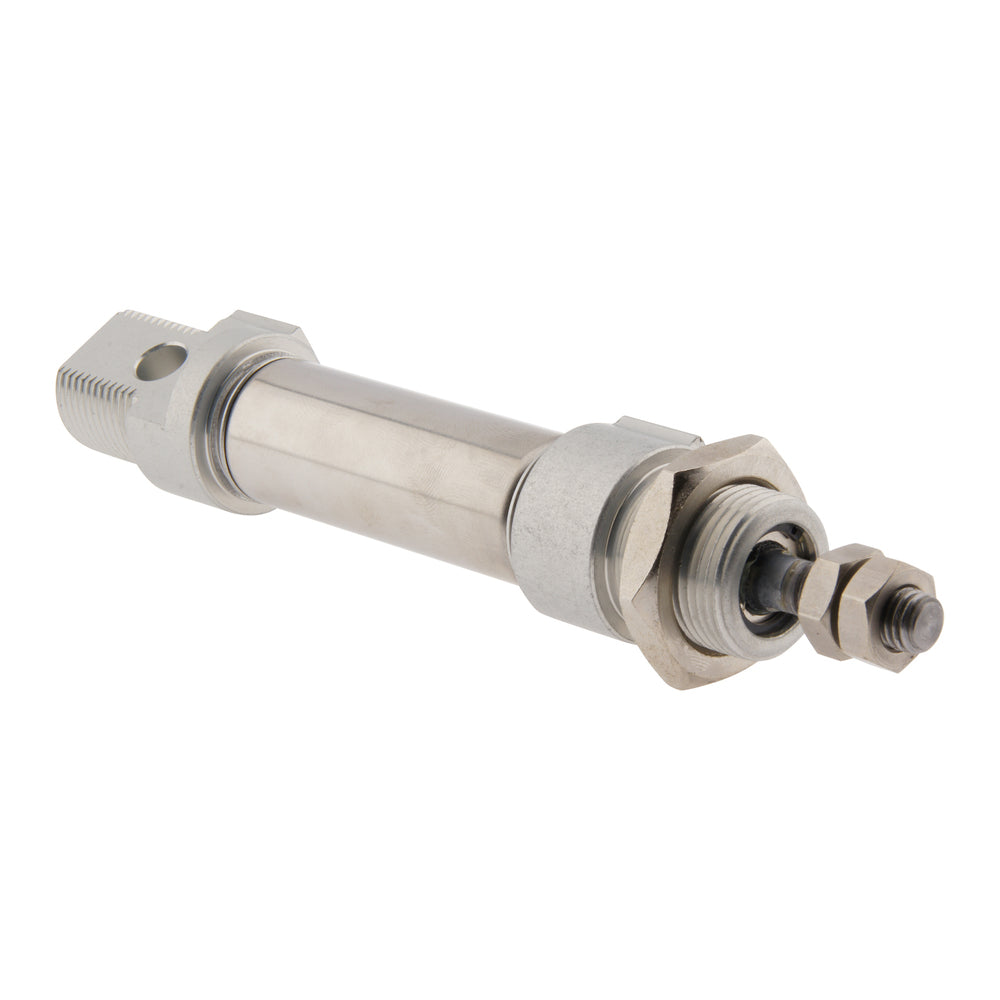

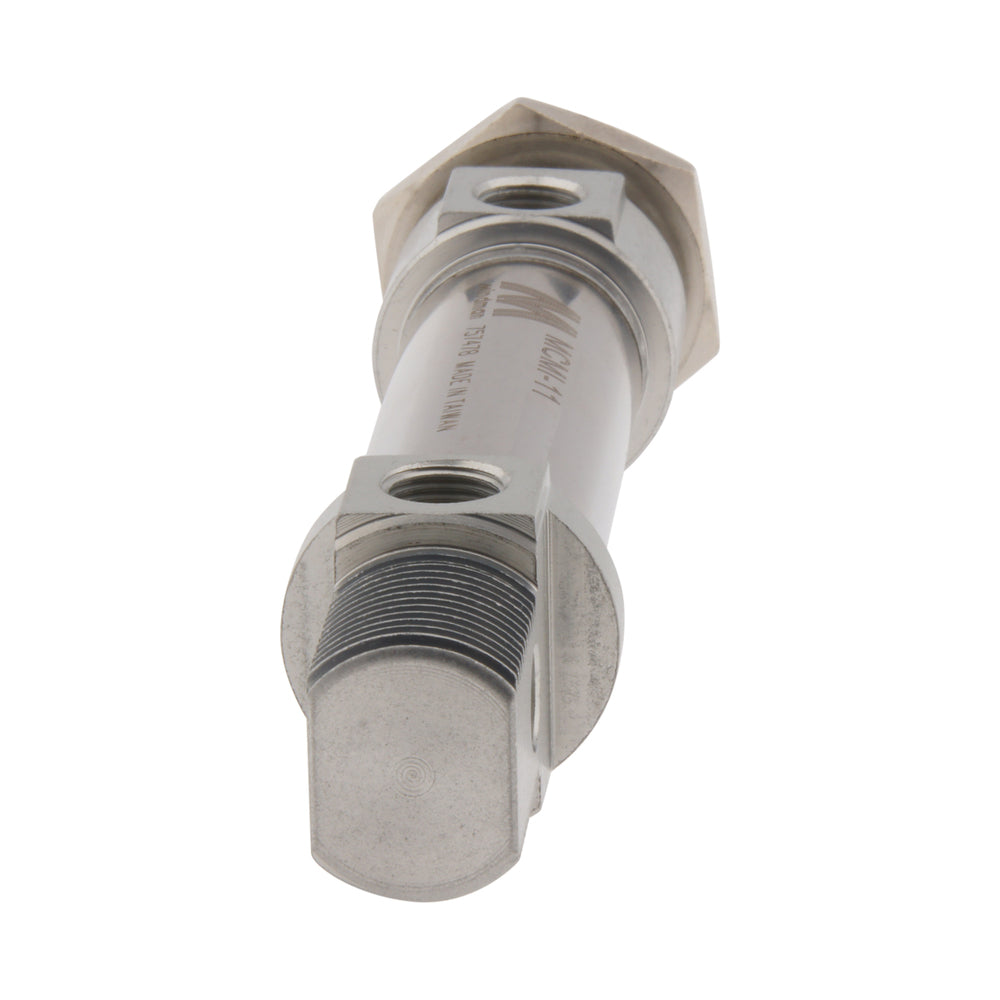

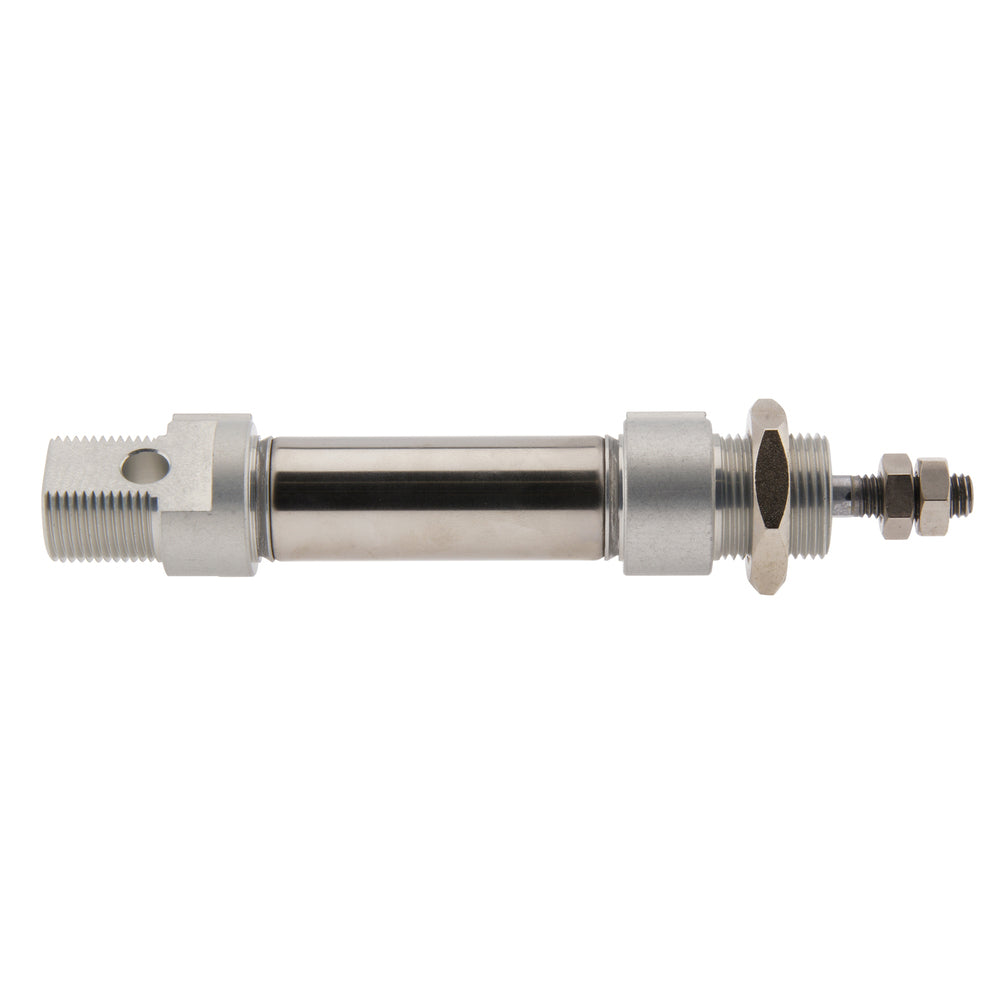

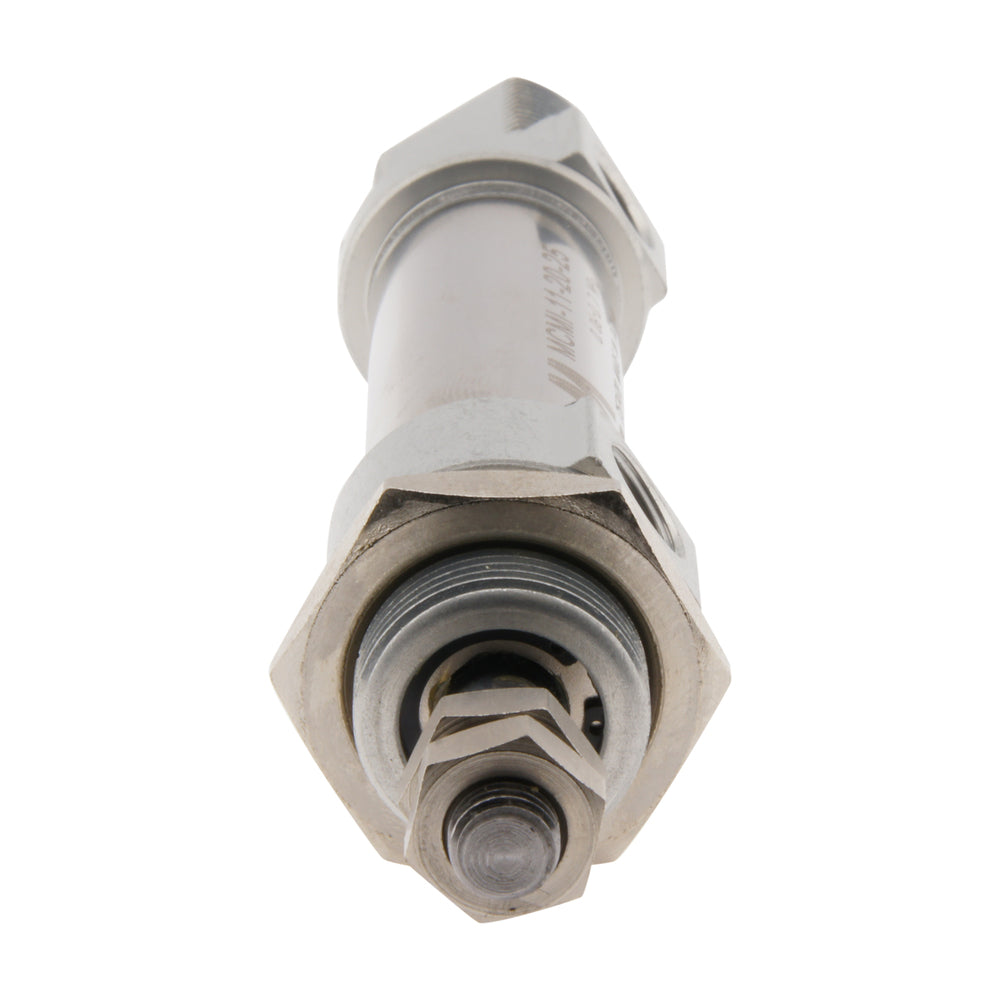

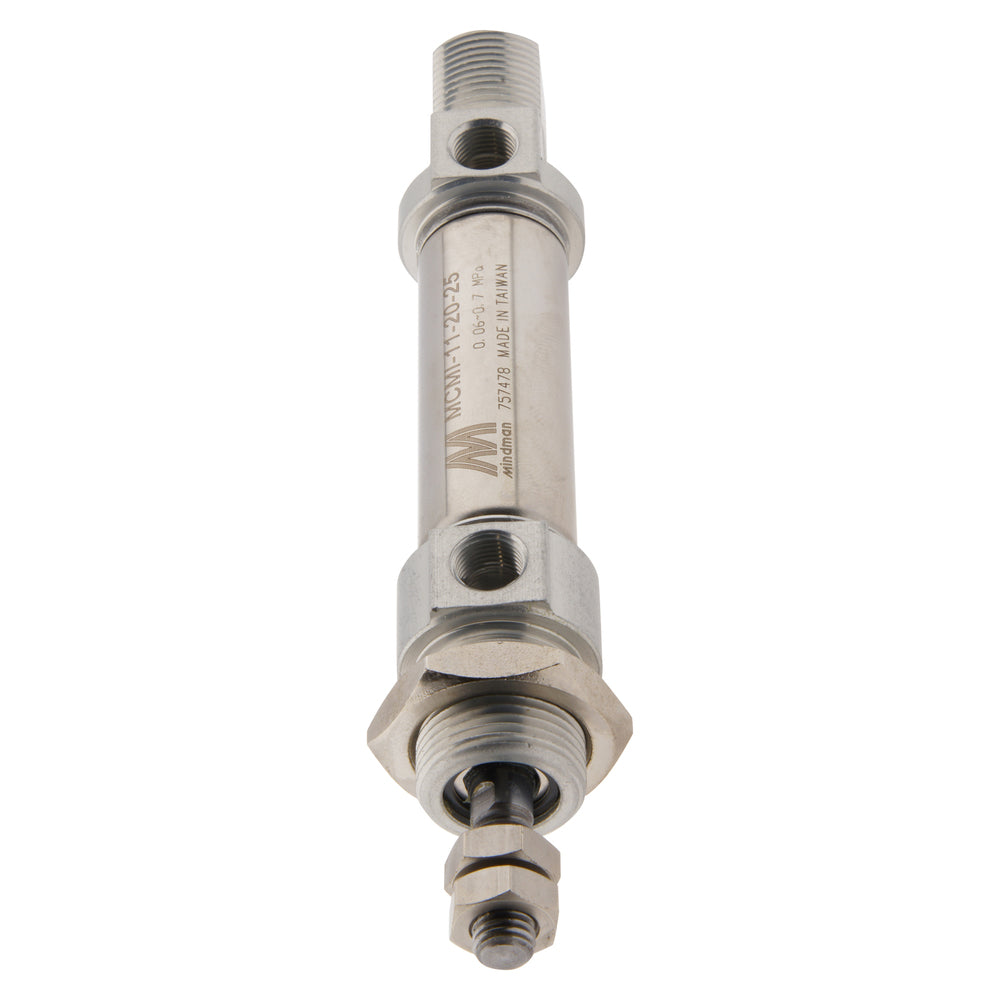

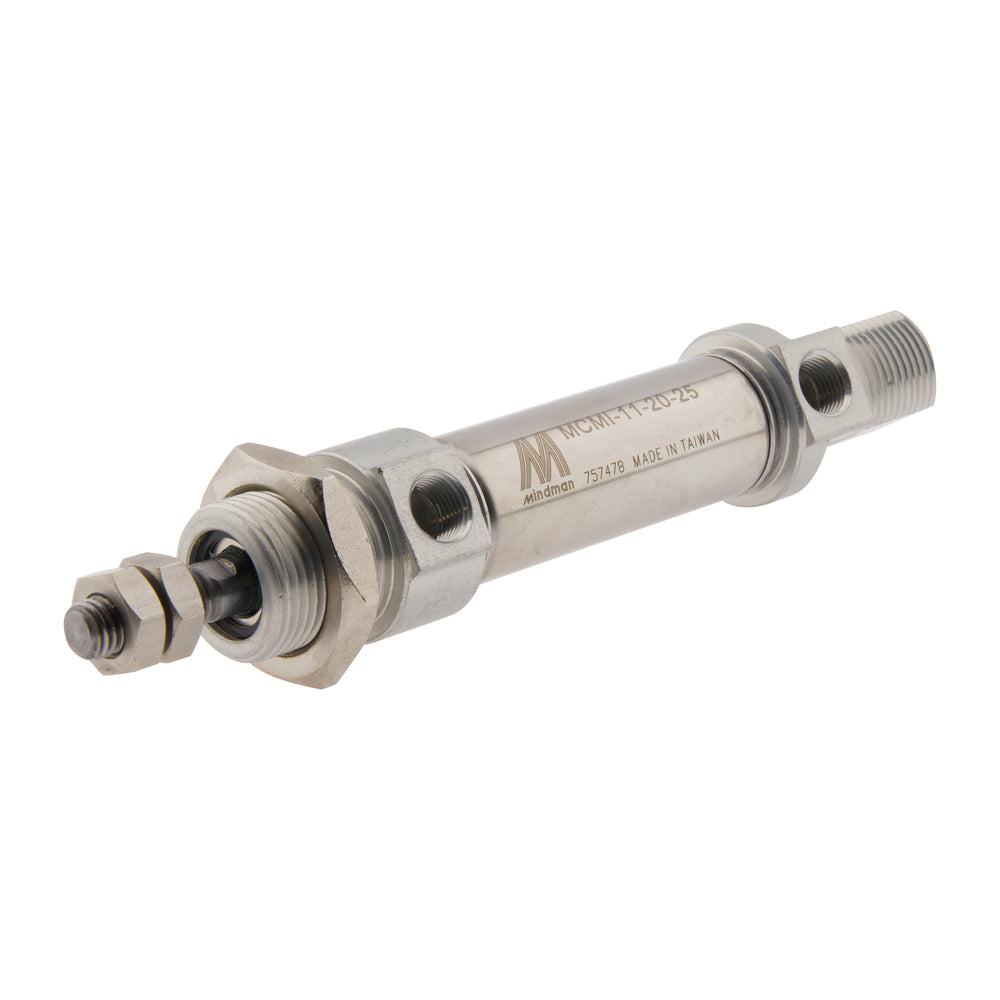

20-50mm Double Acting Mini Cylinder ISO-6432 MCMI
Double acting ISO 6432 mini pneumatic cylinder with a Ø20 mm bore and 50 mm stroke. It requires an operating pressure between 0.6 - 7 bar to theoretically exert a max force in of 185 N and max force out of 220 N. Self-lubricating, magnetic, and has an end rod thread of M8×1.25. Wide range of mounting accessories available. The cylinder has an anodized stainless steel tube with aluminum front and back covers and comes with a NBR sealing, it is capable of operating within a temperature range of -5 to 60°C.
- Regular price
This pneumatic cylinder from Mindman is double acting, meaning it requires air to extend and air to retract the rod. It adheres to ISO 6432 (also referred to as a mini cylinder or round cylinder), which is a globally accepted and widely used standard. The advantage is that it enables world-wide inter-changeability with other major brands such as Festo, SMC or Norgren. The bore size is 20 mm and it has a stroke length of 50 mm. It has an operating pressure of 0.6 - 7 bar and is capable of movement speeds of 50 - 500mm/s, while theoretically capable of exerting a max force in of 185 N and max force out of 220 N. The piston rod is self lubricating and has a M8×1.25 thread at the end. It has a magnet mounted in the piston. This allows precise position feedback of the rod location by mounting (one or more) magnetic sensors, such as reed or hall sensors, to the valve body. Pneumatic hoses can be connected to both G 1/8" air ports and the cylinder can be mounted rigid or flexible with a wide range of mounting options, such as rod swivel joint ends (ISO 8139) or rod fork ends. It has an NBR seal and an anodized stainless steel tube with aluminum front and back covers housing, making it durable and capable of operating within a temperature range of -5 to 60°C.
- Adheres to ISO 6432, which is globally accepted and widely used making it interchangeable with other major brands.
- It is double acting, allowing for full control of the rod.
- The rod is self lubricating, meaning no lubricators are required in the air system. It will require little maintenance and have a long service life.
- The product comes with no manual damping adjustment, but still has a cushioning pad.
- Not able to be operated in freezing environments.
The MCMI series adheres to ISO 6432 (also referred to as a mini cylinder or round cylinder), making it globally accepted and widely used allowing for replacement of other brands at a lower cost. There are double acting and single acting versions available. The rod diameter has a range of 8-25 mm and a stroke length between 10-500 mm making it capable of a wide range of applications. Other stroke lengths are available upon request. The piston is capable of movement speeds of 50-500 mm/s and operating on a pressure range of 0.6-7 bars, depending on the rod diameter. The MCMI series is theoretically capable of exerting a max force in of 288 N and max force out of 344 N. The piston rod is threaded at the end. Some versions have a magnetic strip, allowing for body mounted sensors to detect rod positioning. The MCMI series has an anodized stainless steel tube with aluminum front and back covers and an NBR seal, making the full assembly durable and capable of operating from -5 to 60°C. Mindman is a global leader in the pneumatics industry and manufacturers a wide range of high quality pneumatic products. They follow strict manufacturing standards (ISO 9001) and verify their end products with numerous testing and calibration steps to ensure they meet specifications. You can be assured of the high quality, efficiency, life cycle and cost to performance for these pneumatic cylinders.
The MCMI series is compatible with the following product series: Asco G435, Aventics MNI, Aventics OCT, Festo DSNU, IMI Norgren RM, IMI Norgren RT, Norgren RM Norgren RT, Parker P1A, SMC C85, SMC CBM2, SMC CD85, SMC CDG1, SMC CDJ, SMC CDJ2, and the SMC CG1 series.
