Mennekes AMAXX CEE Socket Combination - 910008

Mennekes AMAXX CEE Socket Combination - 910008
Image may vary slightly
See specifications for accurate information.
Reference: E346H
Brand: Mennekes
Mfr. Part: 910008

Mennekes AMAXX cee socket combination, gray, (wxdxh) 225x175x130mm, earth leakage circuit breaker 30 mA (standard), degree of protection (IP) IP44, supply/connection option 1 line (branch line), protection overcurrent switch, 2 peripheral earth sockets, housing plastic, handling wall mounting.

View all
Regular price
£358.34
excl VAT

In stock Ships in 40d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Description
Specifications
Downloads

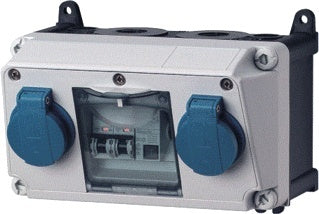

The MENNEKES receptacle combination unit AMAXX is ready and wired for installation. It features enclosure protection of Type IP 44. The enclosure is an AMAPLAST-enclosure measuring 130 x 225 mm (height x width). It can be lead-sealed and is suitable for either internal or external fixing. Its base is black and the front cover sports an electric grey color (RAL 7035). The unit has dual thread cover screws and the fusing is fitted on pull out DIN rails beneath a transparent window, which can be opened downwards and locked with a padlock. The receptacles come with an angled plugging direction.

The unit is fitted with and fused with the following:

  • 2 SCHUKO receptacles of 16A 2p+E 230V
  • 2 MCBs of 16A 1p C 10KA (Doepke)
  • 1 RCD of 25A 2p IFN= 0.03 A (Doepke)

Regarding cable entry and supply, the unit has 2 M 25 at the top (closed), 2 M 25 at the bottom (also closed), 2 M 20 at the top and at the bottom (closed). It is suitable for 1 cable up to 3 x 10 mm.
