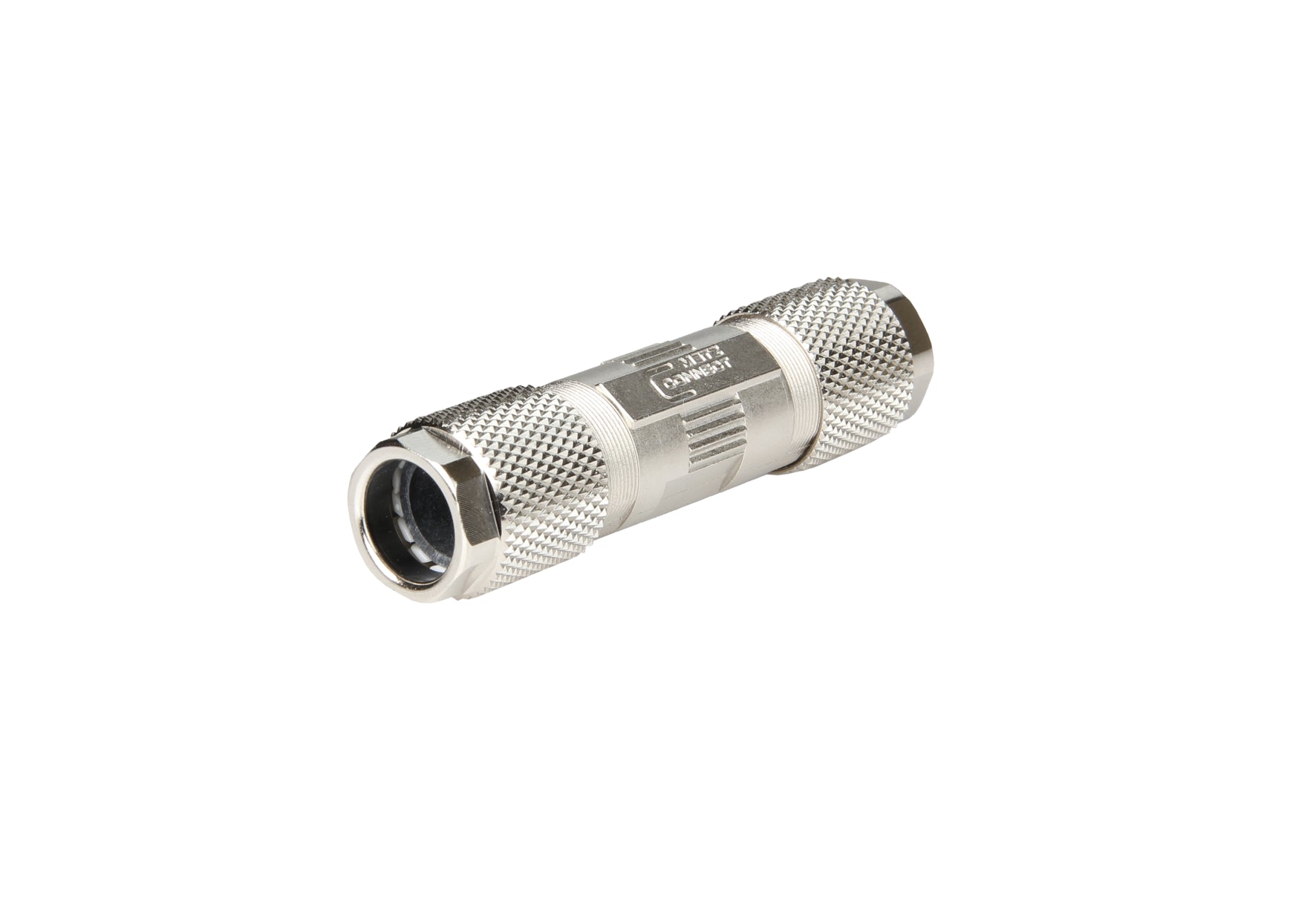

Metz Connect Class FA Cat 7A IP67 Cable Connector - 130863-02-E
Professional field assembly cable connector designed for Cat 7A copper data cables, offering Class FA compliance up to 1000 MHz per ISO/IEC 11801. Features a compact 16.8mm x 64mm zinc die-cast housing with IP67 protection. Supports AWG 26/1 to 22/1 solid and AWG 26/7 to 22/7 stranded wires, accommodating cable diameters from 5.0 to 9.7mm with integrated shield connection and strain relief.
- Regular price
- £27.84
Description
Professional field assembly cable connector designed for Cat 7A copper data cables, offering Class FA compliance up to 1000 MHz per ISO/IEC 11801. Features a compact 16.8mm x 64mm zinc die-cast housing with IP67 protection. Supports AWG 26/1 to 22/1 solid and AWG 26/7 to 22/7 stranded wires, accommodating cable diameters from 5.0 to 9.7mm with integrated shield connection and strain relief.
Pros:
- Tool-free assembly for quick installation
- IP67 protection for harsh environments
- Integrated strain relief on both ends
- Compatible with solid and stranded wire types
