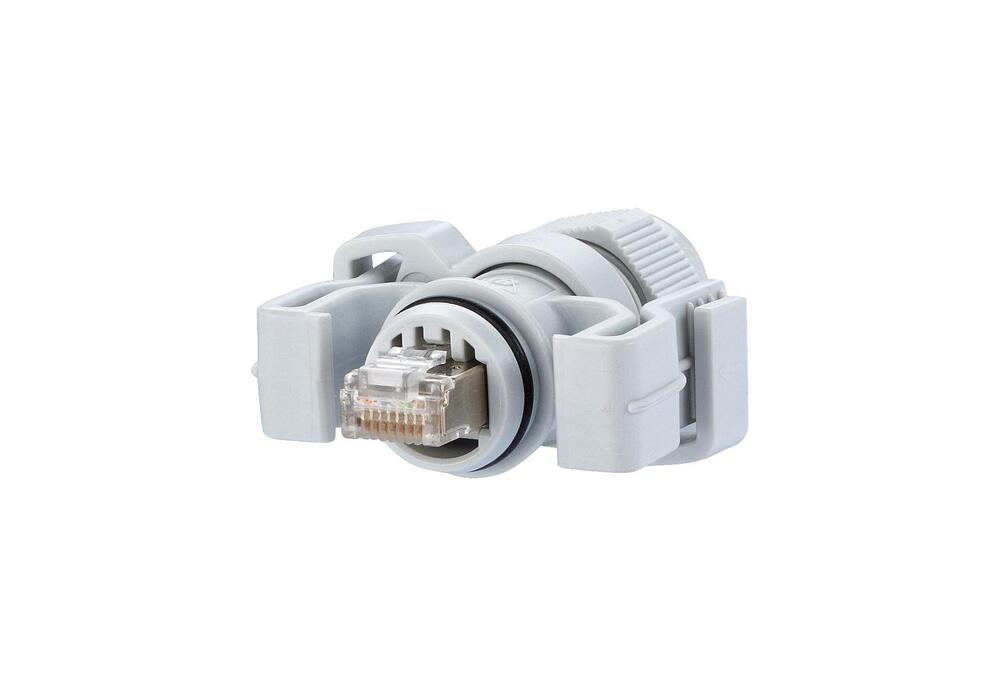

Metz Connect E-DAT Modular Connector - 130906-03-E
Cat.6 class ea connector in connector housing to iec 61076-3-106 var. 6. Compliance with class ea to iso/iec 11801 ed.2.2:2011-06, din en 50173-1:2011-09. Suitable for 10 gbit ethernet(ieee 802.3an) and remote powering(poe, poe plus and upoe) and hdbaset. Complies with ingress protection ip67 when plugged in. Awg 27/7 - 24/7 and awg 24/1 connection possible. Solid copper wire diameter from 0.36 to 0.51 mm. Stranded copper wire diameter from 0.46 to 0.61 mm. Conductor diameter from 0.85 to 1.05 mm. Cable jacket diameter 5.5 to 6.2 mm can be connected. Large 360° shield contact.
- Regular price
- £15.92
Description
Cat.6 class ea connector in connector housing to iec 61076-3-106 var. 6. Compliance with class ea to iso/iec 11801 ed.2.2:2011-06, din en 50173-1:2011-09. Suitable for 10 gbit ethernet(ieee 802.3an) and remote powering(poe, poe plus and upoe) and hdbaset. Complies with ingress protection ip67 when plugged in. Awg 27/7 - 24/7 and awg 24/1 connection possible. Solid copper wire diameter from 0.36 to 0.51 mm. Stranded copper wire diameter from 0.46 to 0.61 mm. Conductor diameter from 0.85 to 1.05 mm. Cable jacket diameter 5.5 to 6.2 mm can be connected. Large 360° shield contact.
