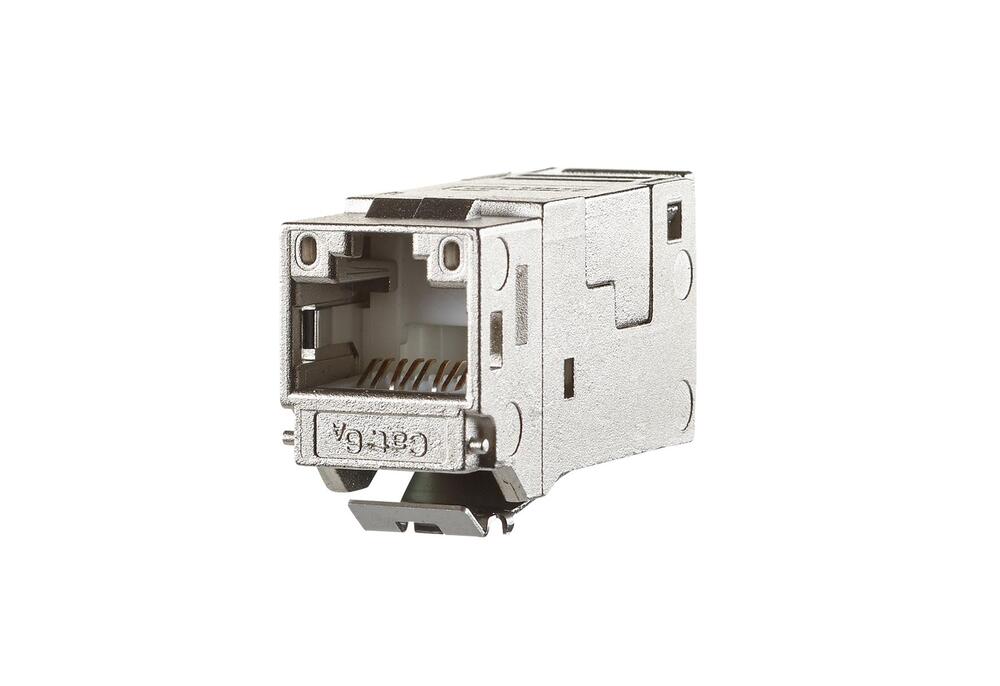

Metz Connect E-DAT Modular Connector - 130910KI
Modular termination unit cat.6a, rj45. Component testing for cat.6a to iso/iec 11801 ed.2.2:2011-06, din en 50173-1:2011-09, tia/eia-568-c.2 (2009-08) and iec 60603-7-51 ed.1 (12/2008), certified to ghmt. Compliance with class ea to iso/iec 11801. Ed.2.2:2011-06, din en 50173-1:2011-09. Tested: link up to 500 mhz. Suitable for 10 gbit ethernet (ieee 802.3an), remote powering (poe, poe plus, upoe and 4ppoe) and hdbaset. Easy to install connection of 2 to 4 pair data cables.
- Regular price
- £8.70
Description
The Modular Termination Unit Cat.6, A, RJ45component is tested for Cat.6, A according to ISO/IEC 11801 Ed.2.2, DIN EN 50173-1, TIA/EIA-568-C.2 and IEC 60603-7-51 Ed.1. It is certified to GHMT compliance with class E, A according to ISO/IEC 11801 Ed.2.2 and DIN EN 50173-1. It's tested for links up to 500 MHz and is suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT.
The unit has an easy to install connection for 2 to 4 pair data cables, AWG 26/1 to 22/1 (solid wire) and stranded wires with 7 copper conductors AWG 26/7 to 22/7 to insulation displacement connectors (IDC). The conductor assignment is marked to T568A and T568B.
The unit features easy and fast insertion of wire pairs in E-DAT module stuffer cap. It has a module housing made of refined zinc die-casting and can be mounted without special tools. It provides strain relief with cable tie at the module.
The mounting version is Keystone with a cable feed of 180 degrees. The delivery is in a 10-piece set and they are available separately.
