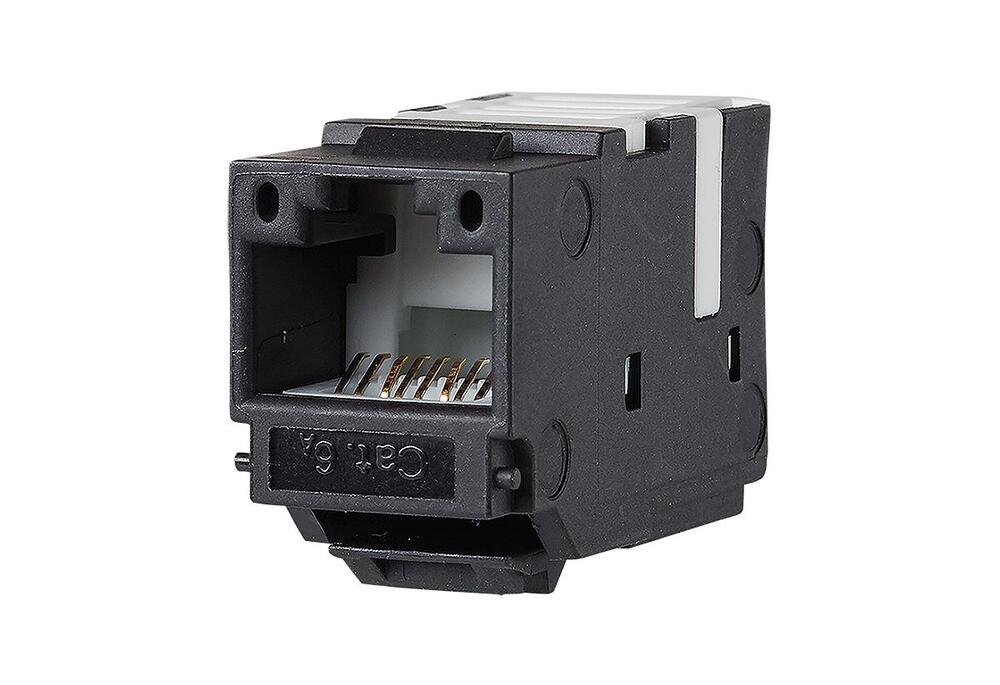

Metz Connect Modular Connector - 130A11-29KI [2 Pieces]
![Metz Connect Modular Connector - 130A11-29KI [2 Pieces]](http://tameson.co.uk/cdn/shop/files/e376r-00.44f3e04f.jpg?v=1730590910)
![Metz Connect Modular Connector - 130A11-29KI [2 Pieces]](http://tameson.co.uk/cdn/shop/files/e376r-00.44f3e04f.jpg?height=232&v=1730590910&width=232)
Unshielded modular termination unit cat.6a, rj45. Component testing for cat.6a to iso/iec 11801 ed.2.2:2011-06, din en 50173-1:2011-09, tia/eia-568-c.2 (2009-08) and iec 60603-7-41 ed.1 (12/2008), certified by ghmt. Component testing for cat.6a to tia/eia-568-c.2 and iec 60512-27-100, certified by ghmt. Compliance with class ea to iso/iec 11801 ed.2.2:2011-06, din en 50173-1:2011-09, certified by ghmt. Tested: component up to 600 mhz, link up to 800 mhz. Suitable for 10 gbit ethernet (ieee 802.3an), remote powering (poe, poe plus, upoe and 4ppoe) and hdbaset.
Contains 2 pieces
- Regular price
- £7.96
Description
Unshielded modular termination unit Cat.6, A, RJ45component. Tested for Cat.6, A to ISO/IEC 11801 Ed.2.2, DIN EN 50173-1 and TIA/EIA-568-C.2 and IEC 60603-7-41 Ed.1, certified by GHMTcomponent. Tested for Cat.6A to TIA/EIA-568-C.2 and IEC 60512-27-100, certified by GHMT, showing compliance with class E, A to ISO/IEC 11801 Ed.2.2, DIN EN 50173-1, certified by GHMT. Component tested up to 600 MHz, link up to 800 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT.
Easy to install connection of 2 to 4 pair data cables AWG 26/1 to 22/1 (solid wire) and stranded wires with 7 Cu strands AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC). Conductor assignment T568A and T568B are marked, easy and rapid insertion of the wire pairs into the UTP stuffer cap.
The unit has a plastic module housing and can be mounted without special tools. Strain relief possible with cable ties at the module, mounting of colored dust protection covers to the module is possible. The design is Keystone, cable feed 180°. The options available are white and black.
