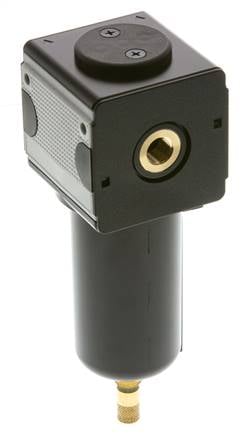

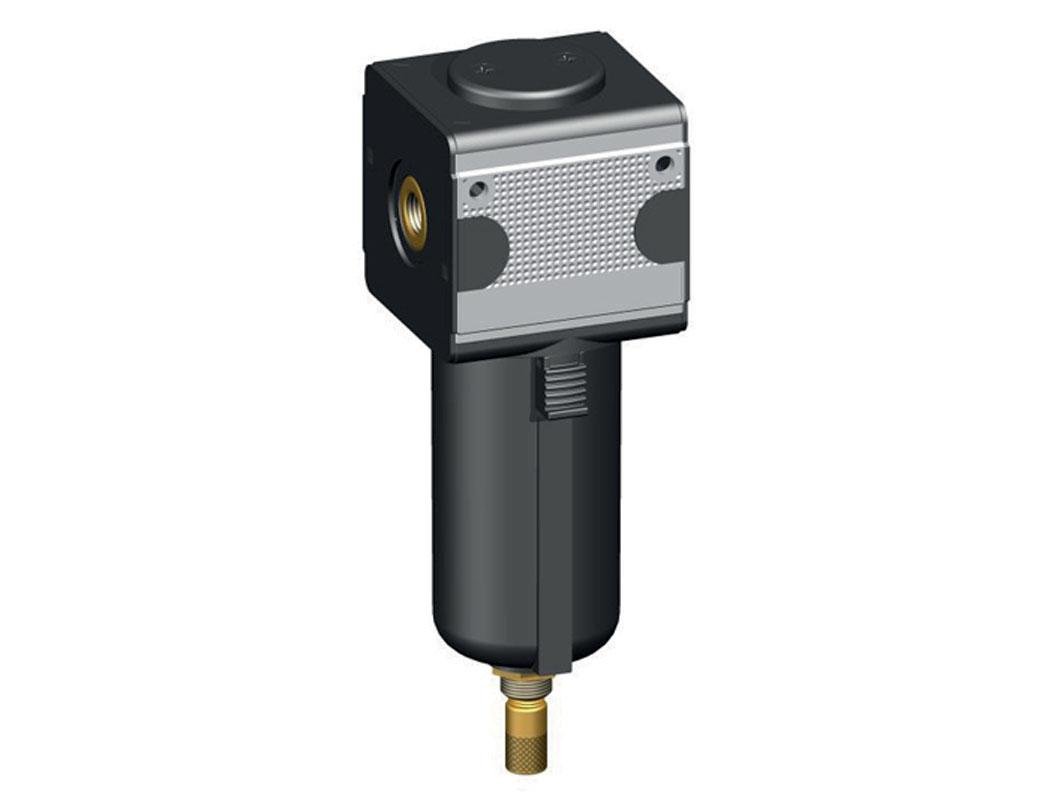

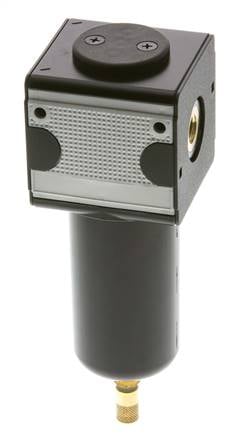

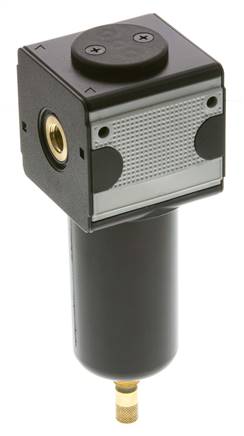

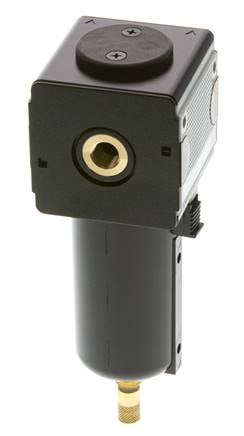

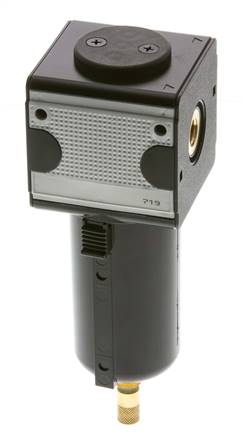

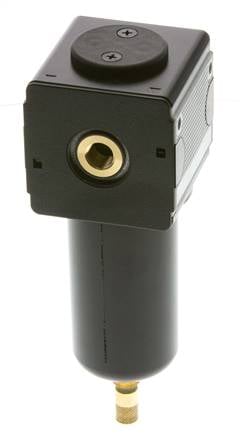

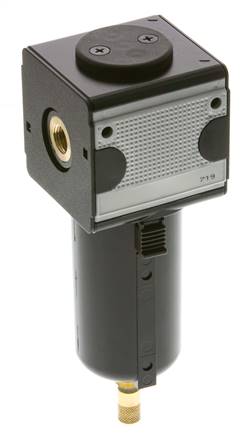

Microfilter 0.01microns G1/4'' 670 l/min Auto Metal Multifix 2
This G 1/4 inch pneumatic filter filters out contaminants larger than 0.01 microns to ensure clean air. The max flow rate is 670 l/min. The auto drain valve will open and close automatically based on residue level. Suitable for a 20.0 bar (290 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). The filter bowl capacity is 50 cm3.
- Regular price
- £212.93
Description
The filter removes water, dirt and other harmful particles larger than 0.01 microns. The filter removes water, dirt and other harmful particles for your air system. This model has G 1/4 inch ports. The maximum flow rate is 670 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance.
The maximum input pressure is 20.0 bar (290 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). It has an auto condensate drain. The housing material is made out of zinc die-cast and the filter has a bowl made of metal. The use of microfilters is required where a high level of compressed air purity is required. The finest particles (> 0.01 microns) and oil mist are separated here. A prefilter should be connected upstream to increase the service life. In order to extend the life of activated carbon filters, microfilters and prefilters are used.
Mounting brackets need to be ordered separately.
