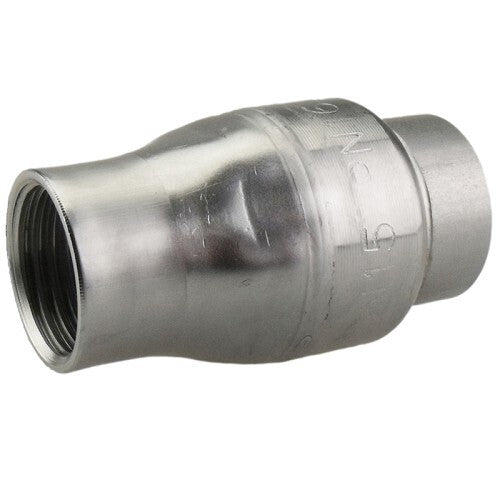

G3/4'' check valve - stainless steel - FKM

Notice: This product is discontinued

Discontinued
G3/4'' check valve - stainless steel - FKM
G3/4'' check valve - stainless steel - FKM
Reference: MRVA06-RVS
Brand: Tameson

G3/4 inch check valve (brand Tameson) made of stainless steel with FKM seal. For a maximum pressure of 16 bar and temperature range of -25 to 90°C.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

G3/4" Stainless steel check valve with parallel threads and FKM sealing. The differential pressure across the non-return valve must be higher than 0.03 bar. The valve has a light spring to close the valve. The maximum operating pressure is 16 bar and the valve is suitable for temperatures ranging from -25 up to 90°C.

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
3/4 inch
Connection type
Inner thread cylindrical BSPP-G
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
FKM (FPM)
Recommended for
Water (up to 60°C), Sea water, Combustible gases, Lubricant, Fuel, Oil, Strong acids and bases, Dilute acids and bases, Carbon dioxide, Air
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-25
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
90
Min pressure difference (bar)
Minimum required differential pressure for proper operation.
0.03
Valve bore (mm)
16
Valve shape
The shape of the housing.
Inline spring closed
Model
Straight
Surface protection
The type of surface protection of the component.
Untreated
Article compression class
PN 16
