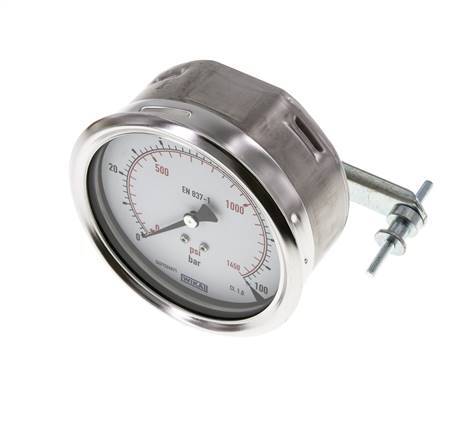

0..100 Bar (0..1450 psi) Panel Mount Pressure Gauge Steel/Brass 100 mm Class 1.0 (Bracket)

0..100 Bar (0..1450 psi) Panel Mount Pressure Gauge Steel/Brass 100 mm Class 1.0 (Bracket)
0..100 Bar (0..1450 psi) Panel Mount Pressure Gauge Steel/Brass 100 mm Class 1.0 (Bracket)
0..100 Bar (0..1450 psi) Panel Mount Pressure Gauge Steel/Brass 100 mm Class 1.0 (Bracket)
0..100 Bar (0..1450 psi) Panel Mount Pressure Gauge Steel/Brass 100 mm Class 1.0 (Bracket)
0..100 Bar (0..1450 psi) Panel Mount Pressure Gauge Steel/Brass 100 mm Class 1.0 (Bracket)
0..100 Bar (0..1450 psi) Panel Mount Pressure Gauge Steel/Brass 100 mm Class 1.0 (Bracket)
0..100 Bar (0..1450 psi) Panel Mount Pressure Gauge Steel/Brass 100 mm Class 1.0 (Bracket)
0..100 Bar (0..1450 psi) Panel Mount Pressure Gauge Steel/Brass 100 mm Class 1.0 (Bracket)
Image may vary slightly
See specifications for accurate information.
Reference: MW0100100SH-TP
Brand: WIKA

This pressure gauge has a G 1/2 inch male connection point located in the rear of the manometer and has a pressure measurement range of 0 to 100 bar (0..1450 psi). The scale division is 2 bar and the steel gauge housing has a diameter of 100 mm. It has an accuracy of ± 1 %. The measurement system, indicator and G 1/2 inch male connection point are made of copper alloy. Suitable for medium temperature from -20 to 80 °C and is IP42 certified. It can be mounted using the two threaded rods.

View all
Regular price
£143.32
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This pressure gauge (manufacterer WIKA) is designed for gas and liquid media and has a pressure measurement range of 0 to 100 bar (0..1450 psi). The gauge has a measurement scale in bar with scale division of 2 bar. It has an accuracy class of 1 % (maximum deviation). The gauge body is made of steel and the connection and indicator are made of copper alloy. The cabinet has a diameter of 100 mm. Please make sure that your medium is compatible with copper alloy. The male G 1/2 inch connection point is located in the rear of the manometer. It is suitable for medium temperature from -20 to 80 °C. It can be mounted to a panel by using the two bolts. Please check the datasheet for dimensions of the mounting bracket. As a rule of thumb, please select a pressure gauge that has a max pressure rating of at least 25% higher than the maximum operating pressure.

Pros:

  • It has a mounting bracket which makes is suitable for mounting to a panel
  • Cabinet has a diameter of 100 mm and a scale with a division of 2 bar, which makes it possible to read the values accurately.

Cons:

  • Only available with a copper alloy measurement system indicator, which is not suitable for aggresive media.

MW-TP series

The MW-TP pressure gauge series from Wika is capable of measuring pressure from -1 to 400 bar with scale division from 0.02 to 20 bar, depending on the model. The copper alloy male threaded connection point is located in the rear of the manometer with size options of 1/8 or 1/4 inch. The steel gauge is IP42 certified and can handle, depending on the model, a temperature range of -20 to 80°C. Use the two bolts for securing it to a panel.

A calibration certificate is not available.
