Reference: NLB-018
Brand: Tameson

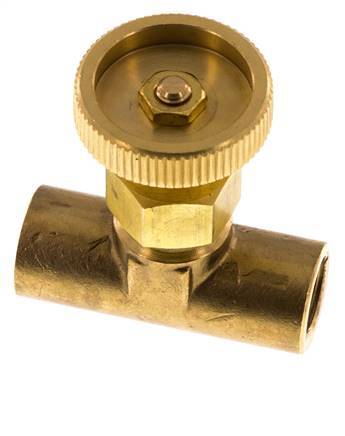

Compact brass needle valve with G 1/8" threads. This valve can be used as a reliable shut-off valve, or to accurately control (relative low) flow rates of clean gases or fluids. The valve has a nominal internal diameter of 4 mm. The seals are made of NBR. The max pressure is 15 bar and the allowable temperature range is from -10 to max. 60°C.

View all
Regular price
£26.54
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 117 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

The NLB-018 is a compact 2-way brass needle valve with G 1/8" threads. This valve can be used as a reliable shut-off valve, or to accurately control (relative low) flow rates of clean gases or fluids. The valve has a nominal internal diameter of 4 mm. The housing is made of brass and the seals are made of NBR. The max pressure is 15 bar and the allowable temperature range is from to max. 15°C.

Advantages

  • Smooth and accurate flow control
  • Reliable leak tight shut off
  • Very compact design
  • Suitable for a wide variety of media and applications

Disadvantages

  • Only clean fluids or gases
  • Relatively high pressure loss compared with e.g. ball valves

NLB series

The NLB series 2-way brass needle valves are designed for accurate control of flow rates for fluids and gases and provides a positive leak tight shut-off. With a wide variety of port sizes from G 1/8" up to G 2", pressure ratings up to 100 bar and temperature ranging from -30°C to 110°C, the NLB needle valves offer a solution for a wide range of applications.
