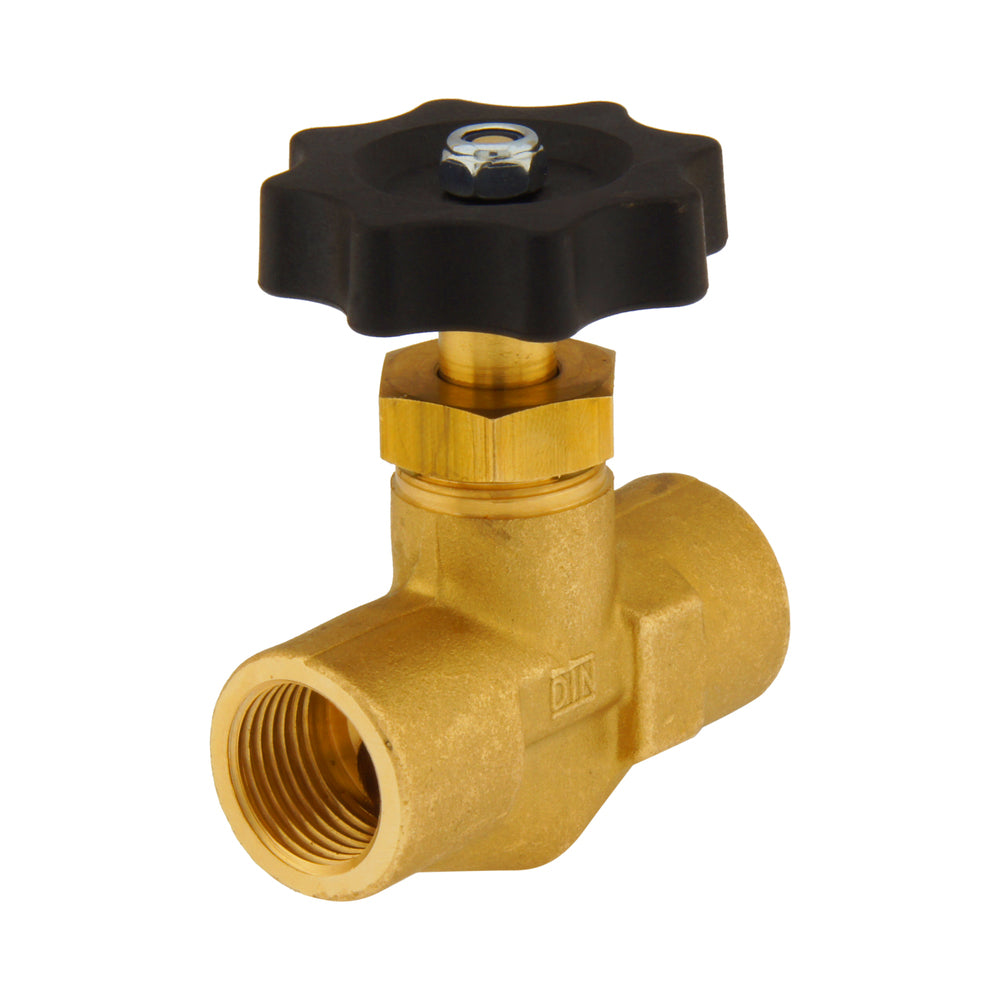

G1'' Brass Needle Valve PTFE 100 bar - NLB

G1'' Brass Needle Valve PTFE 100 bar - NLB
G1'' Brass Needle Valve PTFE 100 bar - NLB
G1'' Brass Needle Valve PTFE 100 bar - NLB
G1'' Brass Needle Valve PTFE 100 bar - NLB
G1'' Brass Needle Valve PTFE 100 bar - NLB
G1'' Brass Needle Valve PTFE 100 bar - NLB
G1'' Brass Needle Valve PTFE 100 bar - NLB
G1'' Brass Needle Valve PTFE 100 bar - NLB
Reference: NLB-100
Brand: Tameson

Compact brass needle valve with G 1" threads. This valve can be used as a reliable shut-off valve, or to accurately control (relative low) flow rates of clean gases or fluids. The valve has a nominal internal diameter of 11 mm. The seals are made of PTFE. The max pressure is 100 bar and the allowable temperature range is from -30 to max. 110°C.

View all
Regular price
£46.19
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 43 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

The NLB-100 is a compact 2-way brass needle valve with G 1" threads. This valve can be used as a reliable shut-off valve, or to accurately control (relative low) flow rates of clean gases or fluids. The valve has a nominal internal diameter of 11 mm. The housing is made of brass and the seals are made of PTFE. The max pressure is 100 bar and the allowable temperature range is from -30 to max. 110°C.

Advantages

  • Smooth and accurate flow control
  • Reliable leak tight shut off
  • Very compact design
  • Suitable for a wide variety of media and applications

Disadvantages

  • Only clean fluids or gases
  • Relatively high pressure loss compared with e.g. ball valves

NLB series

The NLB series 2-way brass needle valves are designed for accurate control of flow rates for fluids and gases and provides a positive leak tight shut-off. With a wide variety of port sizes from G 1/8" up to G 2", pressure ratings up to 100 bar and temperature ranging from -30°C to 110°C, the NLB needle valves offer a solution for a wide range of applications.
