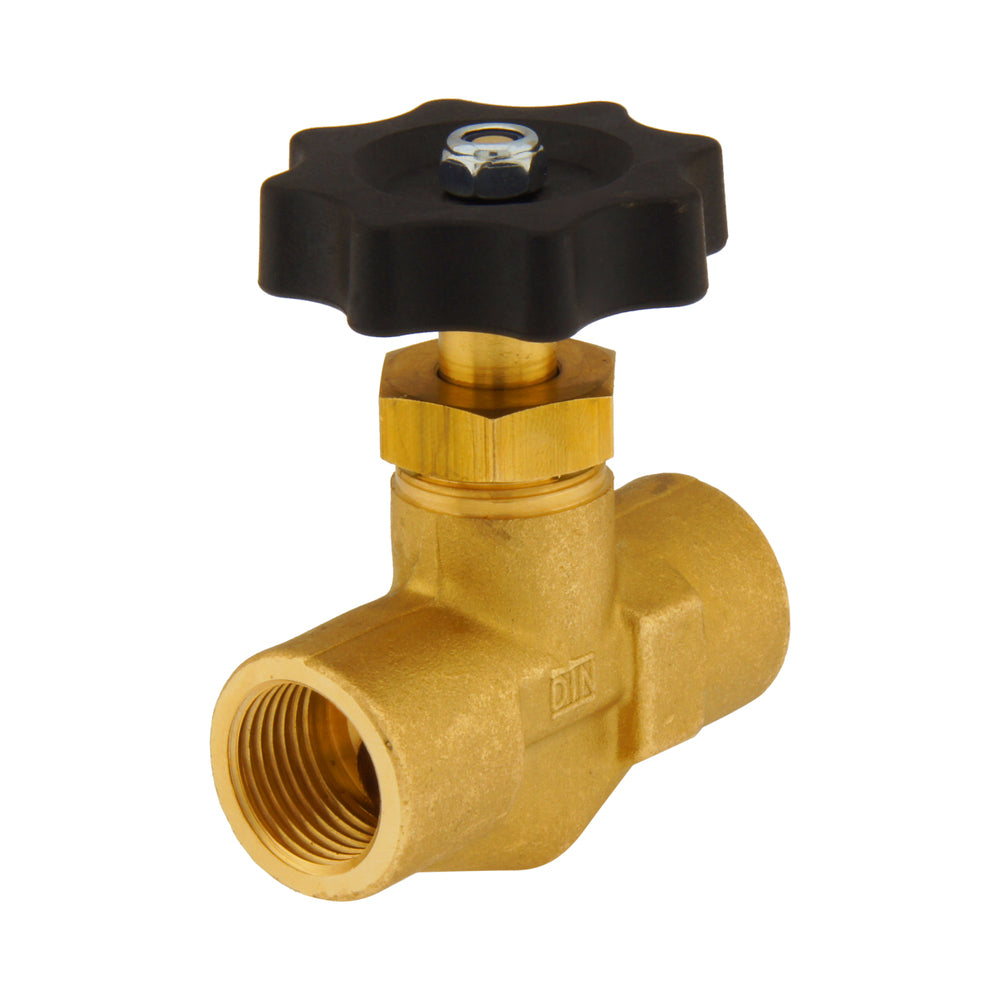

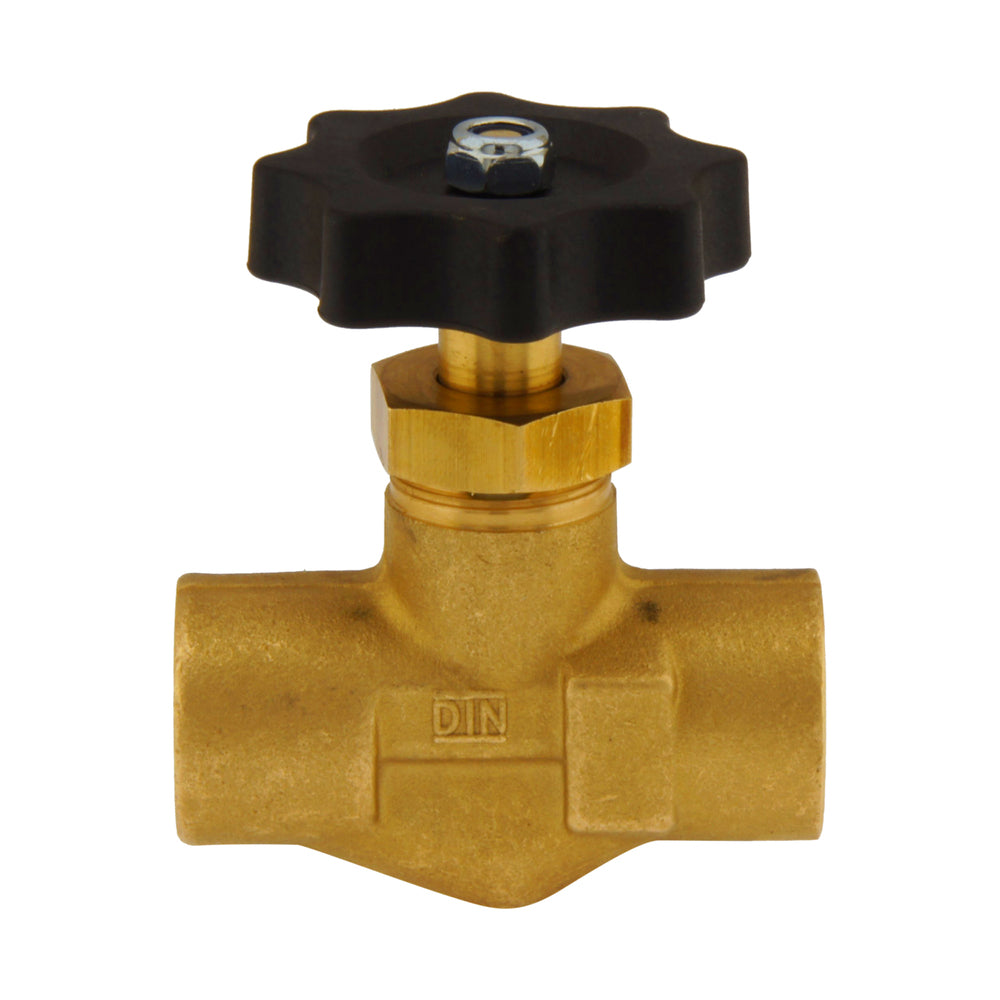

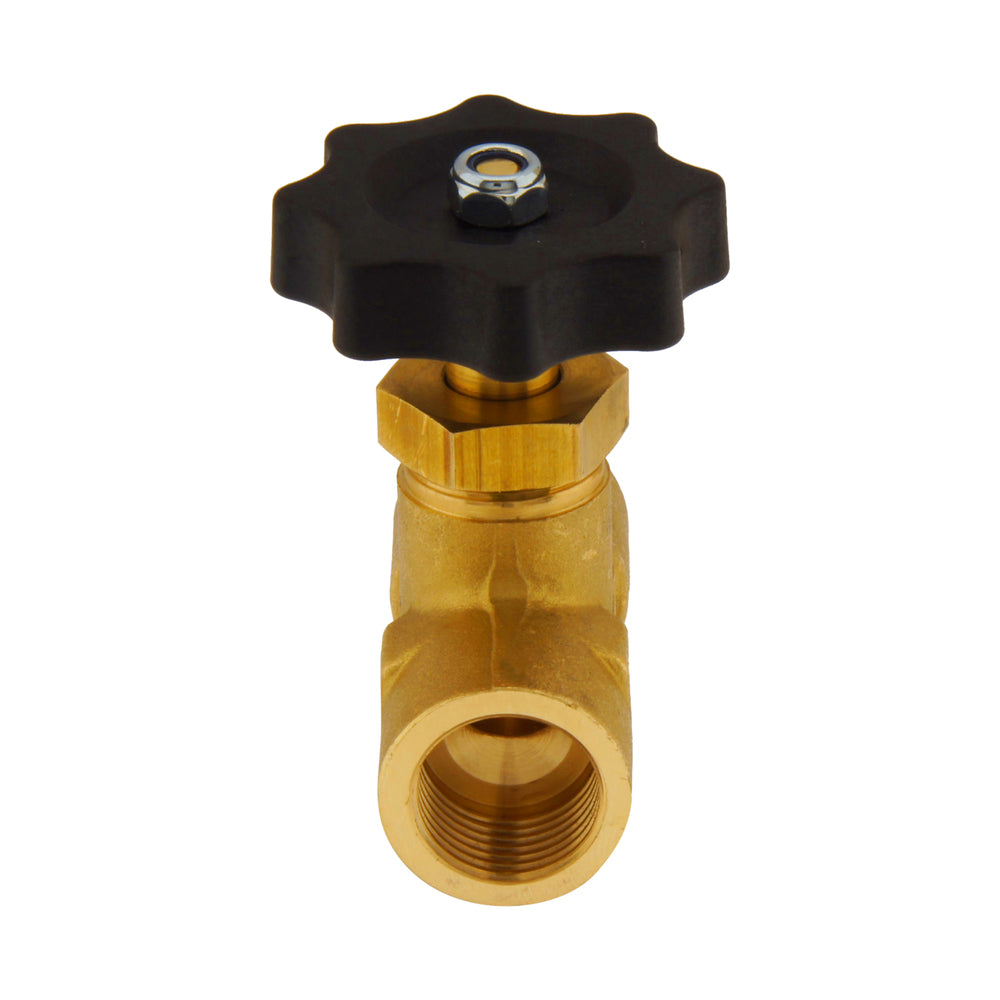

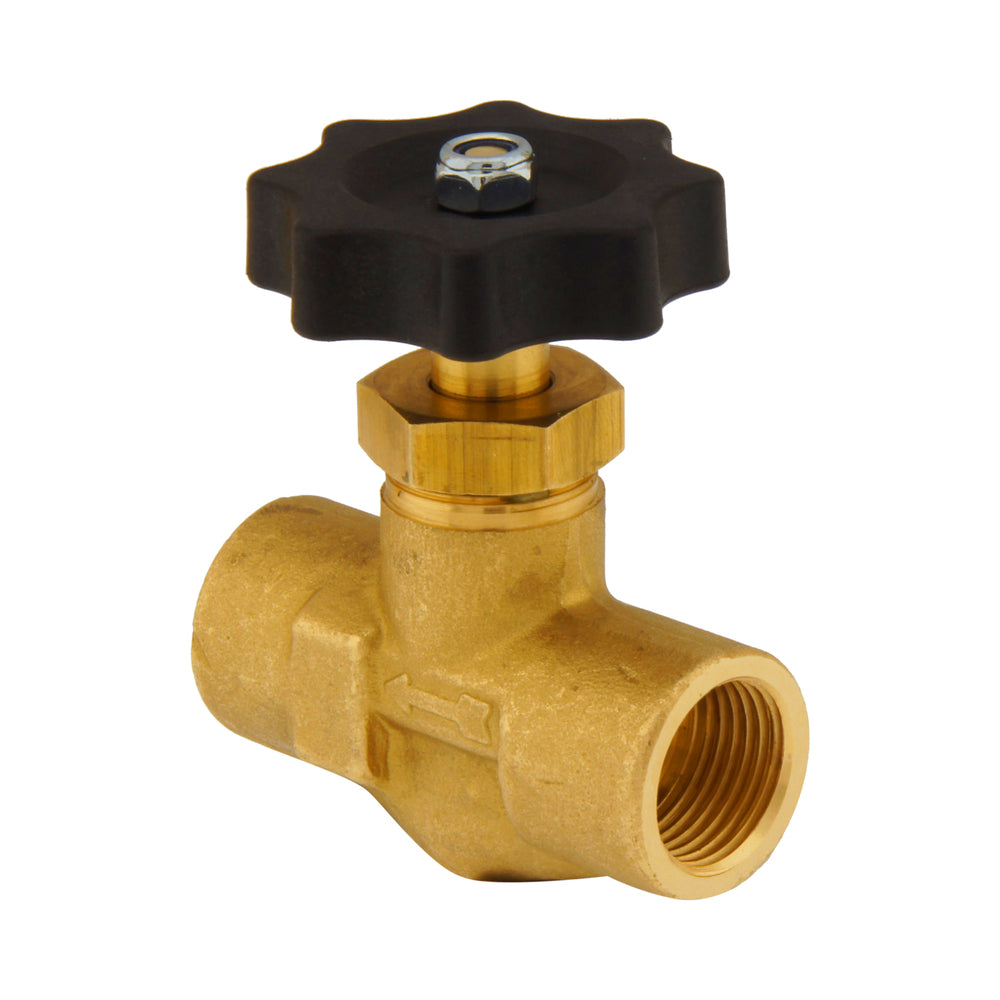

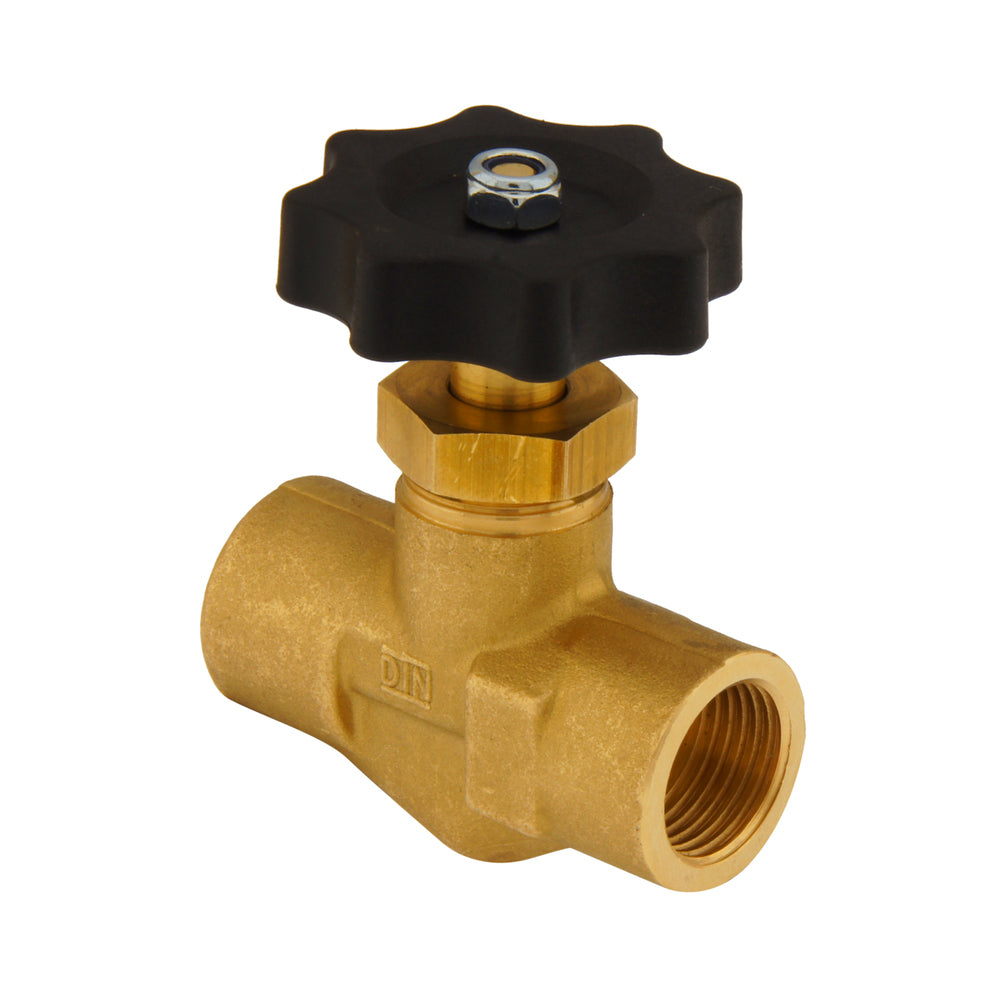

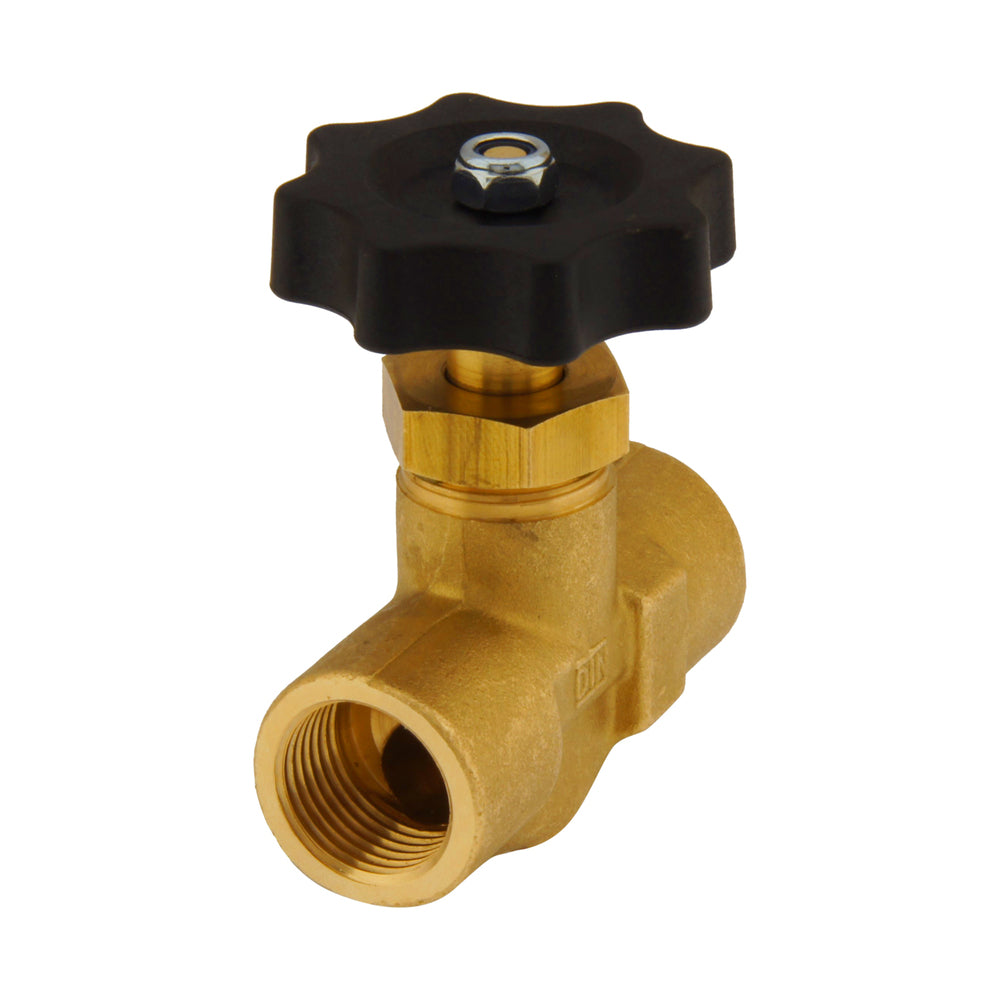

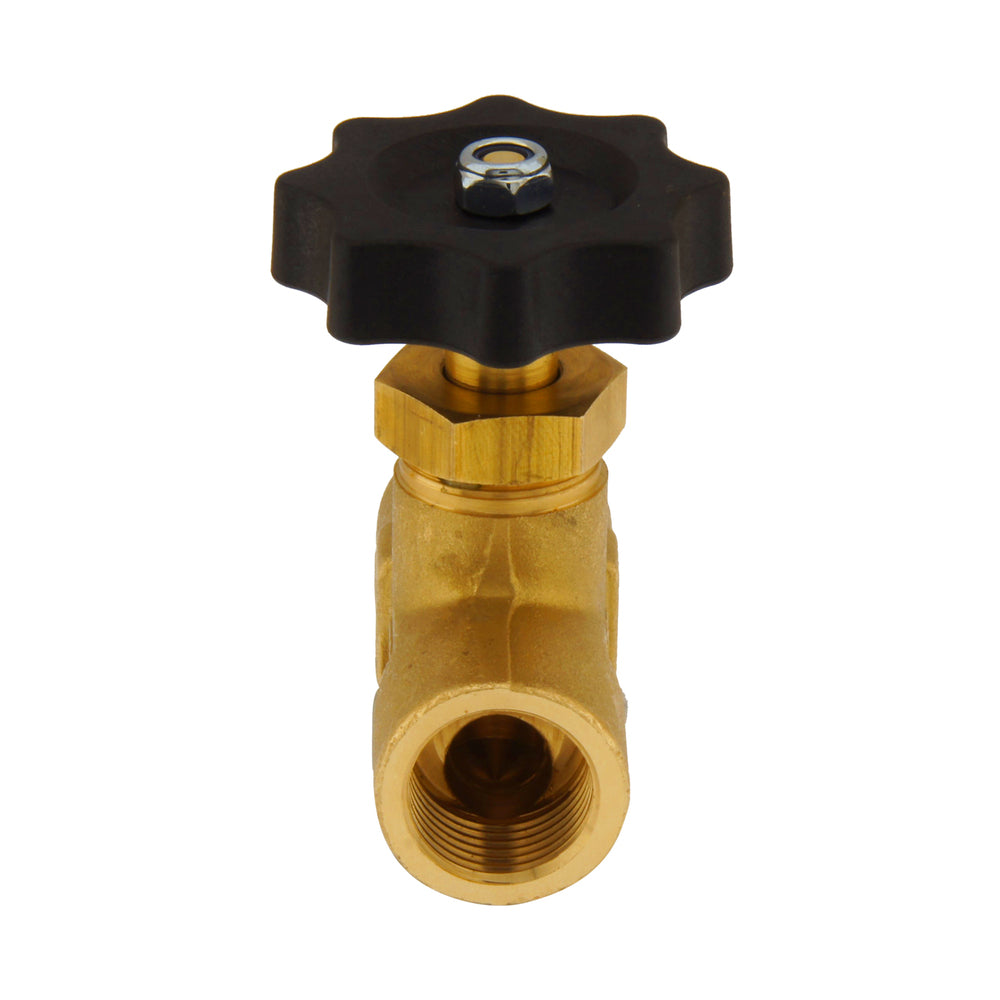

G1-1/2'' Brass Needle Valve PTFE 100 bar - NLB
Compact brass needle valve with G 1-1/2" threads. This valve can be used as a reliable shut-off valve, or to accurately control (relative low) flow rates of clean gases or fluids. The valve has a nominal internal diameter of 15 mm. The seals are made of PTFE. The max pressure is 100 bar and the allowable temperature range is from -30 to max. 110°C.
- Regular price
- £158.28
Description
The NLB-112 is a compact 2-way brass needle valve with G 1-1/2" threads. This valve can be used as a reliable shut-off valve, or to accurately control (relative low) flow rates of clean gases or fluids. The valve has a nominal internal diameter of 15 mm. The housing is made of brass and the seals are made of PTFE. The max pressure is 100 bar and the allowable temperature range is from -30 to max. 110°C.
Advantages
- Smooth and accurate flow control
- Reliable leak tight shut off
- Very compact design
- Suitable for a wide variety of media and applications
Disadvantages
- Only clean fluids or gases
- Relatively high pressure loss compared with e.g. ball valves
NLB series
The NLB series 2-way brass needle valves are designed for accurate control of flow rates for fluids and gases and provides a positive leak tight shut-off. With a wide variety of port sizes from G 1/8" up to G 2", pressure ratings up to 100 bar and temperature ranging from -30°C to 110°C, the NLB needle valves offer a solution for a wide range of applications.
