Reference: E2KPK
Brand: OBO
Mfr. Part: 5094765

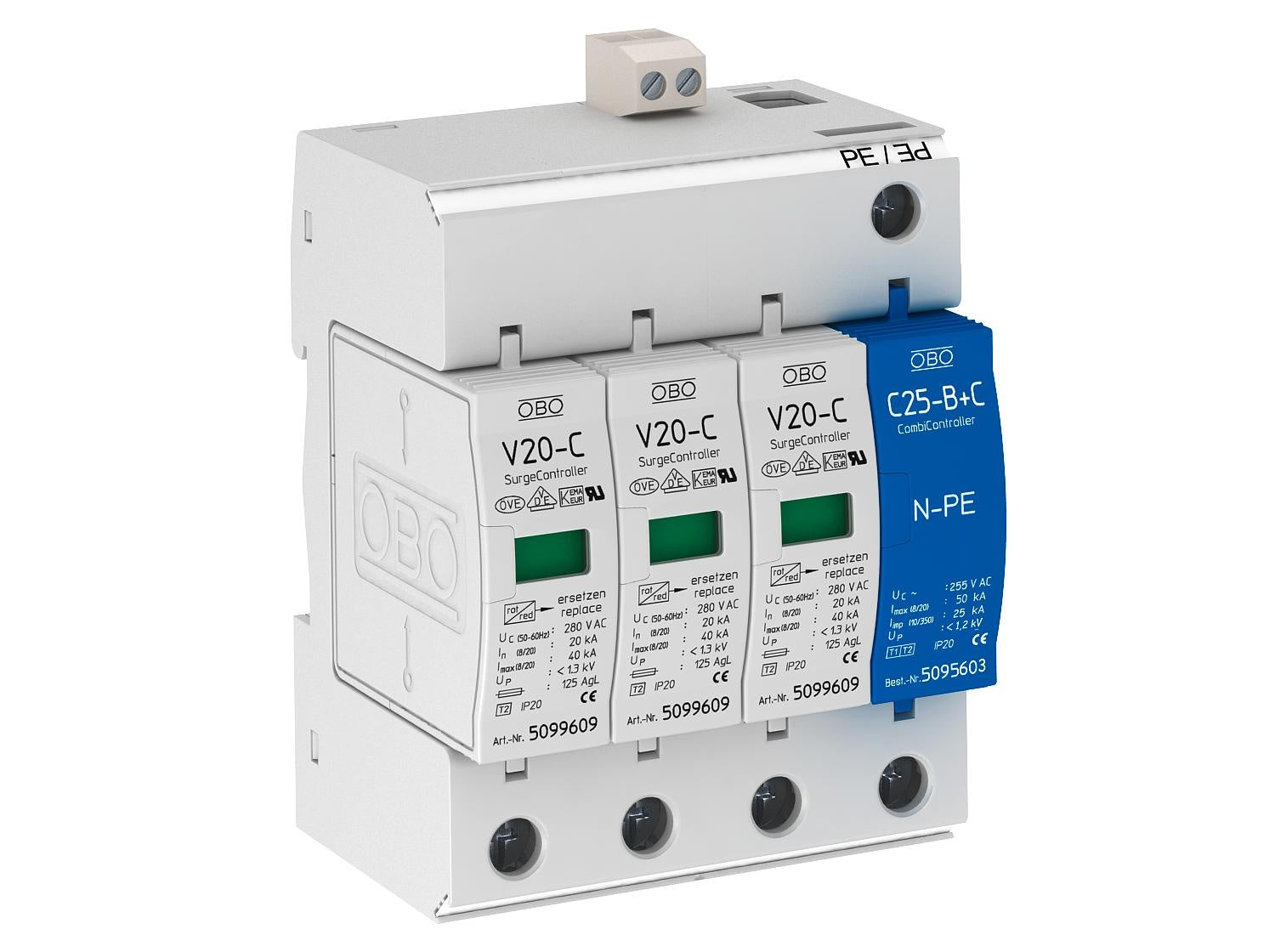

Obo V20 280 mains surge protector, gray, pole design 3+N/PE, protection class 2(c), mains form TT +TN-S, with signaling contact, DIN rail 35mm, DIN rail module design, rated voltage 280V, max. Continuous voltage AC 280V, degree of protection (IP) IP20, DIN size 4 TE (Grid Size).

View all
£401.86
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Expected delivery in 5 - 7 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

Obo V20 280 mains surge protector, gray, pole design 3+N/PE, protection class 2(c), mains form TT +TN-S, with signaling contact, DIN rail 35mm, DIN rail module design, rated voltage 280V, max. Continuous voltage AC 280V, degree of protection (IP) IP20, DIN size 4 TE (Grid Size).

Specifications

Nominal discharge surge current (8/20)
20 kA
Max. discharge surge current (8/20) (kA)
40
Nominal voltage AC
230 V
Max. continuous voltage AC (V)
280
Voltage protection level (kV)
1.3
Integrated backup fuse
No
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²)
35
Max. conductor cross section flexible (fine-strand)
25 mm²
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)i
IP20
