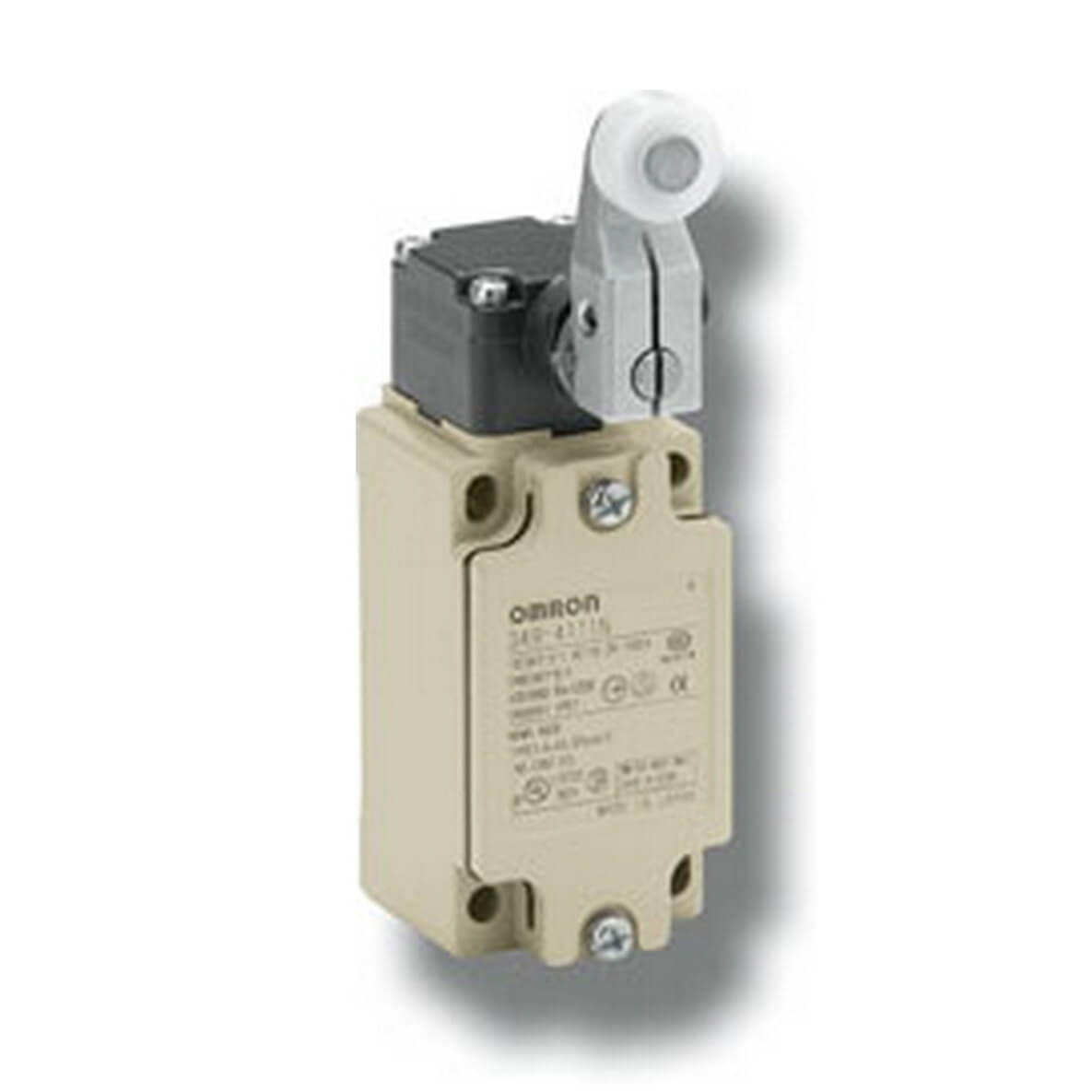

Omron SAFETY PRODUCTS Limit Switch - D4B4A11N

Omron SAFETY PRODUCTS Limit Switch - D4B4A11N
Omron SAFETY PRODUCTS Limit Switch - D4B4A11N
Image may vary slightly
See specifications for accurate information.
Reference: E28YT
Brand: Omron
Mfr. Part: D4BN4015B

D4b-n series general purpose snap action. The d4b-n safety limit switch from omron has snap-action contacts with a certified direct opening mechanism, n/c contacts only, to ensure safe operation should a fault occur. The switch is housed in an aluminium die-cast enclosure and has the head seal structure strengthened to provide ip67 protection. Equipped with a mechanism that indicates the applicable operating zone, as well as push-button switching to control left and right motion.

View all
£81.65
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

D4b-n series general purpose snap action. The d4b-n safety limit switch from omron has snap-action contacts with a certified direct opening mechanism, n/c contacts only, to ensure safe operation should a fault occur. The switch is housed in an aluminium die-cast enclosure and has the head seal structure strengthened to provide ip67 protection. Equipped with a mechanism that indicates the applicable operating zone, as well as push-button switching to control left and right motion.

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Width sensor (mm)
40
Diameter sensor (mm)
17.5
Height of sensor (mm)
131.3
Length of sensor (mm)
62
Rated operation current Ie at AC-15, 125 V (A)
10
Rated operation current Ie at AC-15, 230 V (A)
10
Rated operation current Ie at DC-13, 24 V (A)
6
Rated operation current Ie at DC-13, 125 V (A)
0.8
Rated operation current Ie at DC-13, 230 V (A)
0.4
Switching function
Slow-action switch
Output electronic
No
Forced opening
Yes
Number of safety auxiliary contacts
0
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Metal
Coating housing
Other
Type of control element
Roller lever
Alignment of the control element
Other
Electrical connection
Type of electric connection.
Cable entry metrical
Status indication
No
Suitable for safety functions
Yes
Explosion safety gas
None
Explosion safety dust
None
Ambient temperature during operating (°C)
-40 °C to 80 °C
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
Degree of protection (NEMA)
6P
