Reference: E38WF
Brand: Opple
Mfr. Part: 705000021500

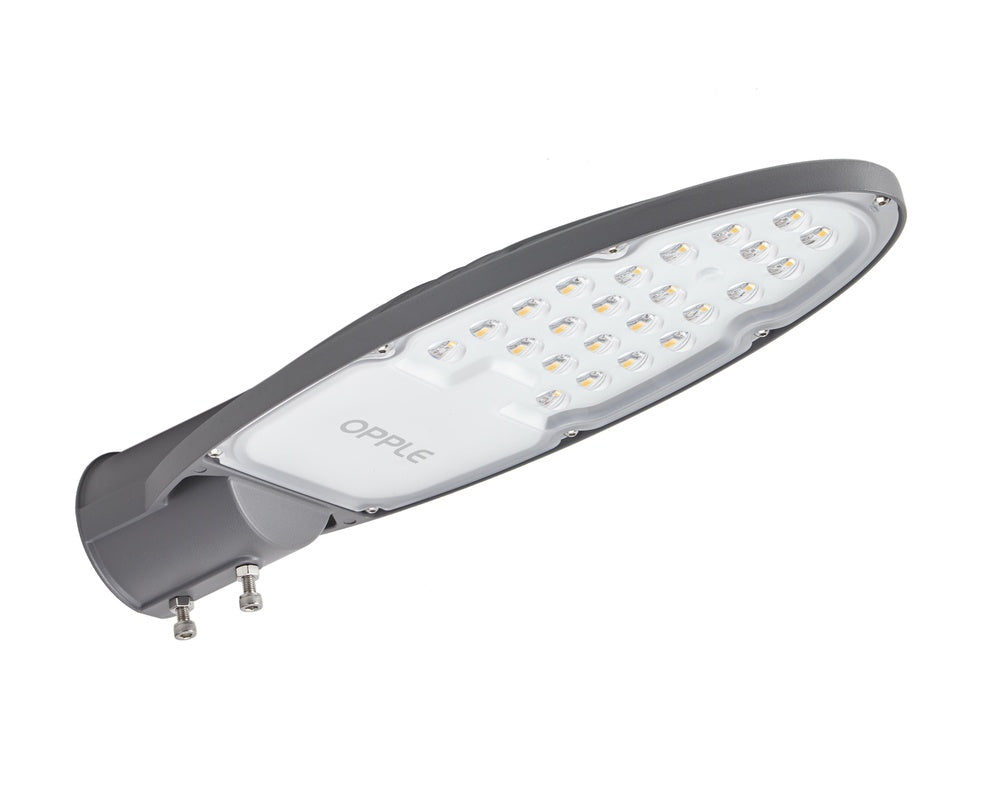

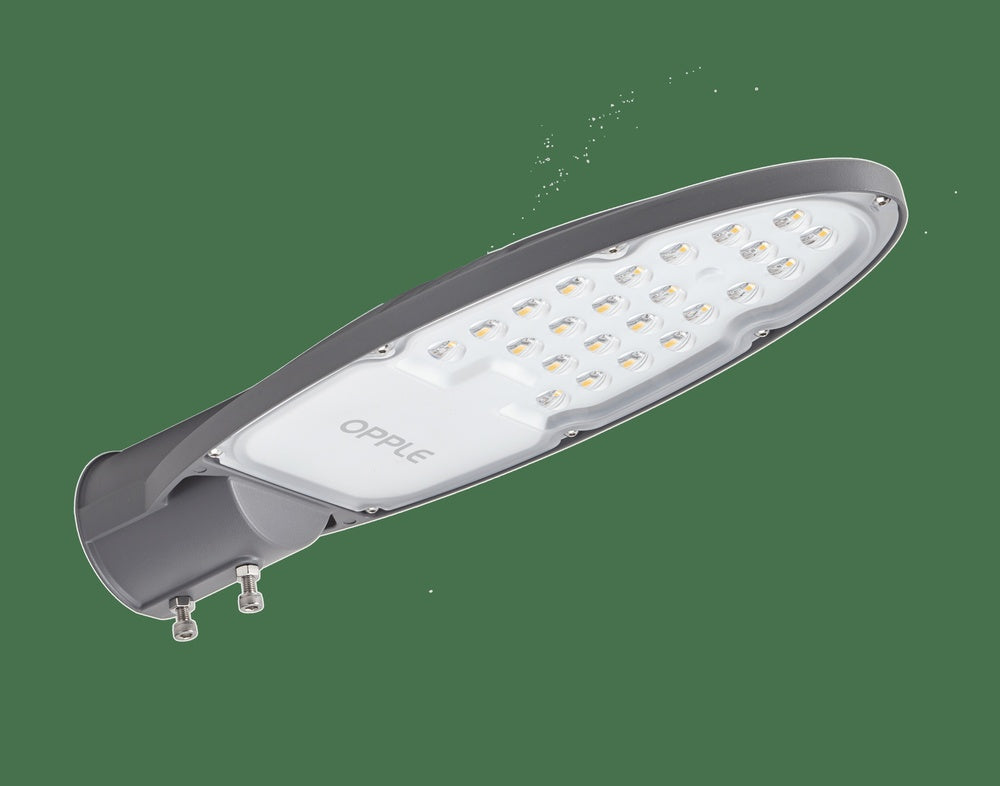

Opple LED Streetlight EcoMax street and plaza lighting fixture, length 389mm, effective luminous flux according to IEC 2500lm, specific luminous flux fixture 125lm/W, temperature 4000K, light color white, system power 20W, push-on, housing gray, suitable for top size 42 - 60mm, impact resistance IK08.

View all
Note: product cannot be returned
£169.18
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 13 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Opple LED Streetlight EcoMax street and plaza lighting fixture, length 389mm, effective luminous flux according to IEC 2500lm, specific luminous flux fixture 125lm/W, temperature 4000K, light color white, system power 20W, push-on, housing gray, suitable for top size 42 - 60mm, impact resistance IK08.

Downloads

Product datasheet (EN)
pdf
Download
Product datasheet (EN)
pdf
Download

Specifications

Mounting method
Side entry
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
1
Lamp holder
None
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Surface protection
The type of surface protection of the component.
Powder coating
Colour housing
Grey
Material cover
Plastic, transparent
Voltage-type
AC/DC
Nominal voltage (V)
220 V to 240 V
LED nominal current at constant current (mA)
390 mA to 390 mA
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Focal lens
Colour consistency (McAdam ellipse)
SDCM4
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L70/B50 at 25 °C (h)
70000
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP66
Adjustable optics
No
Suitable for spigot size (mm)
42 mm to 60 mm
Impact strength
IK08
Protection class
I
Rated ambient temperature according to IEC62722-2-1 (°C)
-40 °C to 50 °C
Remote control
None
With radio control
No
Constant light output (CLO)
No
With light regulation program control
No
With connection cable
Yes
Cable length (m)
1
Max. system power (W)
20
Rated luminous flux according to IEC 62722-2-1 (lm)
2500
Luminaire efficacy (lm/W)
125
Colour of light
White
Colour temperature (K)
4000 K to 4000 K
Colour rendering index CRI
80-89
Power factor
0.9
Width (mm)
The product's width without packaging.
140
Height/depth (mm)
88
Length (mm)
389
Type of wiring
Ending
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
