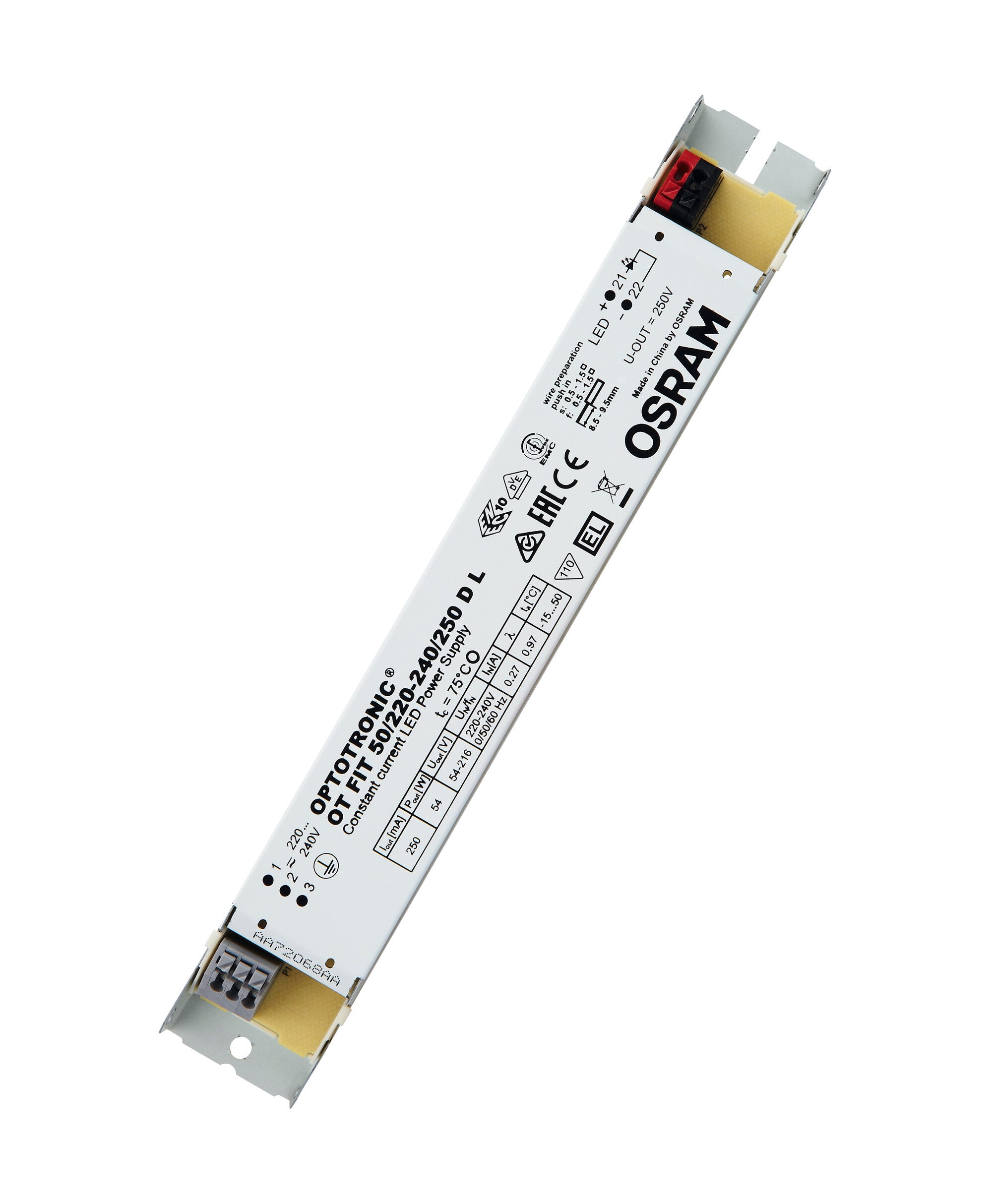

Osram Optotronic LED driver - 4052899222571
Notice: This product will be discontinued in the future
Osram Optotronic Fit led driver static, output voltage 54 - 216V, output power 5 - 13W, output current 250mA, without dimming function, suitable for constant current, suitable for DC voltage (prima, housing metal housing, degree of protection (IP) IP20.
Notice: This product will be discontinued in the future
Description
Linear / Area Constant Current – Non-dimmable. Product features include a line frequency of 0 Hz, 50 Hz, or 60 Hz. This product is versatile due to its output power range of up to 50 W. The supply voltage is 220-240 V. It is also available with an output current range of up to 350 mA. These are non-isolated drivers.
The product benefits from a small housing design and fixed current. It has a lifetime of up to 100,000 hours (temperature at Tc = 65°C, with a maximum 10% failure rate). The light's high quality stems from its low output ripple current and high efficiency. It fulfills safety requirements due to overload, overtemperature, and Hot Plug protection.
The product is suited for linear lighting in offices, education, industry, storage areas, and retail. It's also suitable for installation in emergency lighting systems according to IEC 61347-2-13, appendix J. It can also be installed in emergency lighting systems according to EN 60598-2-22. This product is suitable for luminaires of protection class I.
