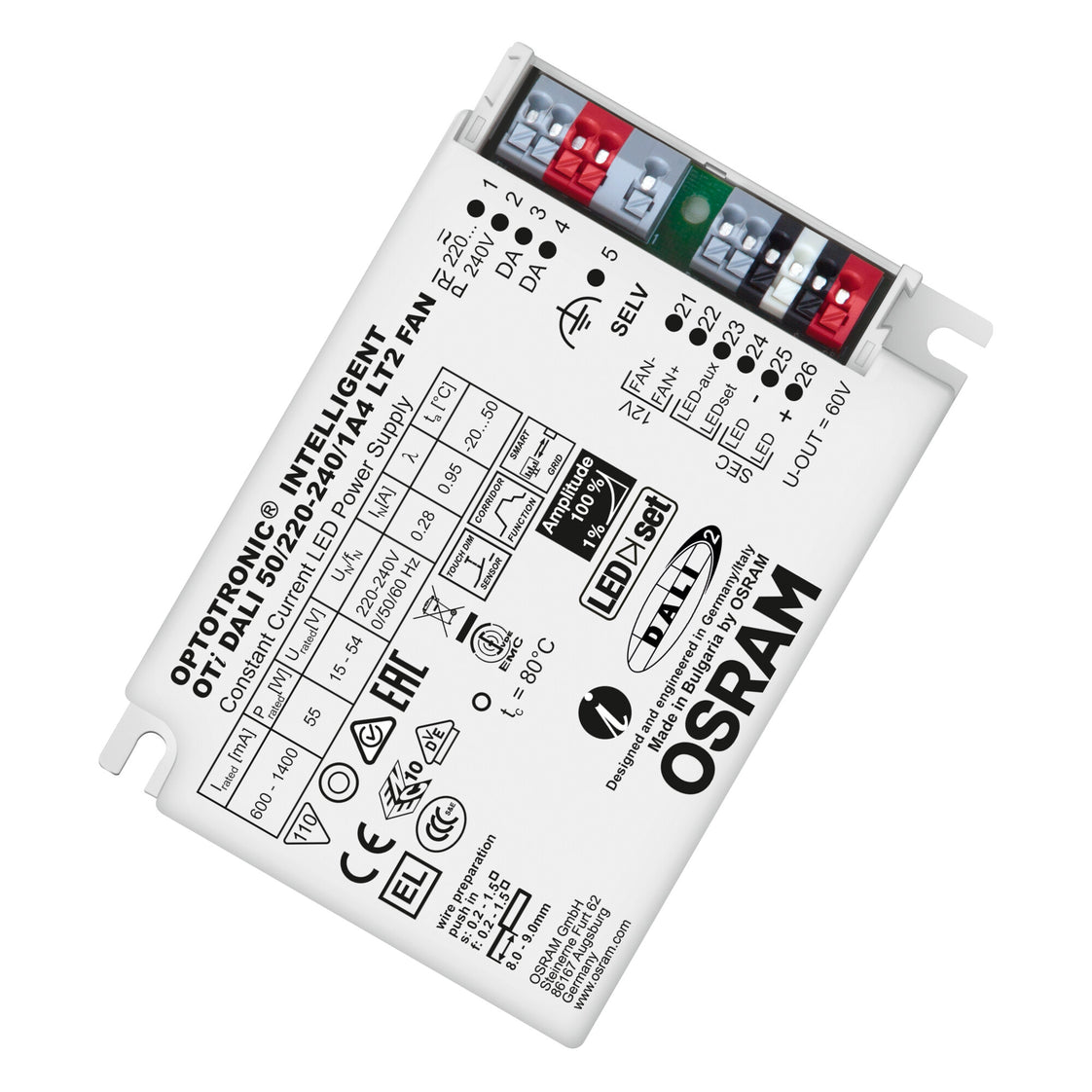

Osram Optotronic LED driver - 4052899488182
Notice: This product will be discontinued in the future
Image may vary slightly
See specifications for accurate information.
Reference:
E38ZD
Brand:
Osram
Mfr. Part:
4052899488182
Osram Optotronic Intelligent led driver dynamic, output voltage 15 - 54V, output power 55W, output current 600 - 1400mA, dimmable DALI, dimmable with push-button, dimmable Touch and Dim, suitable for constant current, suitable for DC voltage prima, housing plastic housing.
Notice: This product will be discontinued in the future
Description
Specifications
Downloads
Related products
Description
Compact constant current LED drivers come with the following product features:
- Supply voltage is 220 to 240 V.
- Line frequency ranges from 0 Hz to 50 Hz to 60 Hz.
- Line voltage ranges from 198 to 264 V.
- This product meets safety standards as per EN 61347-1, 61347-2-3, 61347-2-13, 62384.
- It also meets RI suppression standards as per EN 55015:2007+A1:2007/CDN and Line harmonics standards as per EN 61000-3-2.
- This product is also immunity compliant as per EN 61547.
- It has a long lifetime of up to 100,000 hours at a temperature at Tc of 65 °C with a maximum 10 % failure rate.
Some important product benefits include:
- Versatile DALI window driver due to flexible output characteristic, very high efficiency and reliability.
- The system is protected thanks to thermal management and Smart Control.
- It also offers high-quality dimming of 1 to 100 % by amplitude dimming (OTi DALI 15).
This product can be used in several areas of application. It is suitable for:
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J.
- Use in luminaires with flexible current setting (DALI, CLO, LEDset).
- Indoor SELV installations.
- Luminaires of protection classes I and II.
This product is ideal for downlights, spotlights, LED panels, etc.
