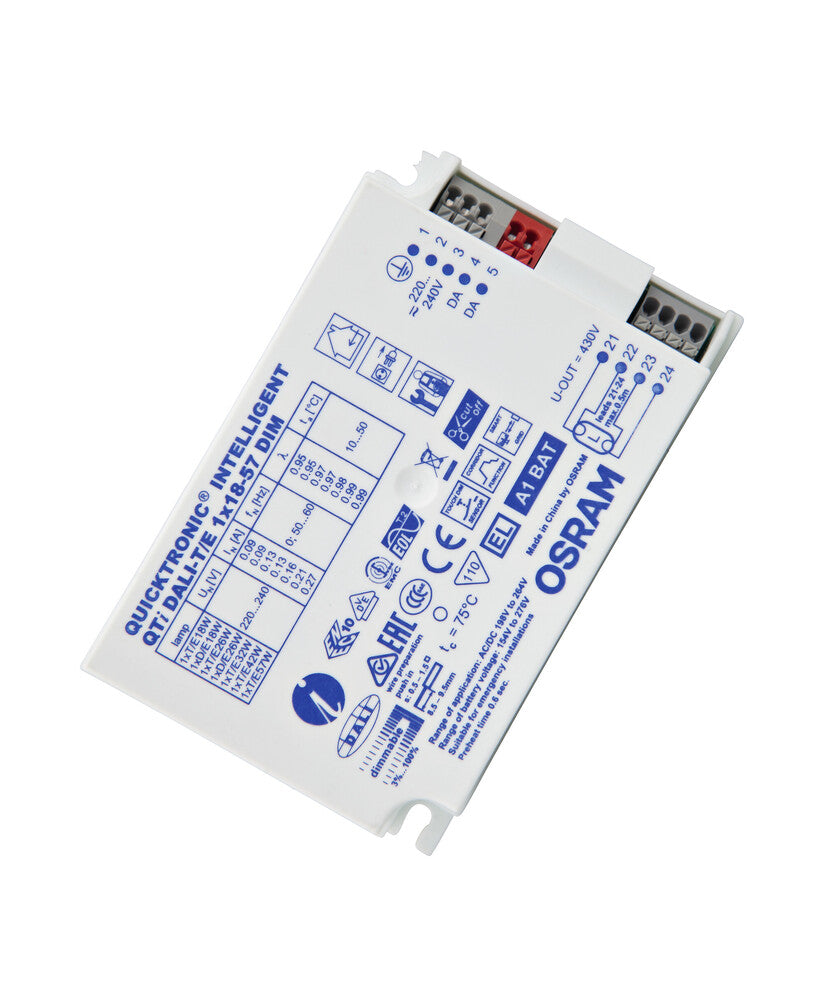

Osram Quicktronic Ballast - 4008321060808
Notice: This product will be discontinued in the future
Osram Quicktronic Intelligent ballast electronic, energy efficiency class A1 BAT, dimmable DALI, dimming programmable, multiwatt version, for lamp type TC-TEL.
Notice: This product will be discontinued in the future
Description
ECG dimmable DALI for CFL. Product features include a corridor function for direct connection of ECG to a common motion sensor. It also has a corridor function with a pre-programmed light program. Touch DIM® function allows free parameterization of light value and turn-on time. It is suitable for SMART GRID, providing feedback on consumed mains power and lamp operating hours.
The product can also detect emergency lighting automatically. It has a very low standby power consumption. The product life is 100,000 hours when the temperature coefficient (Tc) is 65 °C. It boasts a very high number of switching cycles, up to 300,000. The product offers a dimming range of 1 to 100 % (3 to 100 % with a compact fluorescent lamp).
It also has a POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifespan. The line frequency ranges from 0 Hz to 50 to 60 Hz, with rectified AC. Product benefits include easy integration in luminaire thanks to dimensions similar to DALI GI ECG.
- Areas of application include open-plan offices, corridors, and storage rooms in public buildings.
- It is suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100.
- It can be installed in emergency lighting systems according to IEC 61347-2-3, appendix J.
- The product is suitable for luminaires of protection class I.
