Osram Quicktronic Ballast - 4008321329158

Notice: This product is discontinued

Discontinued
Osram Quicktronic Ballast - 4008321329158
Osram Quicktronic Ballast - 4008321329158
Osram Quicktronic Ballast - 4008321329158
Osram Quicktronic Ballast - 4008321329158
Image may vary slightly
See specifications for accurate information.
Reference: E3AUY
Brand: Osram
Mfr. Part: 4008321329158

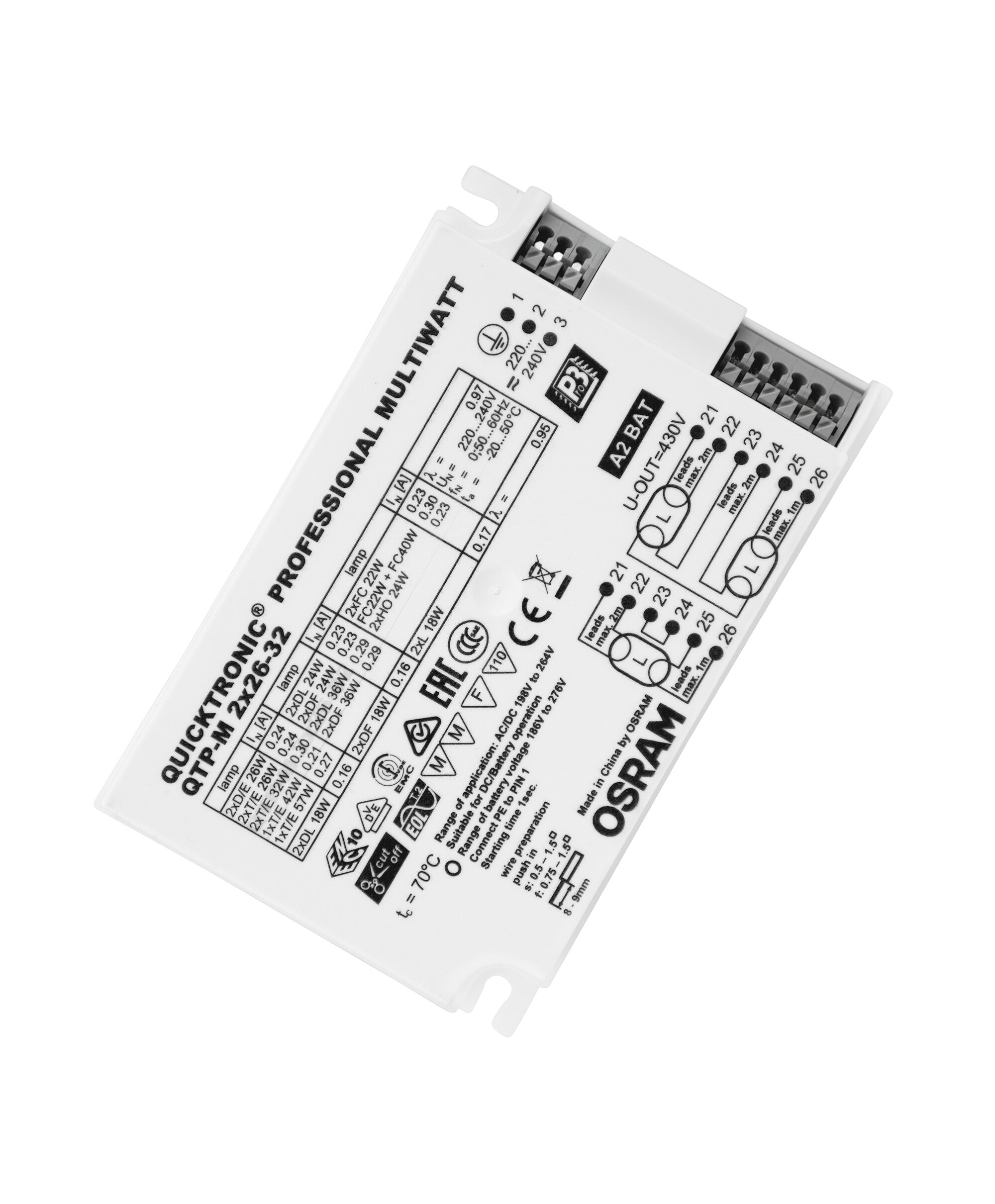

Osram Quicktronic Multiwatt ballast electronic, energy efficiency class A2, without dimming function, multiwatt version, for lamp type TC-TEL.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

ECG for CFL. Product features include a supply voltage of 220 to 240 V, line voltage of 198 to 264 V and line frequency of 0 Hz, 50 Hz, or 60 Hz. The lamp starts with optimum filament preheating. The Energy Efficiency Index is rated at A2. In case of defective lamps or at the end of life, automatic shutdown is provided. Lamp operation complies with EN 60929 and safety standards align with EN 61347-2-3.

The product's benefits include:

  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors

Separate installations are facilitated thanks to optional cable clamp for K2 and K3 casings. The system is VDE/VDE EMC certified. It can be used in emergency lighting systems according to EN 50172 / DIN VDE 0108-100, public buildings, sports halls and factories. It is suitable for luminaires of protection class I.

Downloads

Product datasheet (EN)
pdf
Download
Product datasheet (EN)
pdf
Download
pdf
Download

Specifications

Model
Electronic
Multiwatt model
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
For lamp type HI
No
For lamp type HM
No
For lamp type HS
No
For lamp type LS
No
For lamp type T7
No
For lamp type T16
Yes
For lamp type T16-R
Yes
For lamp type T26
No
For lamp type T38
No
For lamp type T-R
No
For lamp type T-U
No
For lamp type TC-D
No
For lamp type TC-DD
No
For lamp type TC-DEL
Yes
For lamp type TC-F
Yes
For lamp type TC-L
Yes
For lamp type TC-QEL
No
For lamp type TC-S
No
For lamp type TC-SEL
No
For lamp type TC-T
No
For lamp type TC-TEL
Yes
Suitable for lamp power (2 lamps) (W)
26 W to 32 W
Suitable for number of lamps
2 to 2
Suitable for lamp power (W)
71 W to 71 W
Nominal voltage (V)
220 V to 240 V
Housing
Plastic housing
With strain relief
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Protection class
I
Length (mm)
123
Width (mm)
The product's width without packaging.
79
Height (mm)
The product's height without packaging.
33
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
Yes
