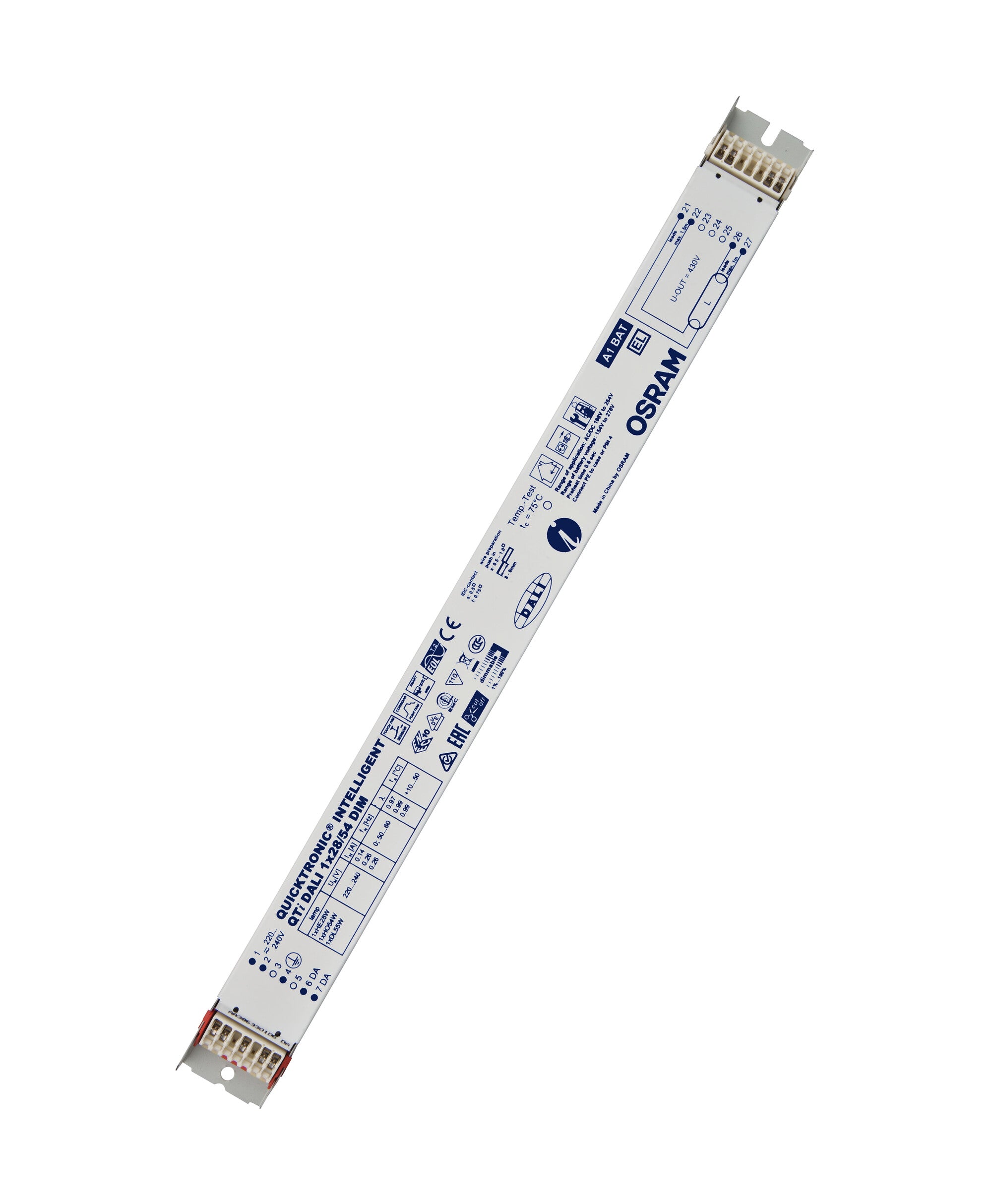

Osram Quicktronic Ballast - 4050300870809

ECG dimmable DALI for FL 16 mm. Product features:

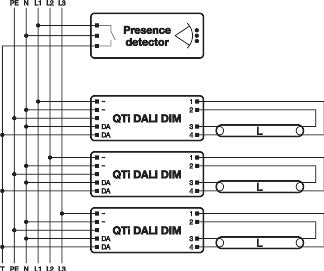

• Corridor function for the direct connection of ECG to a common motion sensor.
• Corridor function with a pre-programmed light program.
• Touch DIM® function for free parameterization of light value and turn-on time.
• Fit for SMART GRID for feedback of consumed mains power and lamp operating hours.
• Fit for the Emergency function for automatic detection of emergency lighting by ECG.
• Low standby power consumption: 100,000 h (for Tc = 65 °C ).
• High number of switching cycles: up to 300,000.
• Dimming range: 1…100 % (3…100 % with a compact fluorescent lamp).
• POWER2LAMP function for optimal matching of ECG power to the lamp during lamp lifetime.
• Line frequency: 0 Hz, 50…60 Hz, rectified AC.

Product benefits:

• System+ Guarantee available.
• Easy integration into luminaires thanks to dimensions similar to DALI GI ECG.
• TouchDIM® function for easy and inexpensive dimming of several ECGs.
• Same luminous flux with direct and alternating current.
• Dimming of amalgam lamps without flickering or reduced lifespan.
• Automatic restart after lamp replacement.
• No new approvals required.

Areas of application:

• Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100.
• Installation in emergency lighting systems according to IEC 61347-2-3, appendix J.
• Industry.
• Open-plan offices, corridors, and storage rooms.
• Public buildings.
• Sports halls and factories.
• Strip lighting.
• Shop lighting.
• Suitable for luminaires of protection class I.
