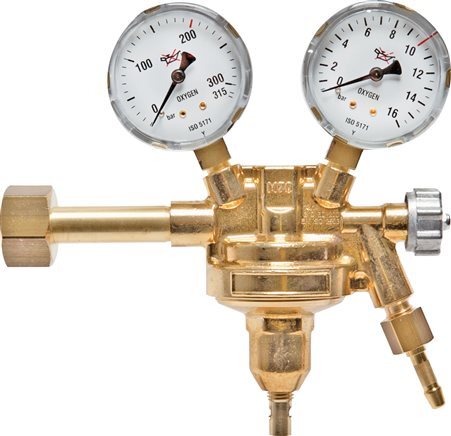

Oxygen 300 bar Bottle Regulator With 0 to 10 bars Pressure Setting Range

This is a hard-pressed brass bottle pressure regulator for oxygen at a maximum pressure of 300 bar. It lowers the inlet pressure to a preset value, ranging from 0 to 10 bar. Connect the W 30 x 2 (Ø 17.3/18.7) female threaded port with a supply bottle and a G 1/4 inch by 6 mm female threaded hose barb with a suitable hose. To set the pressure, screw the rod on the lower side in or out. The pressure gauge on the inlet port indicates the inlet pressure and the pressure gauge on the outlet port indicates the preset or working pressure. The regulator is designed in accordance with DIN EN ISO 2503 and bottle connection port conforms to DIN 477-5 standard which means they have been tested for pressures up to 450 bar.

Pros:

• Mounted with two pressure gauges for both inlet and outlet pressure
• Equipped with a shut off valve for on/off control
• Designed in accordance with DIN EN ISO 2503
• Tested with pressures up to 450 bar in accordance with DIN 477-5 to ensure safety
• BAM tested and approved for oxygen

Cons:

• Suitable only for oxygen

PRLB series

Bottle pressure regulator series consists of devices used for gas welding purposes designed in accordance with DIN EN ISO 2503. The regulators are suitable for different gases, like air, nitrogen, argon, helium, CO2. They can be used for maximum inlet pressures of up 300 bar and set the working pressure within the ranges of 0-10, 0-20 or 0-100 bar. Depending on the design these regulators can be equipped with either two pressure gauges or with a pressure gauge and flow meter combination. Some pressure regulators are equipped with a shut-off valve that provides on/off control.
