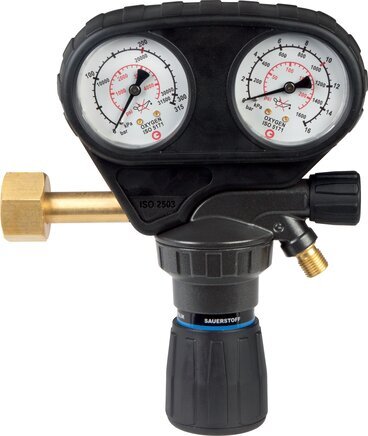

Oxygen Regulator 200 bar to 0-20 bar G 3/4'' Female
This brass cylinder pressure regulator is suitable for oxygen at a maximum pressure of 200 bar. It lowers the inlet pressure to an adjustable range of 0-20 bar. The G 3/4 inch female threaded port connects to the supply bottle (conforming DIN 477-5). The G 1/4 inch male threaded port connects to a suitable hose. Use the handwheel located on the bottom to adjust the outlet pressure. The pressure gauges are well protected by the robust rubber enclosure and clearly display the inlet and outlet pressure in three different scales. This regulator is designed for safety in accordance with DIN EN ISO 2503.
- Regular price
- £128.68
Description
This brass cylinder pressure regulator is suitable for oxygen at a maximum pressure of 200 bar. It lowers the inlet pressure to an adjustable range of 0-20 bar. The G 3/4 inch female threaded port connects to the supply bottle (conforming DIN 477-5). The G 1/4 inch male threaded port connects to a suitable hose. Use the handwheel located on the bottom to adjust the outlet pressure. The pressure gauges are well protected by the robust rubber enclosure and clearly display the inlet and outlet pressure in three different scales. This regulator is designed for safety in accordance with DIN EN ISO 2503.
Pros:
- Regulates oxygen up to 200 bar to a 0-20 bar pressure
- Inlet and outlet pressure gauge with rugged rubber cover
- Shut-off valve to stop the gas flow
- Safe design meeting DIN EN ISO 2503
- The bottle connection conforms to DIN 477-1 standard
- BAM tested and approved for oxygen
Cons:
- Suitable only for oxygen
