Paulmann Ground-Mounted luminaire - 93993

Notice: This product is discontinued

Discontinued
Paulmann Ground-Mounted luminaire - 93993
Paulmann Ground-Mounted luminaire - 93993
Paulmann Ground-Mounted luminaire - 93993
Paulmann Ground-Mounted luminaire - 93993
Paulmann Ground-Mounted luminaire - 93993
Paulmann Ground-Mounted luminaire - 93993
Image may vary slightly
See specifications for accurate information.
Reference: E38VH
Brand: Paulmann
Mfr. Part: 93993

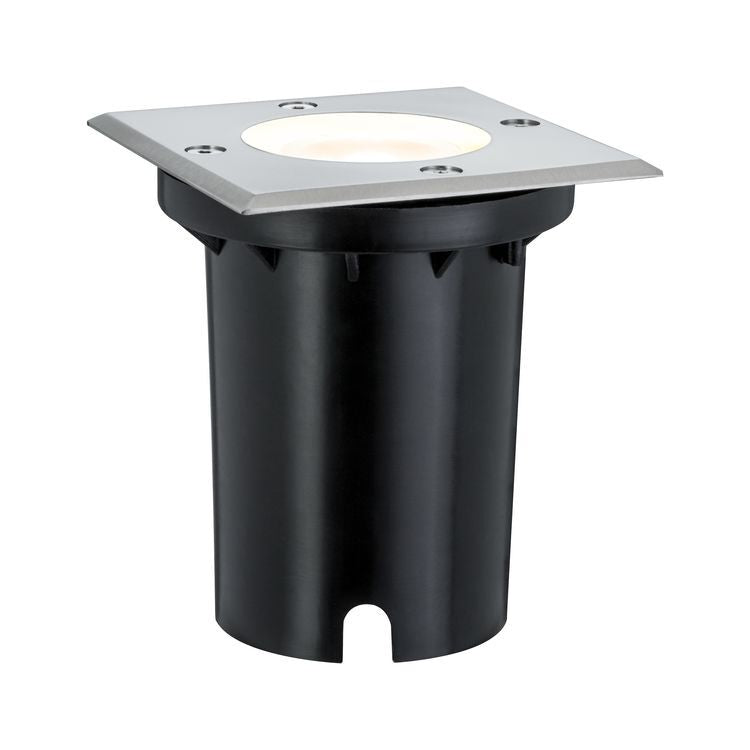

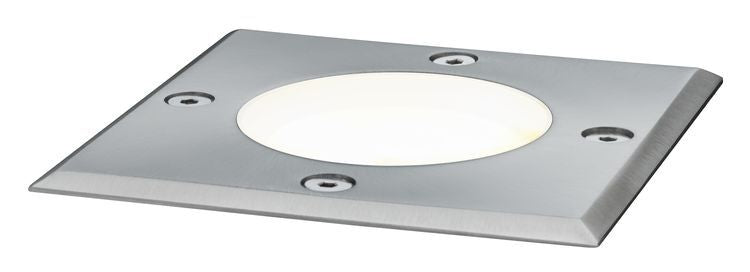

Paulmann floor recessed luminaire, width 108mm, subcategory not surmountable, suitable for lamp wattage 35W, rated voltage 230V, degree of protection (IP) IP67, connection type screw terminal, 3 poles, protection class I.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Paulmann floor recessed luminaire, width 108mm, subcategory not surmountable, suitable for lamp wattage 35W, rated voltage 230V, degree of protection (IP) IP67, connection type screw terminal, 3 poles, protection class I.

Downloads

Installation and Maintenance (EN)
pdf
Download

Specifications

Lamp type
HV halogen lamp
With light source
Yes
Suitable for number of lamps
2
Lamp holder
GU10
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel
Colour housing
Silver
Material cover
Glass transparent
Voltage-type
AC
Nominal voltage (V)
230 V to 230 V
Type of control gear
Not required
With control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Adjustable
No
Light sharing
Symmetric
Beam angle
Parallel beam <5°
Energy efficiency class of the built-in lamp
Other
Energy efficiency class of the provided exchangeable built-in lamp
A+
Highest energy efficiency class of the exchangeable lamp
E
Lowest energy efficiency class of the exchangeable lamp
A++
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
Protection class
I
Suitable for lamp power (W)
35 W to 35 W
Max. system power (W)
3.5
Rated luminous flux according to IEC 62722-2-1 (lm)
0
Colour of light
White
Colour temperature (K)
3000 K to 3000 K
Width (mm)
The product's width without packaging.
108
Height/depth (mm)
108
Length (mm)
124
Built-in width (mm)
105
Built-in height/depth (mm)
0
Built-in length (mm)
0
Built-in diameter (mm)
0
Over rollable
No
Max. surface temperature (°C)
40
Number of poles
3
Conductor cross section (mm²)
0
Connection type
Screwed terminal
Electrical connection with connector system
No
