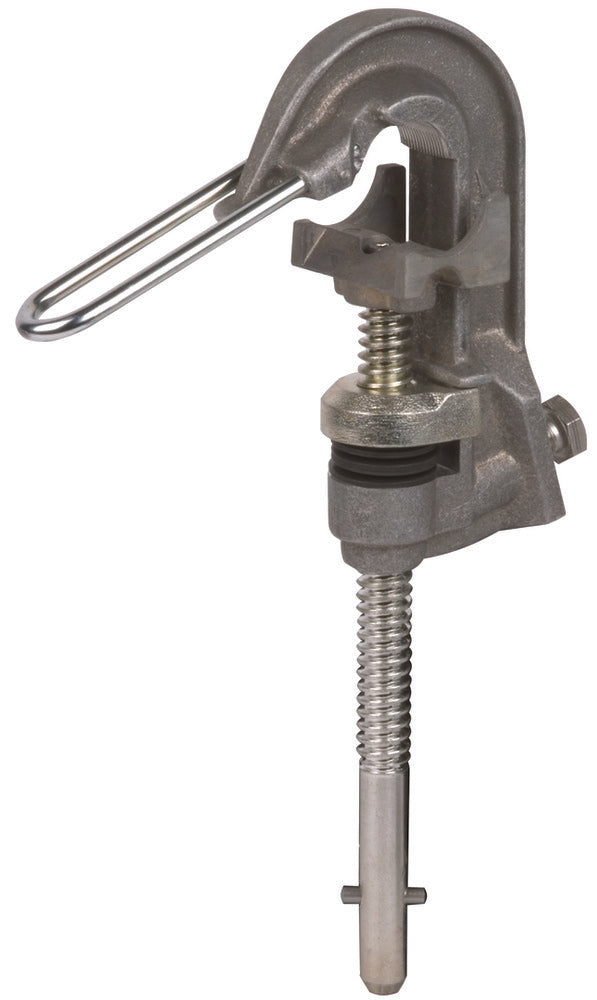

Phase Screw Clamp T-Pin Shaft Connector Element PK1 - 784401
This is a Dehn phase screw clamp equipped with a coupling aid and a long threaded T pin shaft, designed for connecting the phase cables of earthing and short-circuiting devices to the overhead line. It complies with EN/IEC 61230 (DIN VDE 0683-100) standards. The clamp can handle a maximum short-circuit current of 19.5kA and is suitable for a wire section of 16-70mm², with a clamping range of 4-30mm. It features an anti-rotation element for the operating rod's spindle attachment with a transverse pin, thus ensuring secure, twist-free installation. This clamp is to be used phase-side.
- Regular price
- £263.95
Description
This is a Dehn phase screw clamp equipped with a coupling aid and a long threaded T pin shaft, designed for connecting the phase cables of earthing and short-circuiting devices to the overhead line. It complies with EN/IEC 61230 (DIN VDE 0683-100) standards. The clamp can handle a maximum short-circuit current of 19.5kA and is suitable for a wire section of 16-70mm², with a clamping range of 4-30mm. It features an anti-rotation element for the operating rod's spindle attachment with a transverse pin, thus ensuring secure, twist-free installation. This clamp is to be used phase-side.
