Phoenix Contact Fuse Clamp - 3026654

Phoenix Contact Fuse Clamp - 3026654
Phoenix Contact Fuse Clamp - 3026654

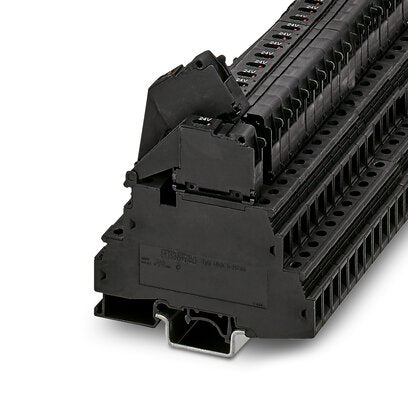

Image may vary slightly
See specifications for accurate information.
Reference: E2BVW
Brand: Phoenix Contact
Mfr. Part: 3026654

Phoenix Contact fuse row terminal, black, (WxDxH) 8.2x86.5x84mm, fuse pattern design other, supply voltage for fault indica 15 - 30V, DIN rail 35mm, fuse holder design (pattern swiveling, nom. (measuring) current In 32A, connectable conductor cross-section duck 0.2mm².

View all
£27.13
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 38 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Phoenix Contact fuse row terminal, black, (WxDxH) 8.2x86.5x84mm, fuse pattern design other, supply voltage for fault indica 15 - 30V, DIN rail 35mm, fuse holder design (pattern swiveling, nom. (measuring) current In 32A, connectable conductor cross-section duck 0.2mm².

Downloads

Specifications

Type of fuse insert
Other
Type of fuse holder
Swivelling
Supply voltage for defect-indication (V)
15 V to 30 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.2 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
4 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²)
0.2 mm² to 0.2 mm²
Connectable conductor cross section multi-wired (mm²)
0.2 mm² to 0.2 mm²
Rated current In (A)
32
Rated voltage (V)
24
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature (°C)
105 °C to 105 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)
The product's width without packaging.
8.41
Height (mm)
The product's height without packaging.
86.55
Depth (mm)
The product's depth without packaging.
77.98
Closing plate required
No
Color
Black
