Image may vary slightly
See specifications for accurate information.
Reference: E35CB
Brand: Phoenix Contact
Mfr. Part: 1407731

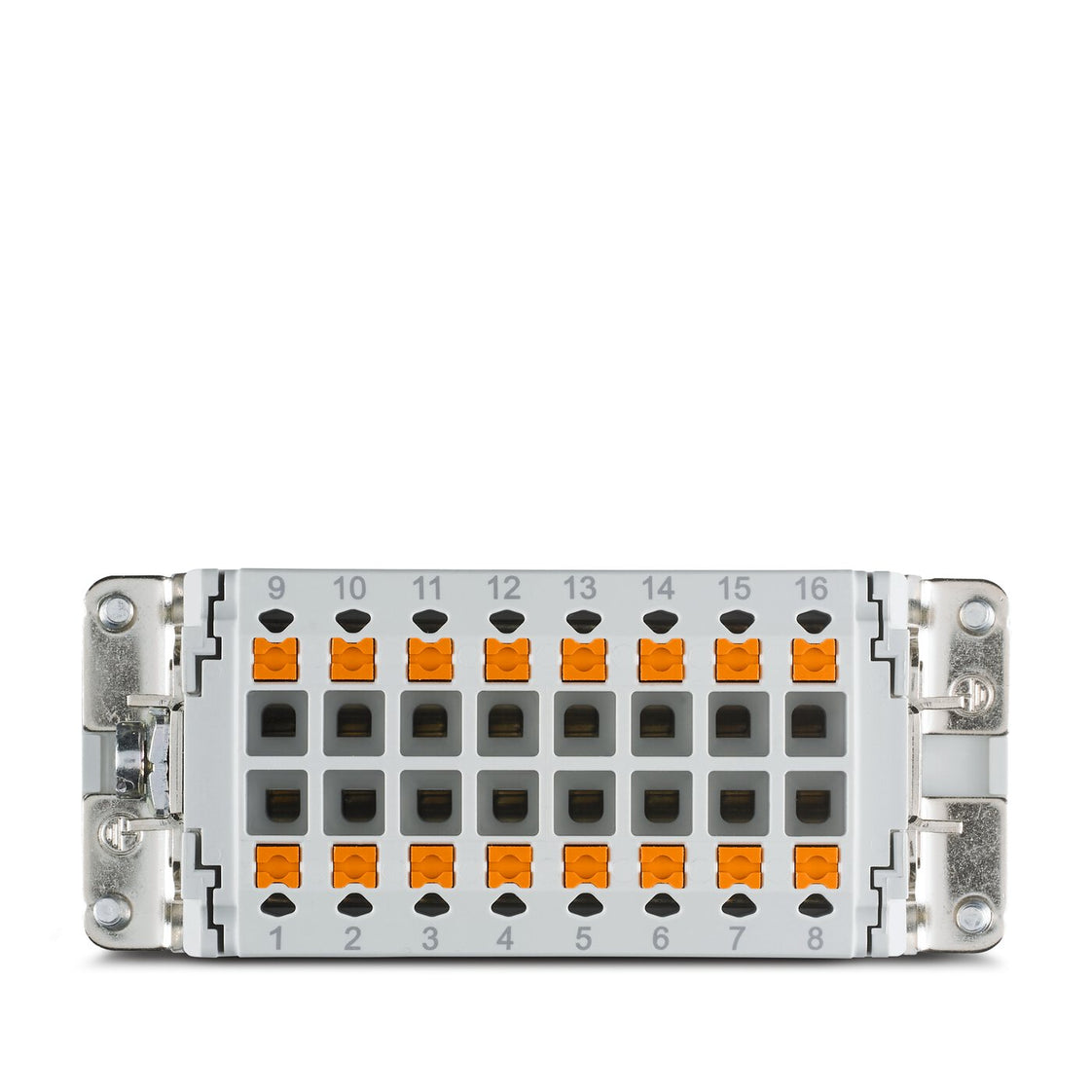

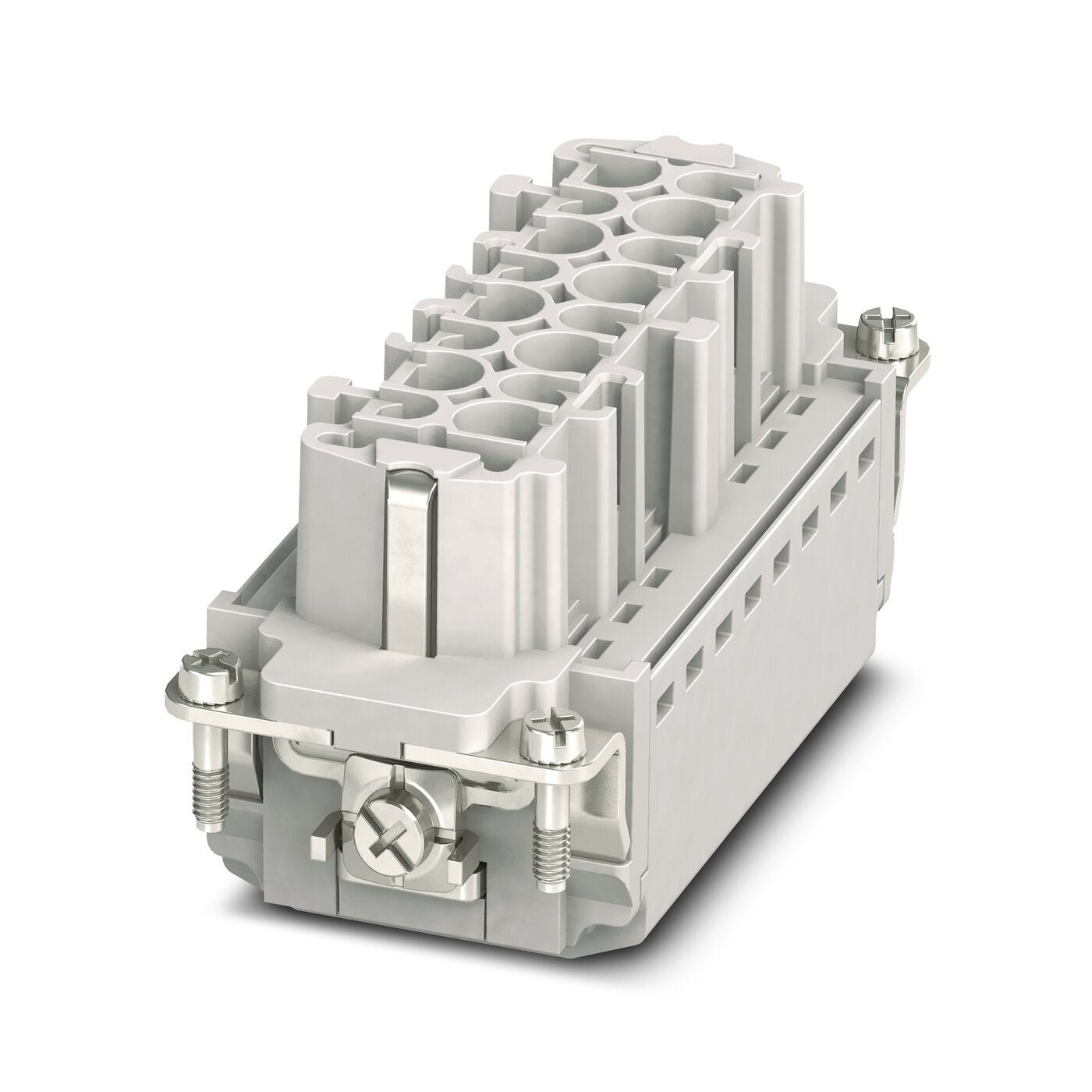

Heavycon socket insert, b16 series, 16 + pe-pos., push-in connection. For fast coding with plastic profile. Significant time savings during conductor connection. Conductor connection without tools. Test connection for 2 mm test plug.

View all
£12.16
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 69 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Heavycon socket insert, b16 series, 16 + pe-pos., push-in connection. For fast coding with plastic profile. Significant time savings during conductor connection. Conductor connection without tools. Test connection for 2 mm test plug.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Number of power contacts
16
Contact insert without contacts
No
Contact type
Bus

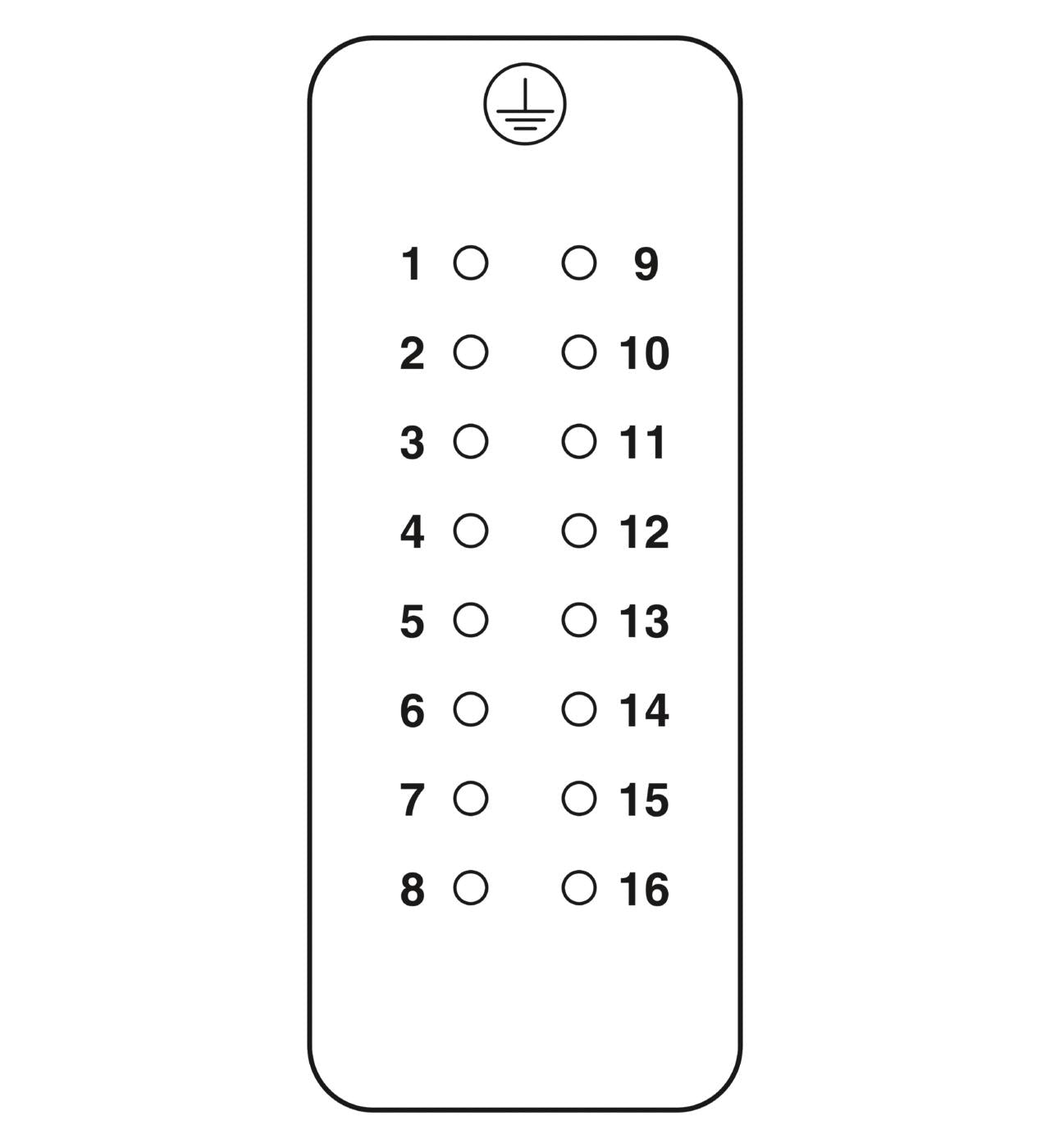

Number of poles
16
Diameter plug-in contact (mm)
2.5
Material connector insert
Thermoplastic
Rated current In (A)
16
Ambient temperature (°C)
125 °C to 125 °C
Operating temperature (°C)
-40 °C to 125 °C
Rated voltage (V)
500
Rated surge voltage (kV)
6
Over voltage category
III
Pollution degree
3
Electrical connection
Type of electric connection.
Spring clamp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.14 mm² to 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.14 mm² to 2.5 mm²
Connectable conductor cross section solid-core (mm²)
0.14 mm² to 2.5 mm²
Connectable conductor cross section multi-wired (mm²)
0.14 mm² to 2.5 mm²
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Min. number of insertion cycles
500

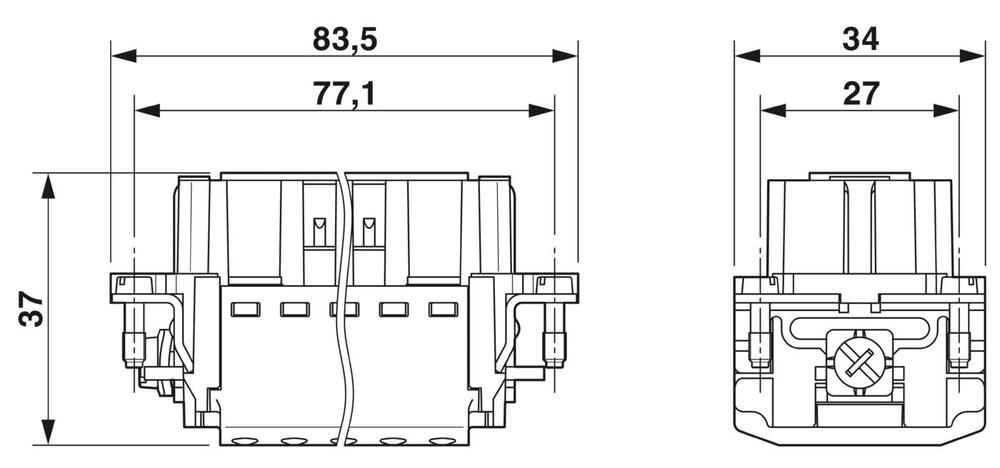

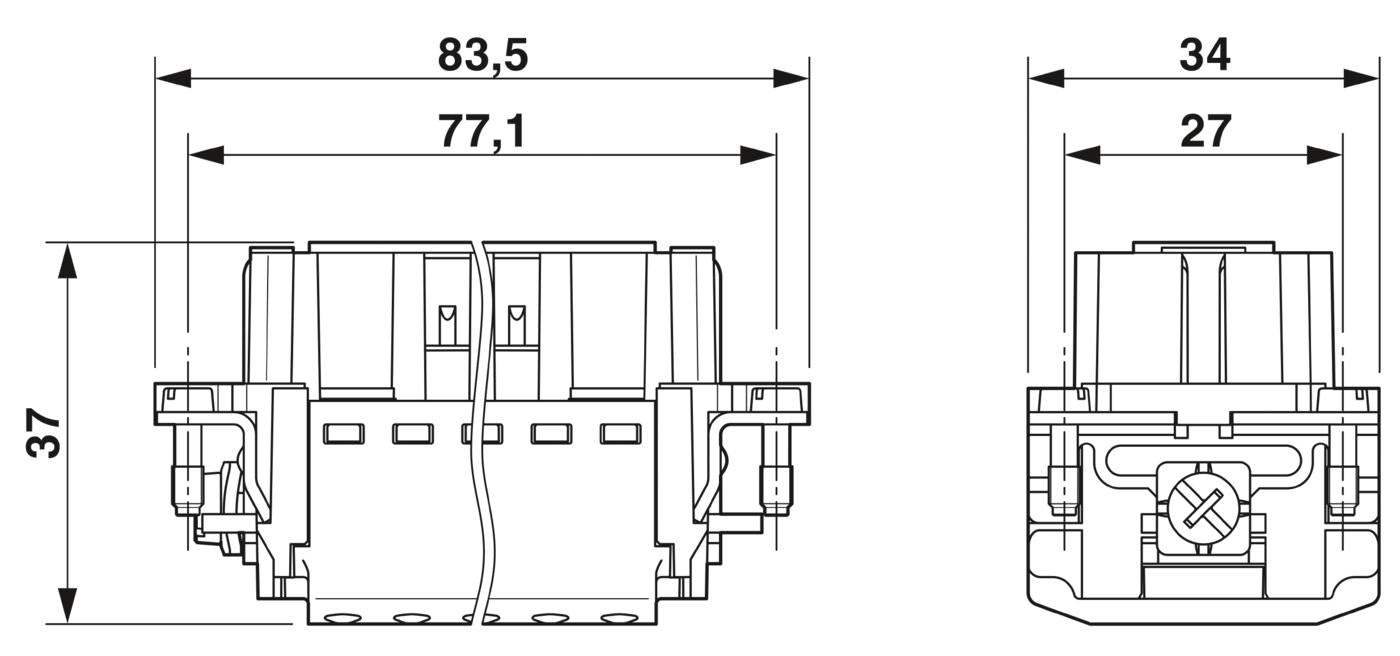

Width (mm)
The product's width without packaging.
34
Height (mm)
The product's height without packaging.
37
Depth (mm)
The product's depth without packaging.
84
