Reference: E29GN
Brand: Phoenix Contact
Mfr. Part: 1681114

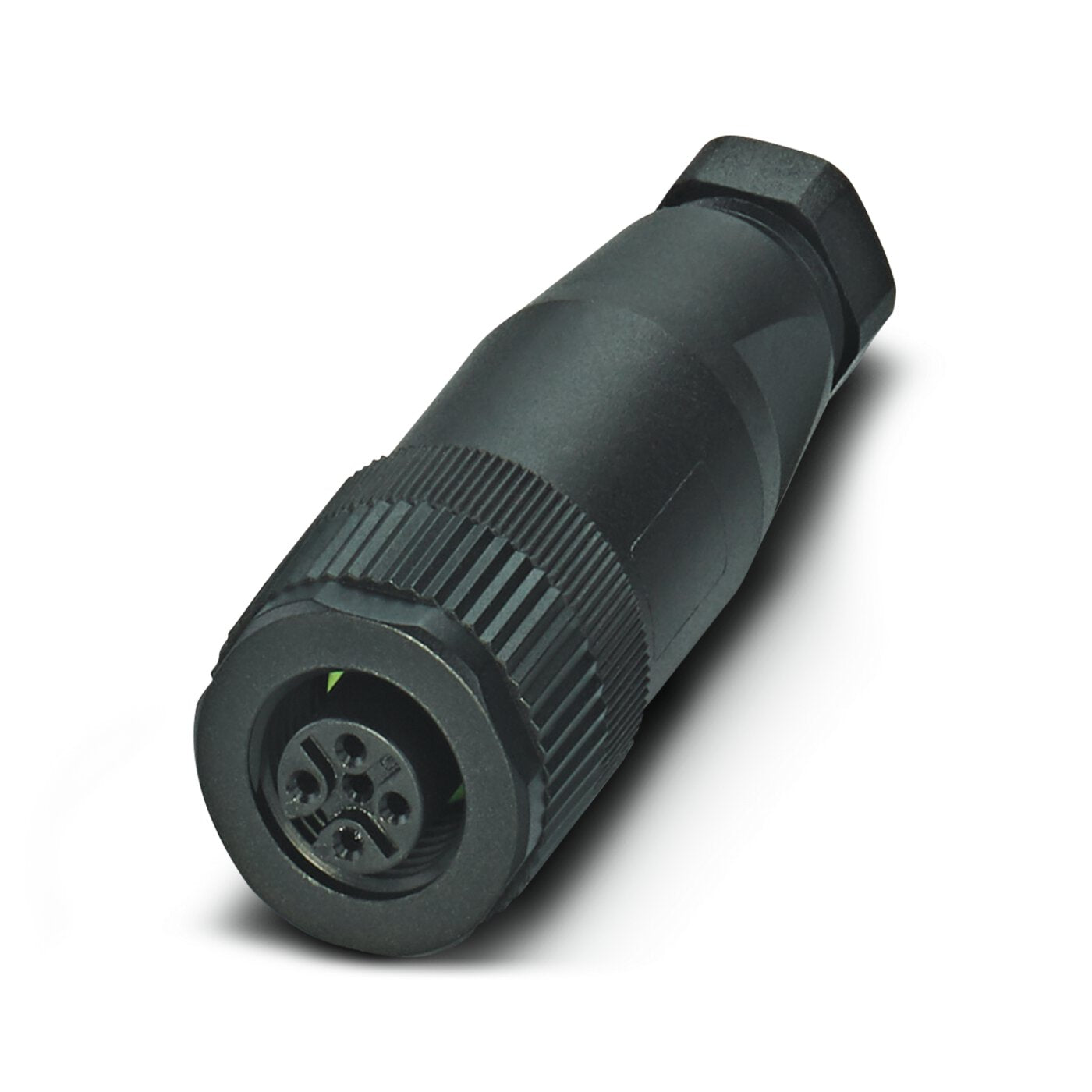

Connector, Universal, 4-position, Socket straight M12, Coding = A, Screw connection, knurl material = Plastic, cable gland Pg7, external cable diameter 4 mm . 6 mm.

View all
£10.69
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 30 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

Connector, Universal, 4-position, Socket straight M12, Coding = A, Screw connection, knurl material = Plastic, cable gland Pg7, external cable diameter 4 mm . 6 mm.

Specifications

Contact type
Bus
Number of data contacts
0
Number of power contacts
0
Number of control contacts
4
For cable outer diameter (mm)
4 mm to 6 mm
Type of housing
Straight
Rated current In (A)
4
Ambient temperature (°C)
85 °C to 85 °C
Rated voltage (V)
250
Over voltage category
II
Pollution degree
3
Connectable conductor cross section solid-core (mm²)
0.75 mm² to 0.75 mm²
Electrical connectioni
Screw connection
Material of contact surface
Other
Materiali
Other
Coating housing
Other
Material thread ring
Plastic
Locking mechanism
Other
Inflammability class of insulation material according to with UL94
HB
With protective conductor
No
