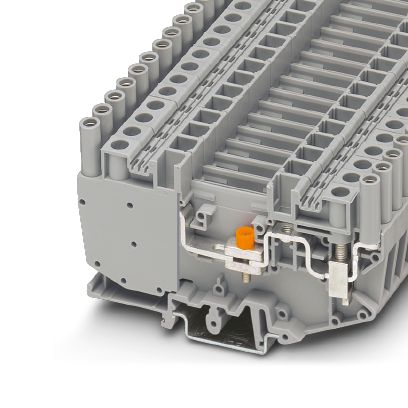

Phoenix Contact Test Disconnect Terminal Block URTK/SP - 0311126

Phoenix Contact Test Disconnect Terminal Block URTK/SP - 0311126
Phoenix Contact Test Disconnect Terminal Block URTK/SP - 0311126
Reference: E3WD2
Brand: Phoenix Contact
Mfr. Part: 0311126

High-performance test disconnect terminal block designed for current transformer secondary circuit testing and measurement tasks. Features screw connection terminals with 6 mm² rated cross-section, supporting wire ranges from 0.5 mm² to 10 mm². Operates at 500V nominal voltage and 41A nominal current. Compatible with NS 35/7.5, NS 35/15, and NS 32 mounting rails.

View all
£12.25
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 47 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

High-performance test disconnect terminal block designed for current transformer secondary circuit testing and measurement tasks. Features screw connection terminals with 6 mm² rated cross-section, supporting wire ranges from 0.5 mm² to 10 mm². Operates at 500V nominal voltage and 41A nominal current. Compatible with NS 35/7.5, NS 35/15, and NS 32 mounting rails.

Pros:

  • High current capacity of 41A
  • Wide wire cross-section range (0.5-10 mm²)
  • Compatible with multiple mounting rail types
  • Switchable bridge connections on both sides

Specifications

Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.5 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.5 mm² to 0.5 mm²
Connectable conductor cross section solid-core (mm²)
0.5 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²)
0.5 mm² to 2.5 mm²
Rated current In (A)
41
Rated voltage (V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature (°C)
-60 °C to 105 °C
Width (mm)i
8.2
Height (mm)i
99.5
Depth (mm)i
59
Closing plate required
No
Color
Grey
