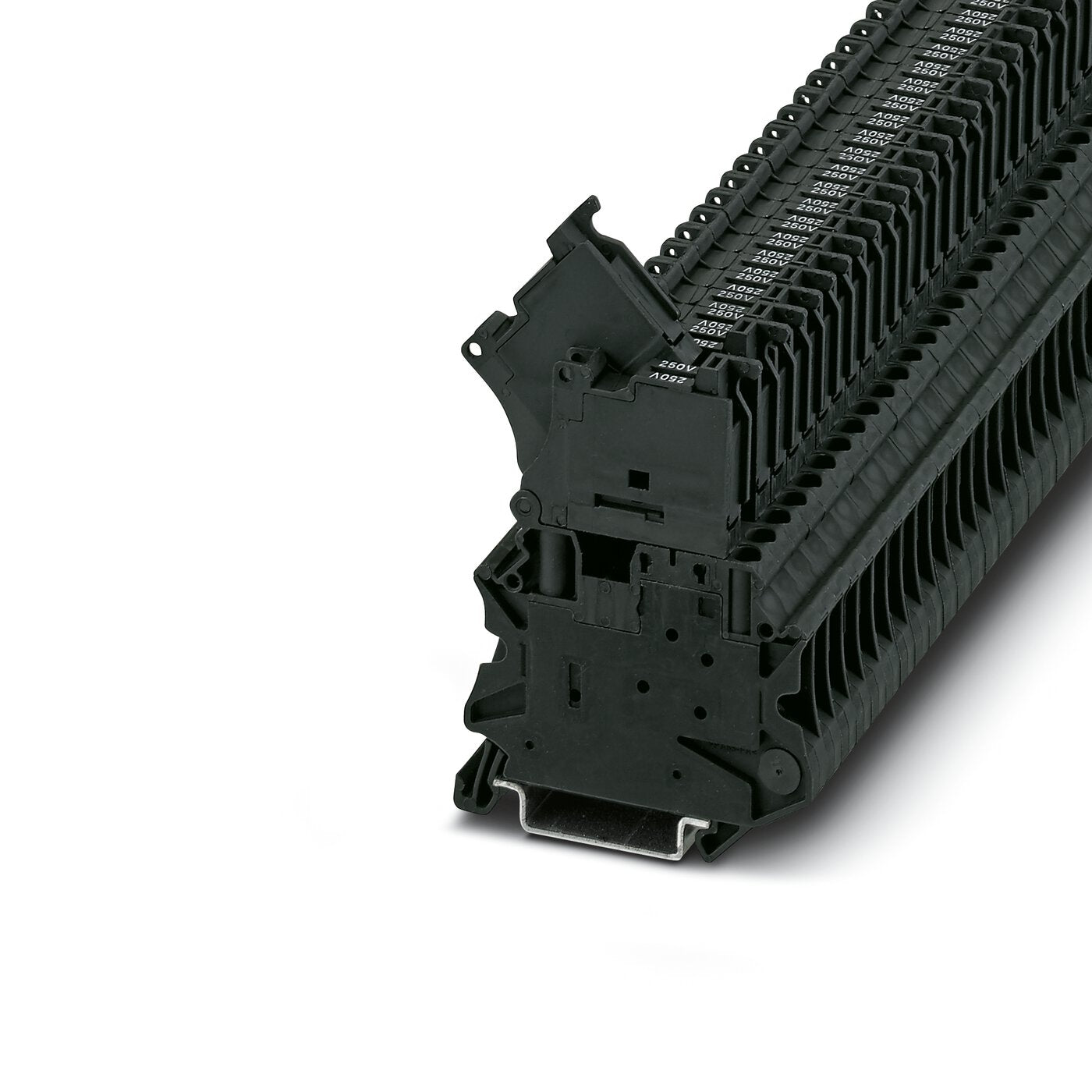

Phoenix Contact UT Fuse Clamp - 3046100

Phoenix Contact UT Fuse Clamp - 3046100
Phoenix Contact UT Fuse Clamp - 3046100
Phoenix Contact UT Fuse Clamp - 3046100
Phoenix Contact UT Fuse Clamp - 3046100
Image may vary slightly
See specifications for accurate information.
Reference: E29NG
Brand: Phoenix Contact
Mfr. Part: 3046100

Universal lever fuse terminals. Fuse terminals (hesi) adopt the functional operation of the fuse holder and power distribution. Lever disconnect terminals (hedi) enable two bridging power sources to be directed separately in parallel (time-saving power supply). G-type fuse insert 5 x 20 mm. Standards. Iec 60947-7-3. Approvals. Ul, csa. Phoenix contact clipline ut range.

View all
£11.13
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 44 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Universal lever fuse terminals. Fuse terminals (hesi) adopt the functional operation of the fuse holder and power distribution. Lever disconnect terminals (hedi) enable two bridging power sources to be directed separately in parallel (time-saving power supply). G-type fuse insert 5 x 20 mm. Standards. Iec 60947-7-3. Approvals. Ul, csa. Phoenix contact clipline ut range.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Type of fuse insert
Other
Type of fuse holder
Swivelling
Type of indication element for defect indication
None
Supply voltage for defect-indication (V)
110 V to 250 V
Voltage type for defect indication
AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.14 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
4 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²)
0.14 mm² to 0.14 mm²
Connectable conductor cross section multi-wired (mm²)
0.14 mm² to 0.14 mm²
Rated current In (A)
6.3
Rated voltage (V)
250
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature (°C)
105 °C to 105 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)
The product's width without packaging.
6.15
Height (mm)
The product's height without packaging.
57.8
Depth (mm)
The product's depth without packaging.
74.98
Closing plate required
No
Color
Black
