Reference: E322S
Brand: Phoenix Contact
Mfr. Part: 2838199

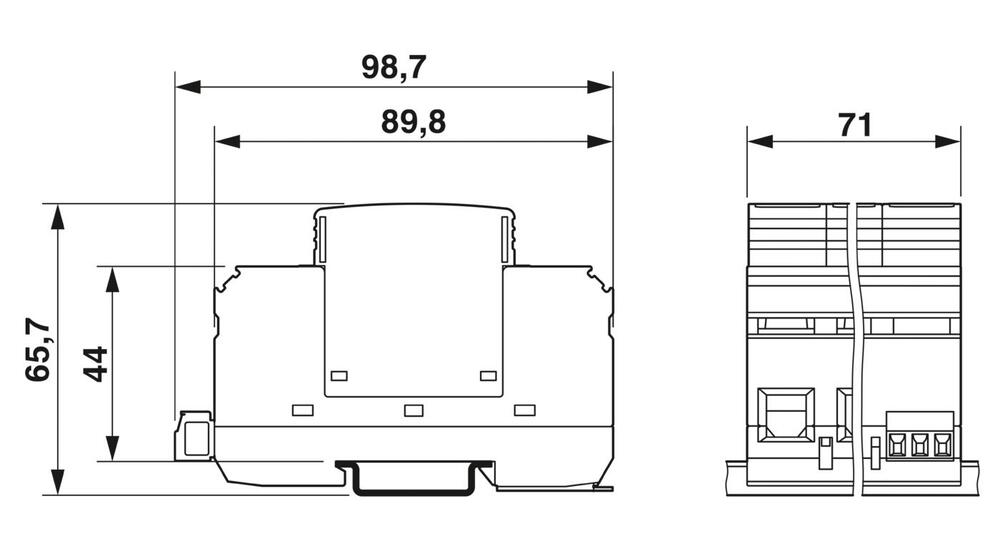

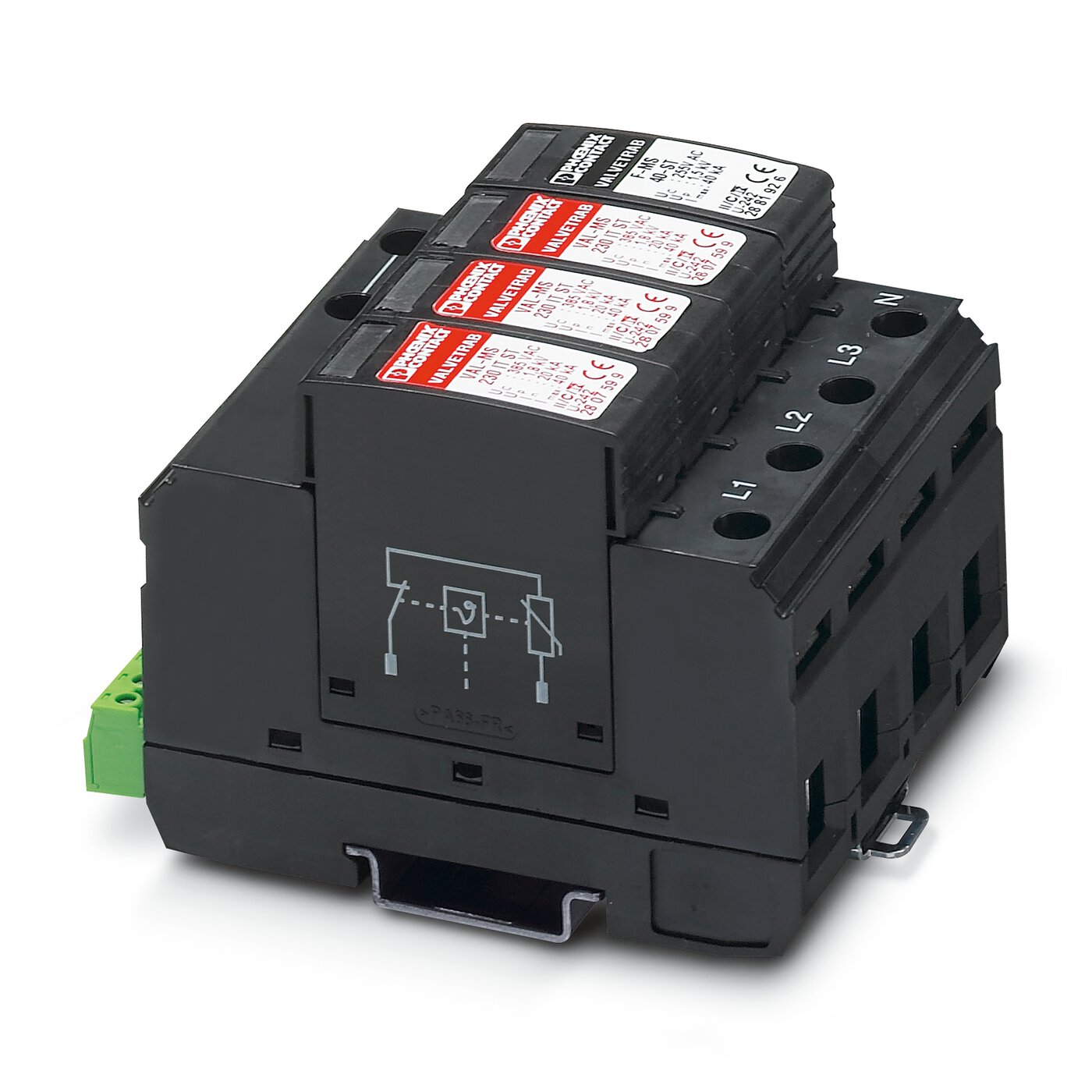

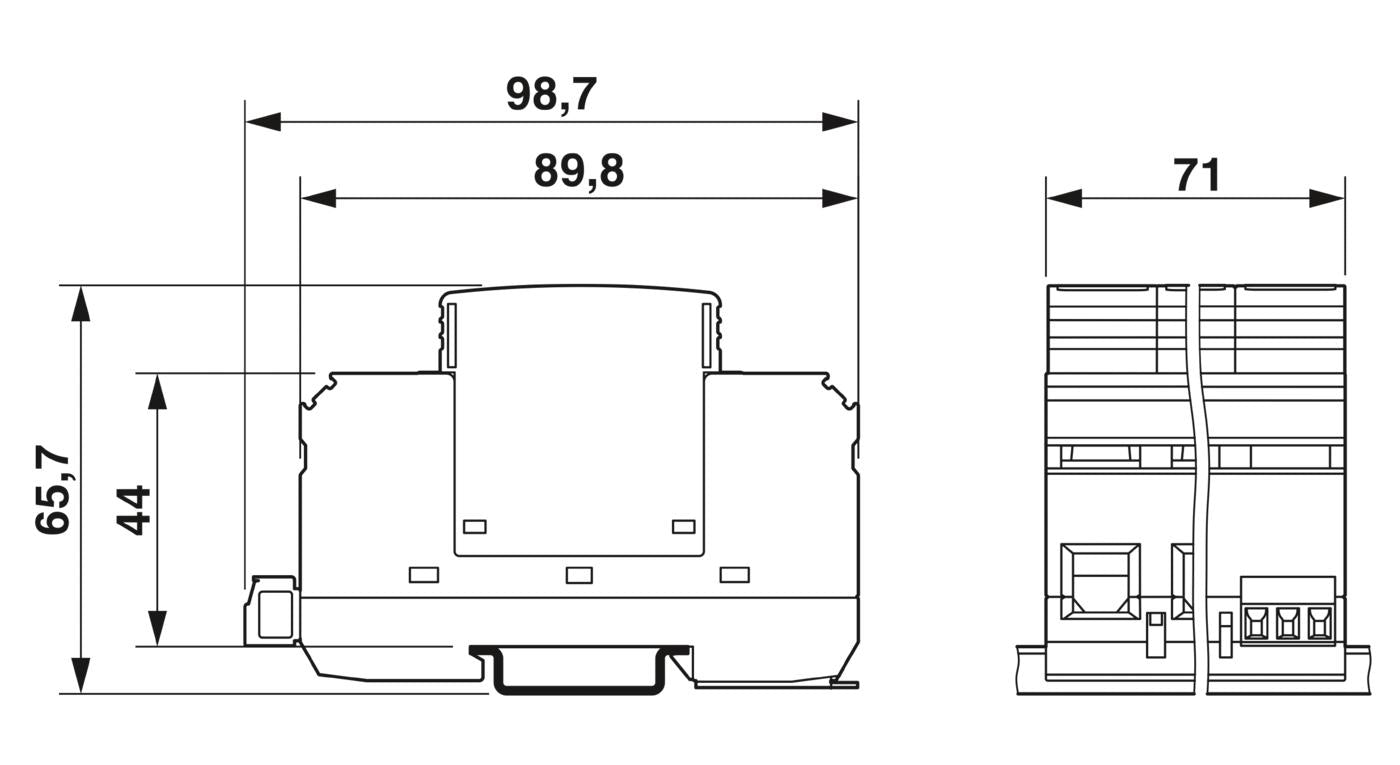

The phoenix contact's type 2 surge arrester consisting of base element with remote indicator contact and ground connectors, for mounting on ns 35/7.5. Mounting type din rail: 35 mm. Colour jet black ral 9005. Housing material pa 6.6, pbt. Height 98.7 mm. Width 71 mm. Depth 65.7 mm.

View all
£268.90
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications
Downloads

Description

The phoenix contact's type 2 surge arrester consisting of base element with remote indicator contact and ground connectors, for mounting on ns 35/7.5. Mounting type din rail: 35 mm. Colour jet black ral 9005. Housing material pa 6.6, pbt. Height 98.7 mm. Width 71 mm. Depth 65.7 mm.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Nominal discharge surge current (8/20)
20 kA
Max. continuous voltage AC
275 V
Max. continuous voltage DC
30 V
Voltage protection level
1.5 kV
Voltage protection level L-N
1.35 kV
Voltage protection level N-PE
1.6 kV
Integrated backup fuse
No
Mounting method
Other
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
35 mm²
Max. conductor cross section flexible (fine-strand)
25 mm²
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)i
Other
