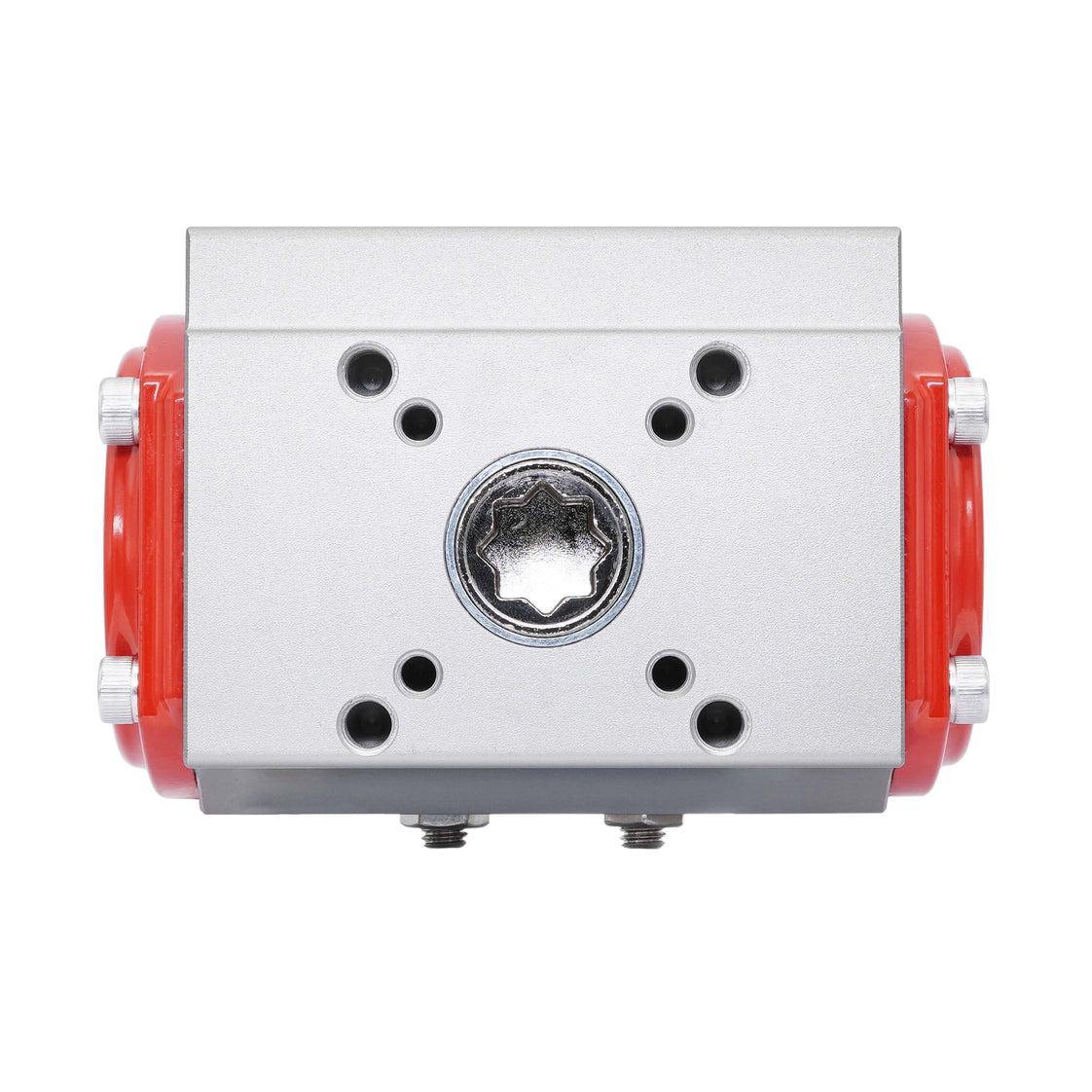

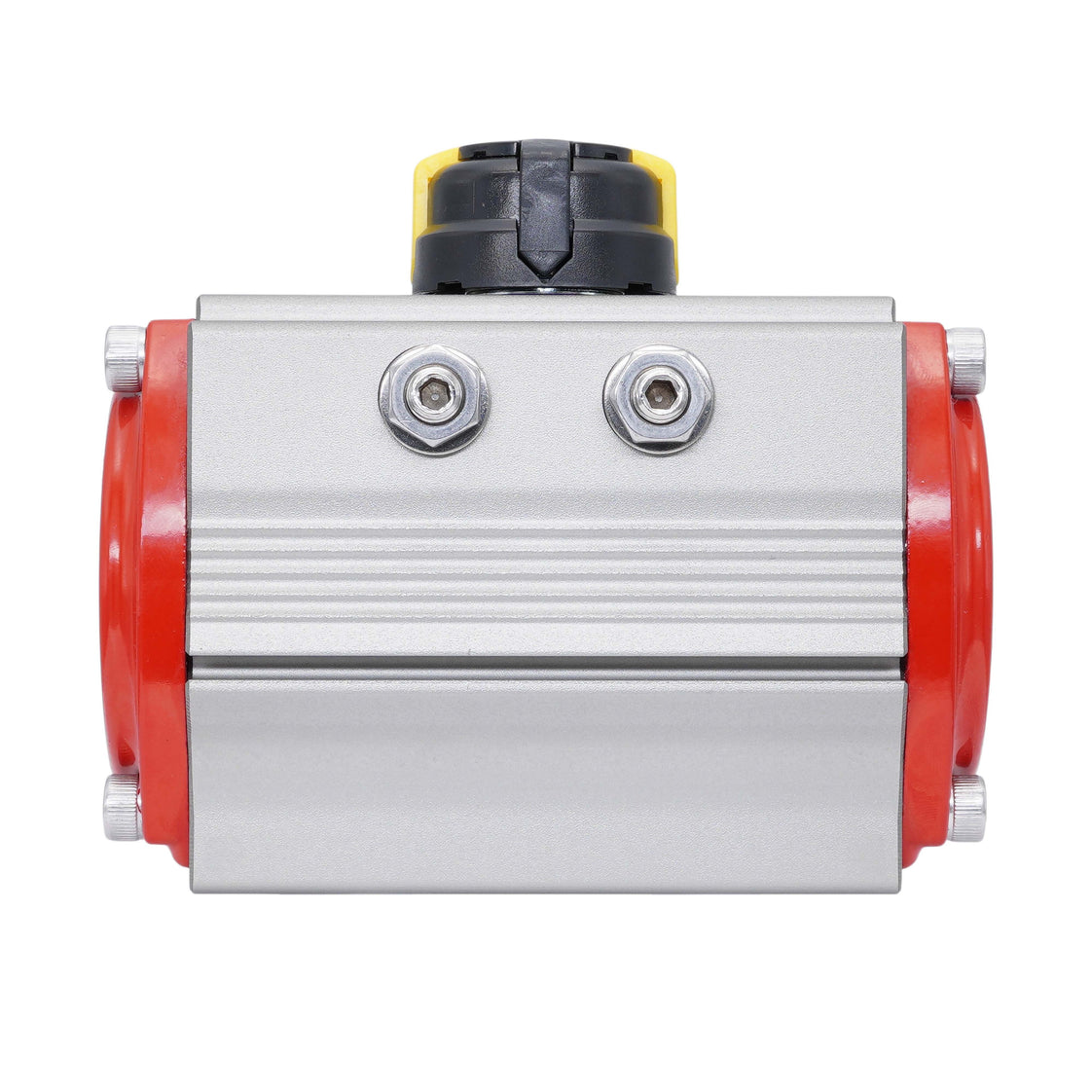

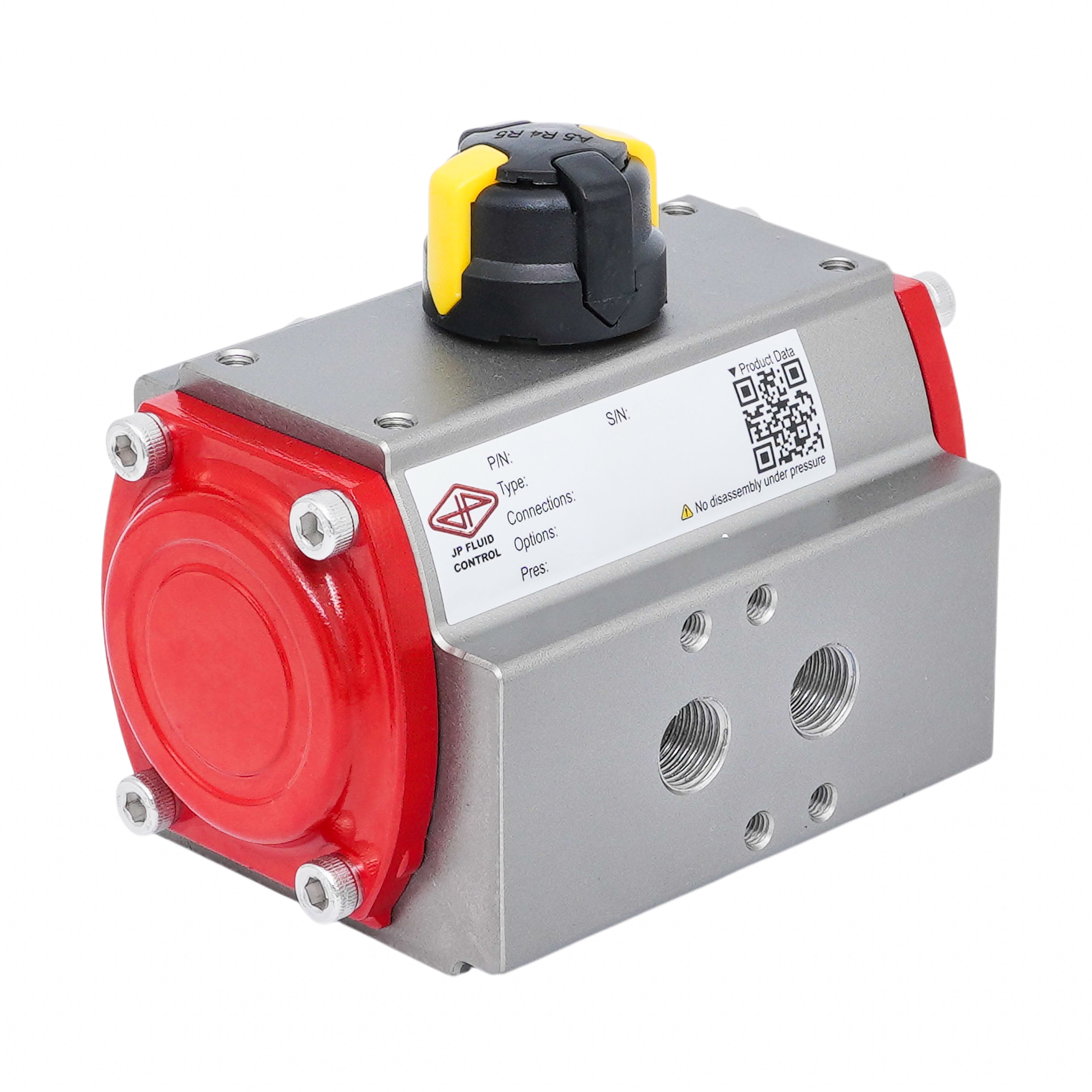

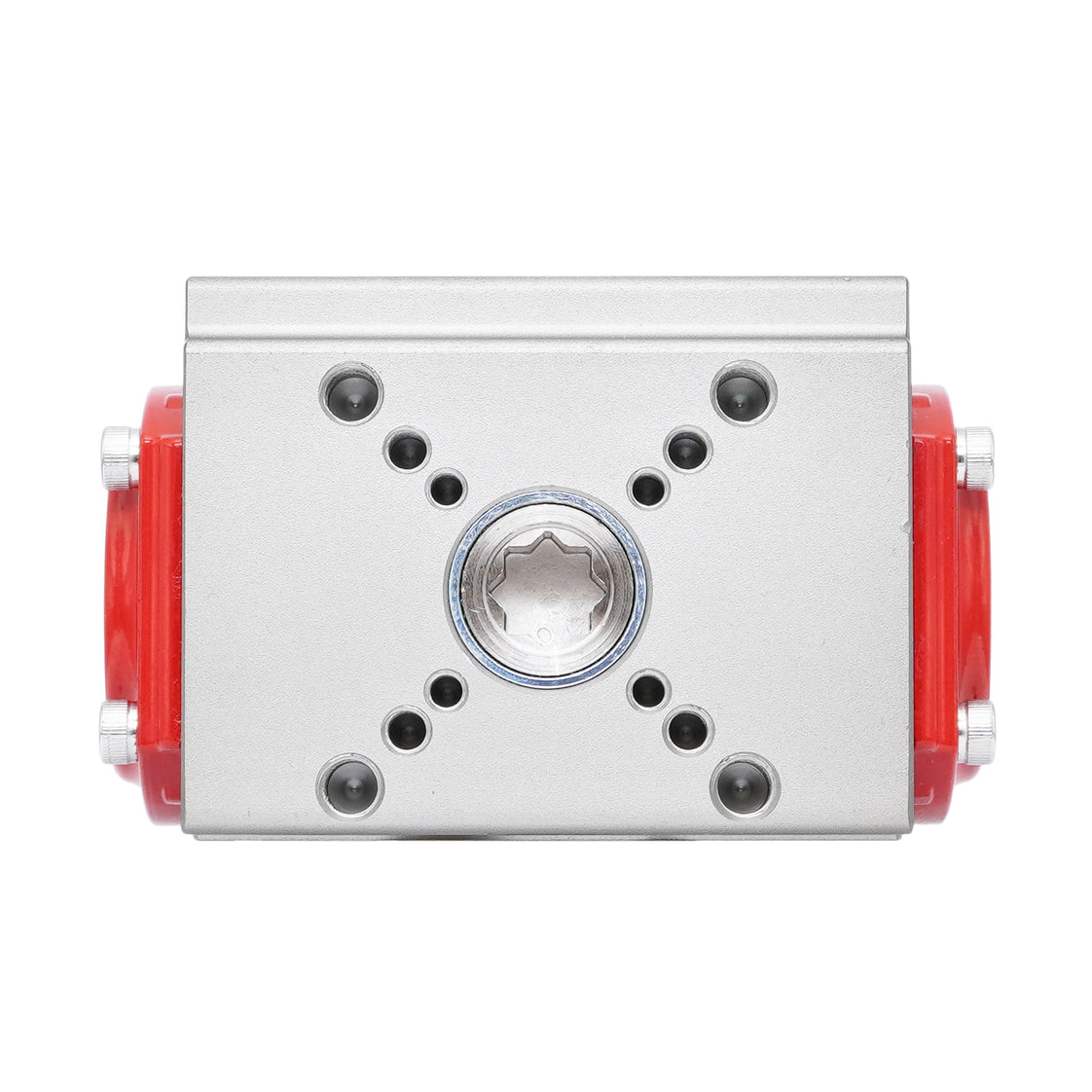

Pneumatic Actuator Rack & Pinion Double Acting 33.2Nm at 6bar F04 - PR65D-F04
This double-acting pneumatic actuator is ideal for quarter-turn valves like ball or butterfly valves. The rack-and-pinion mechanism delivers a constant torque of 33.2 Nm at 6 bar (24.48 lb-ft @ 87 psi) with an input range of 3 - 8 bar (43-116 psi). It fits ISO 5211 F04 valves with a 14 mm star connection. Suitable for -20 to 80 °C (-4 to 176 °F) with an NBR seal. The 35-micron hard anodized aluminum body and polyester coated end covers ensure durability. Features include: mounting holes for Namur 1/4 inch solenoid valves, a 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes, BSPP air ports, stopper bolts to adjust end positions, a sensor mounting groove, and a clear position indicator. Lifespan 500,000+ cycles.
- Regular price
- £33.39
Description

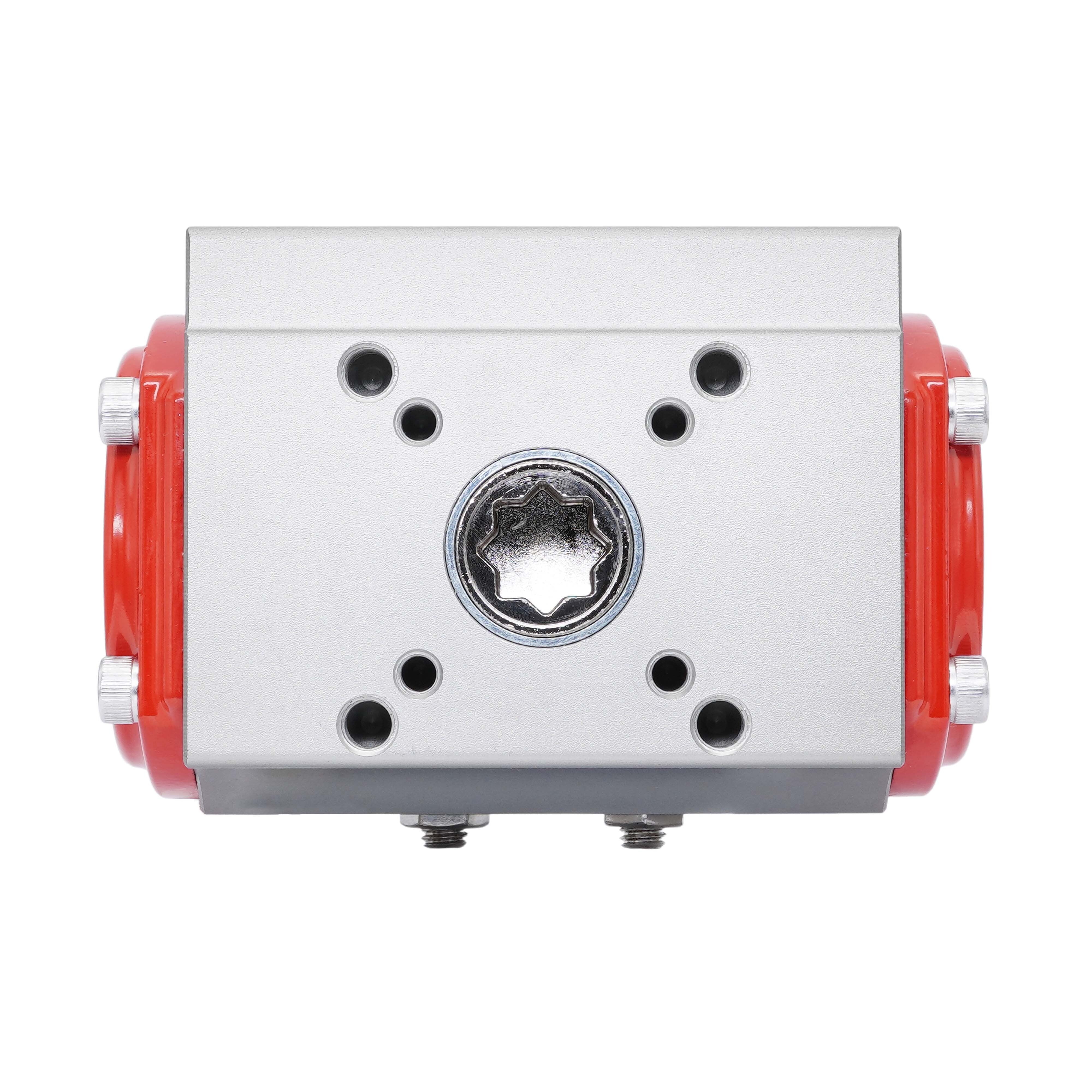

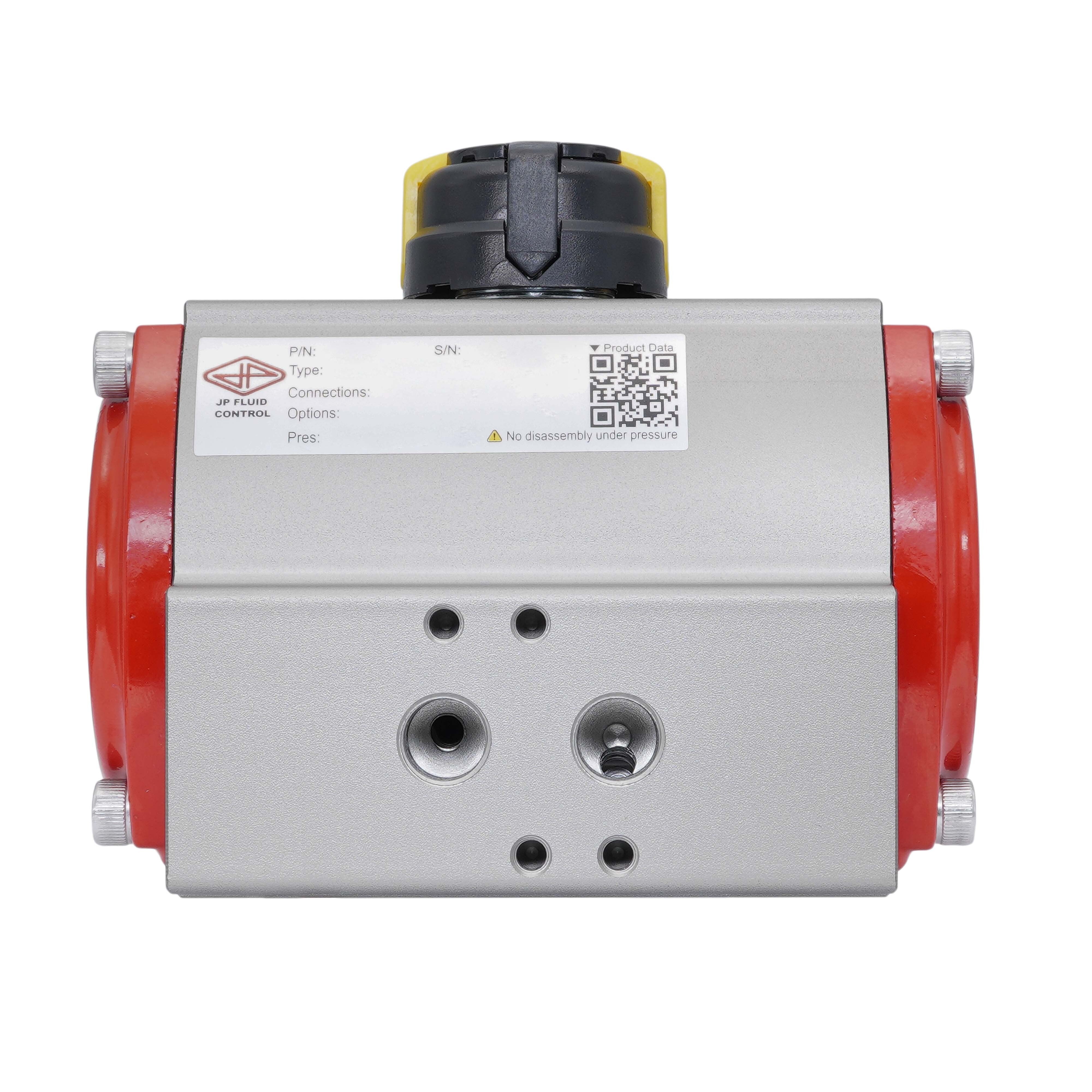

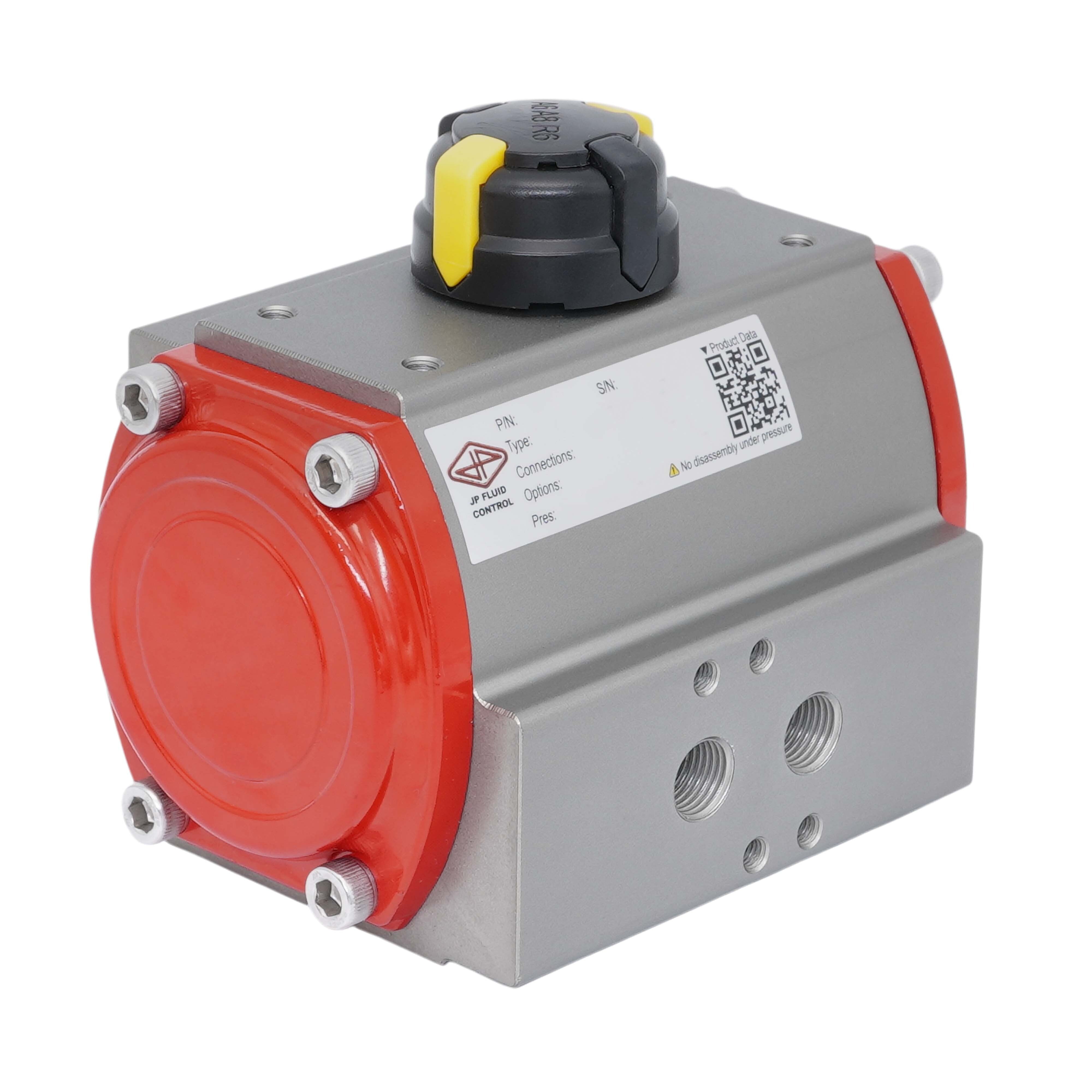

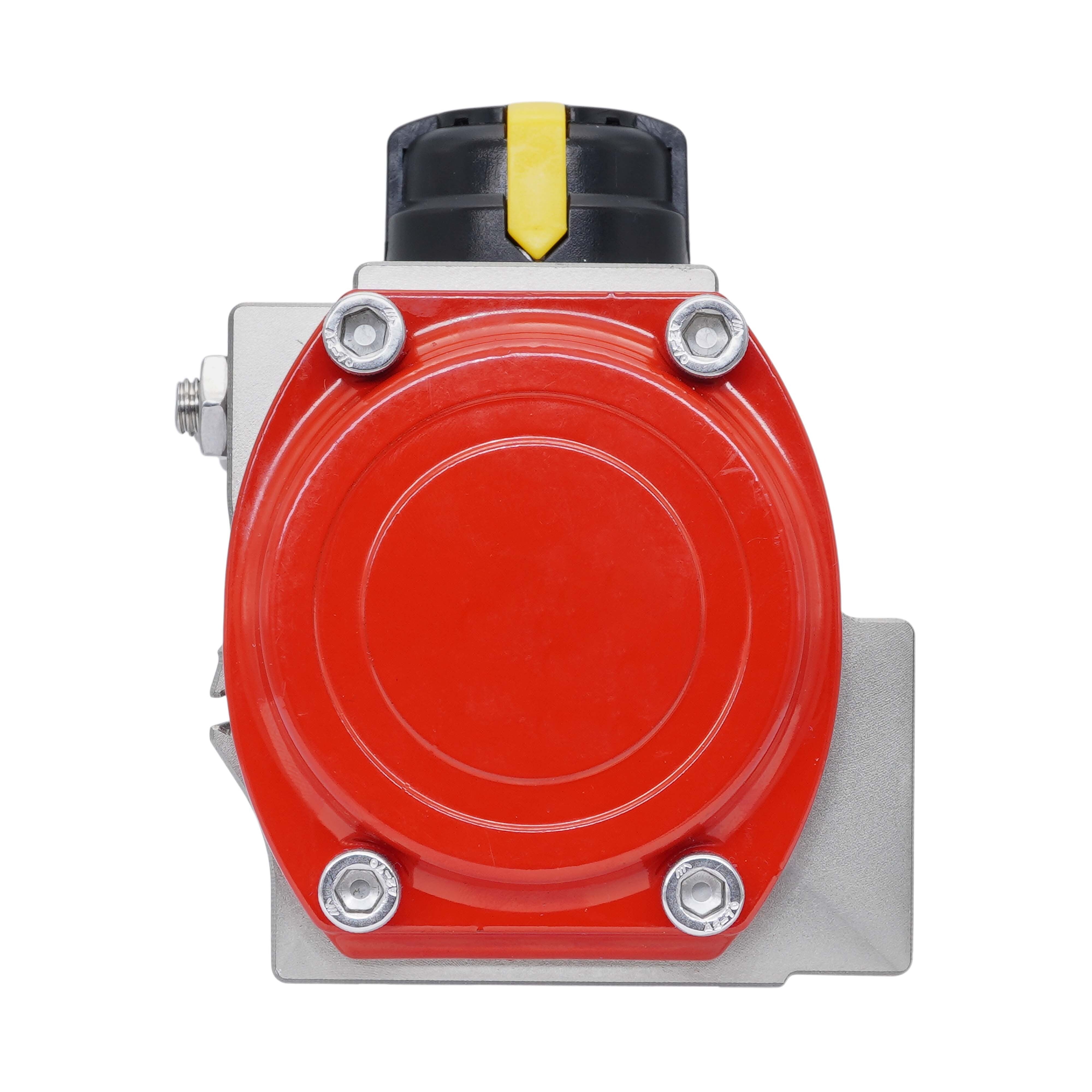

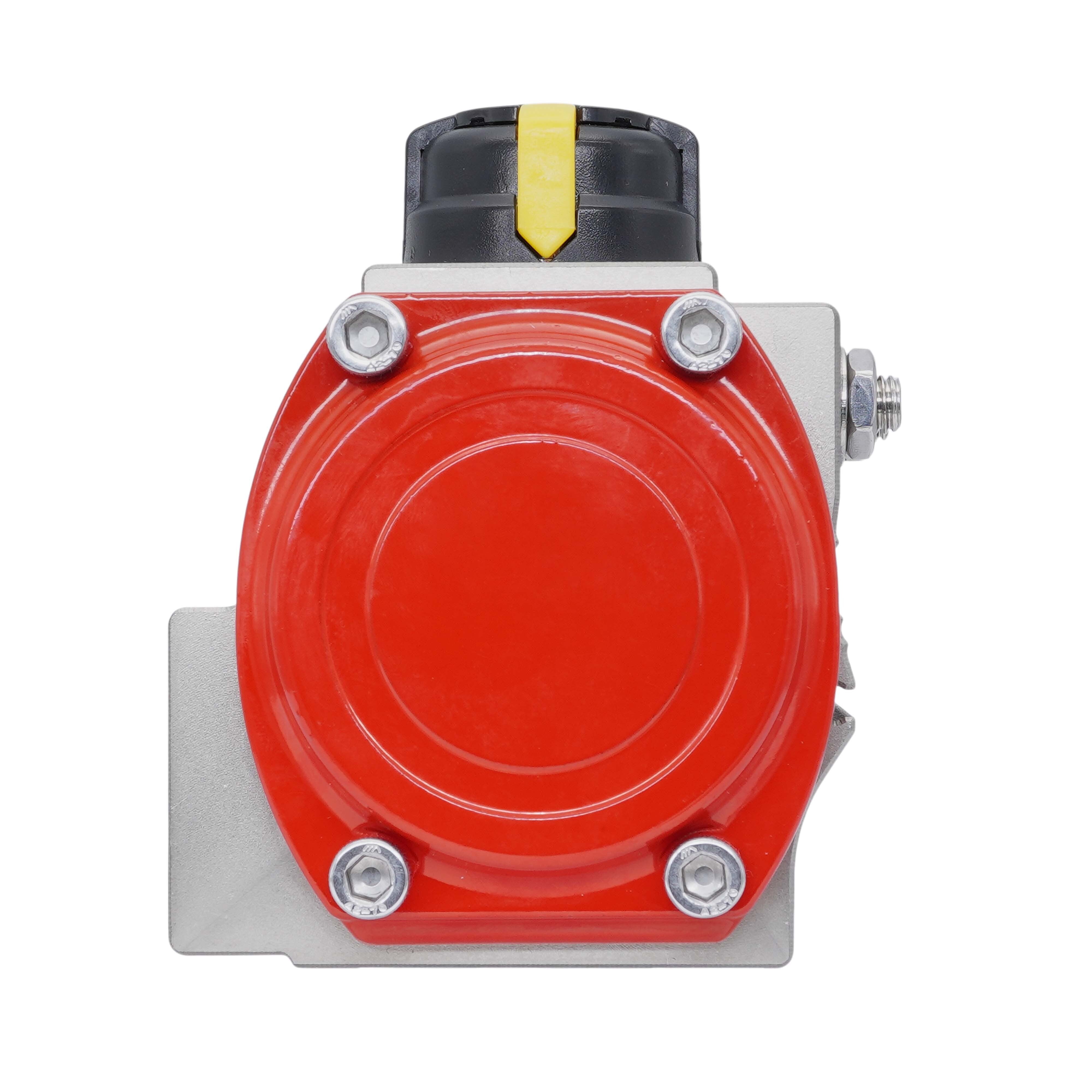

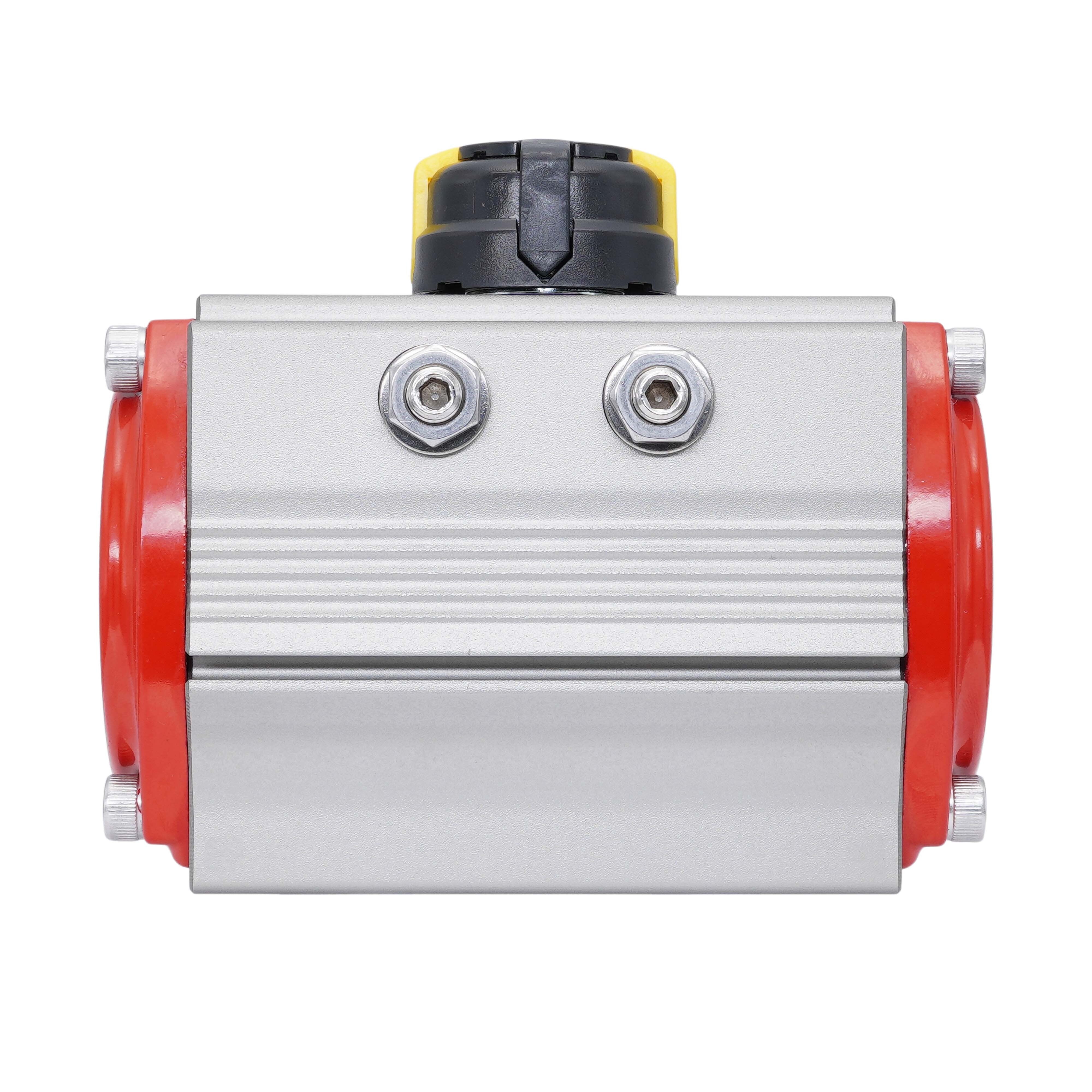

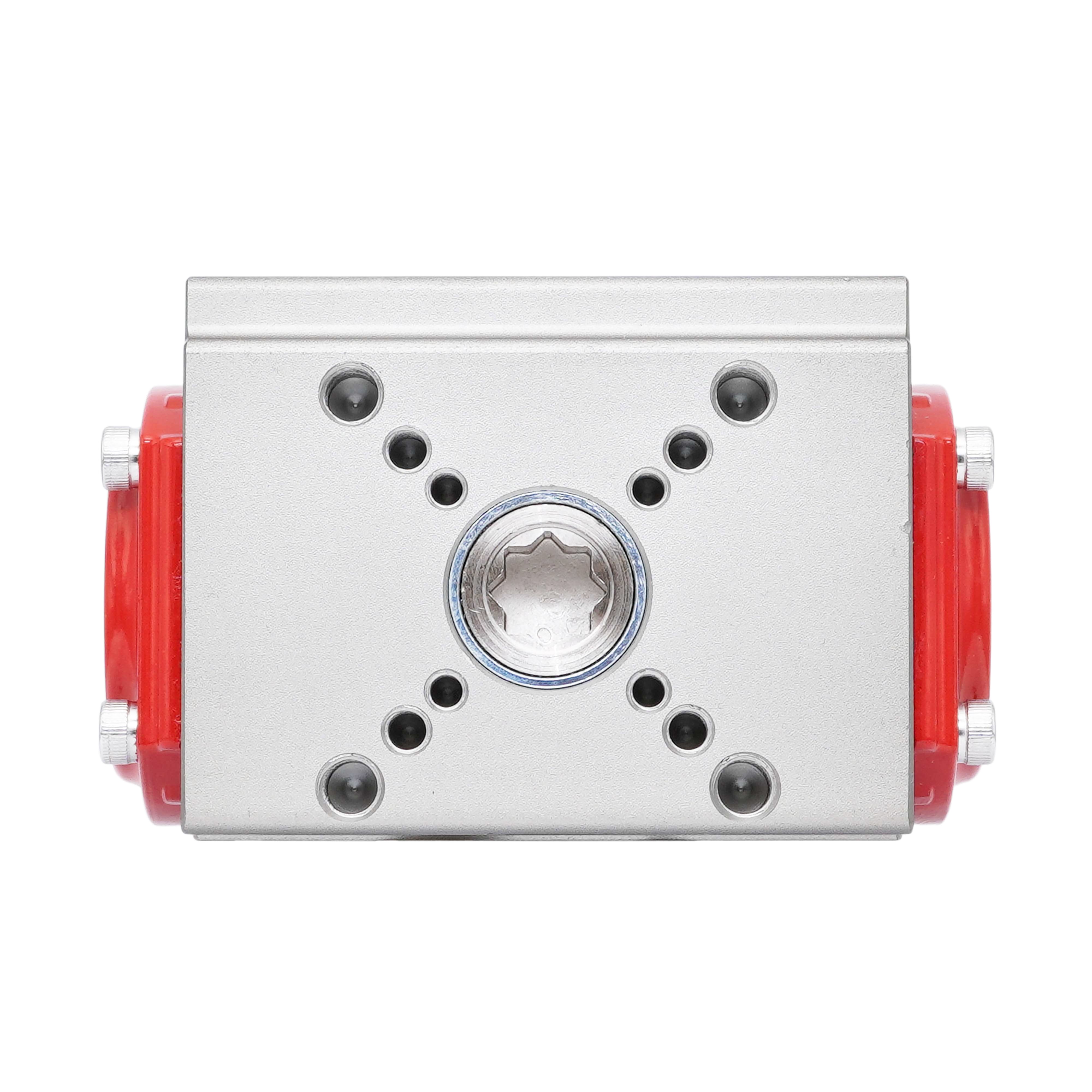

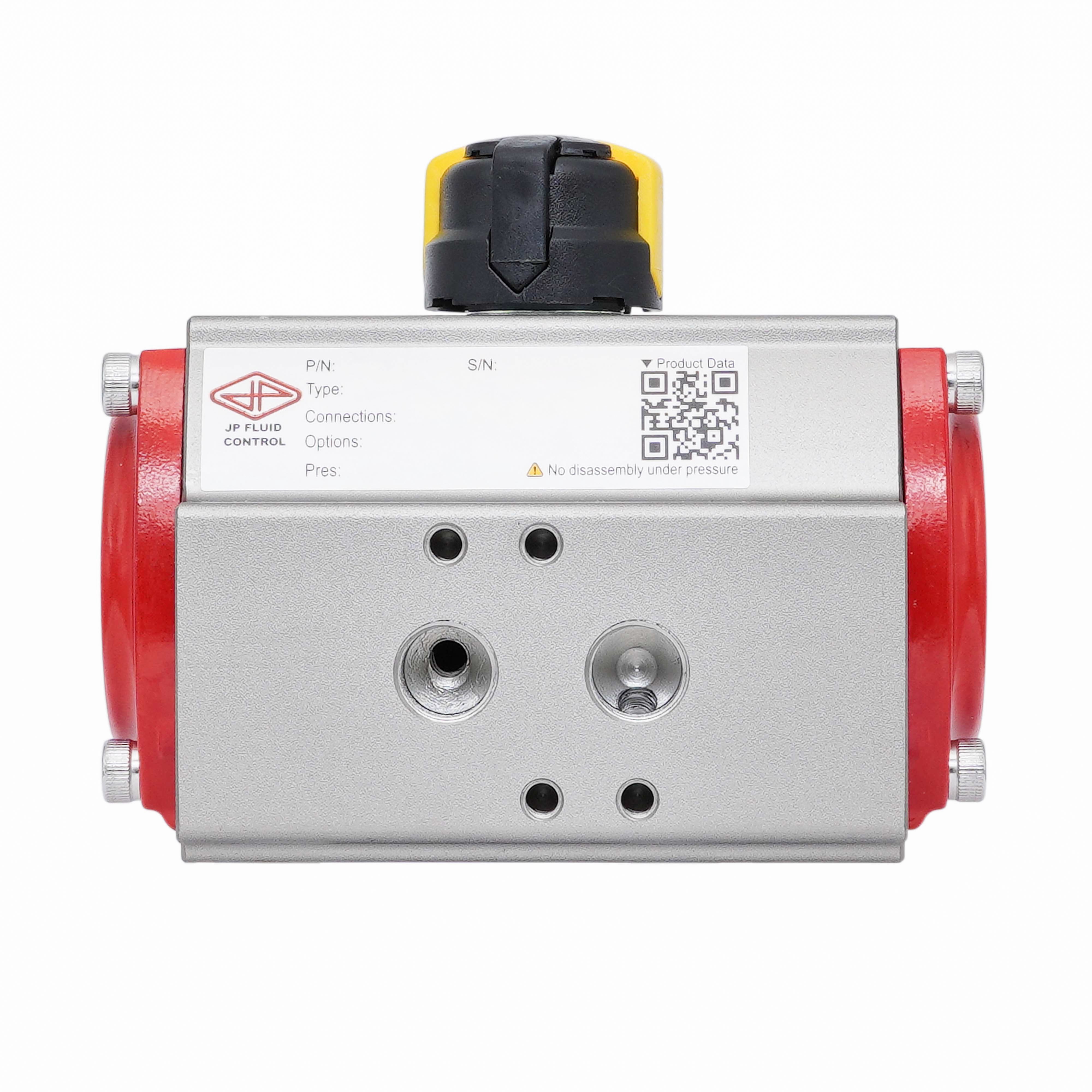

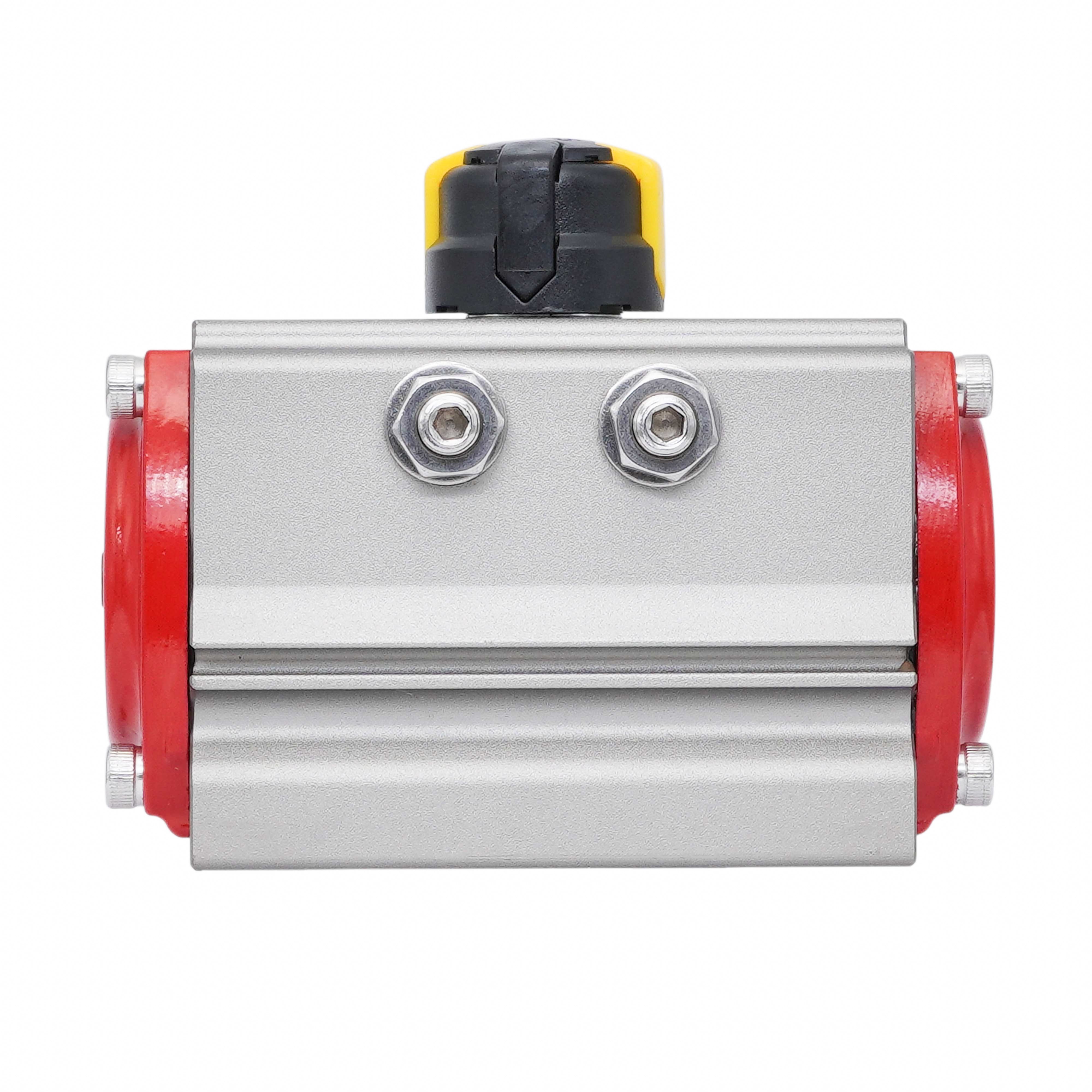

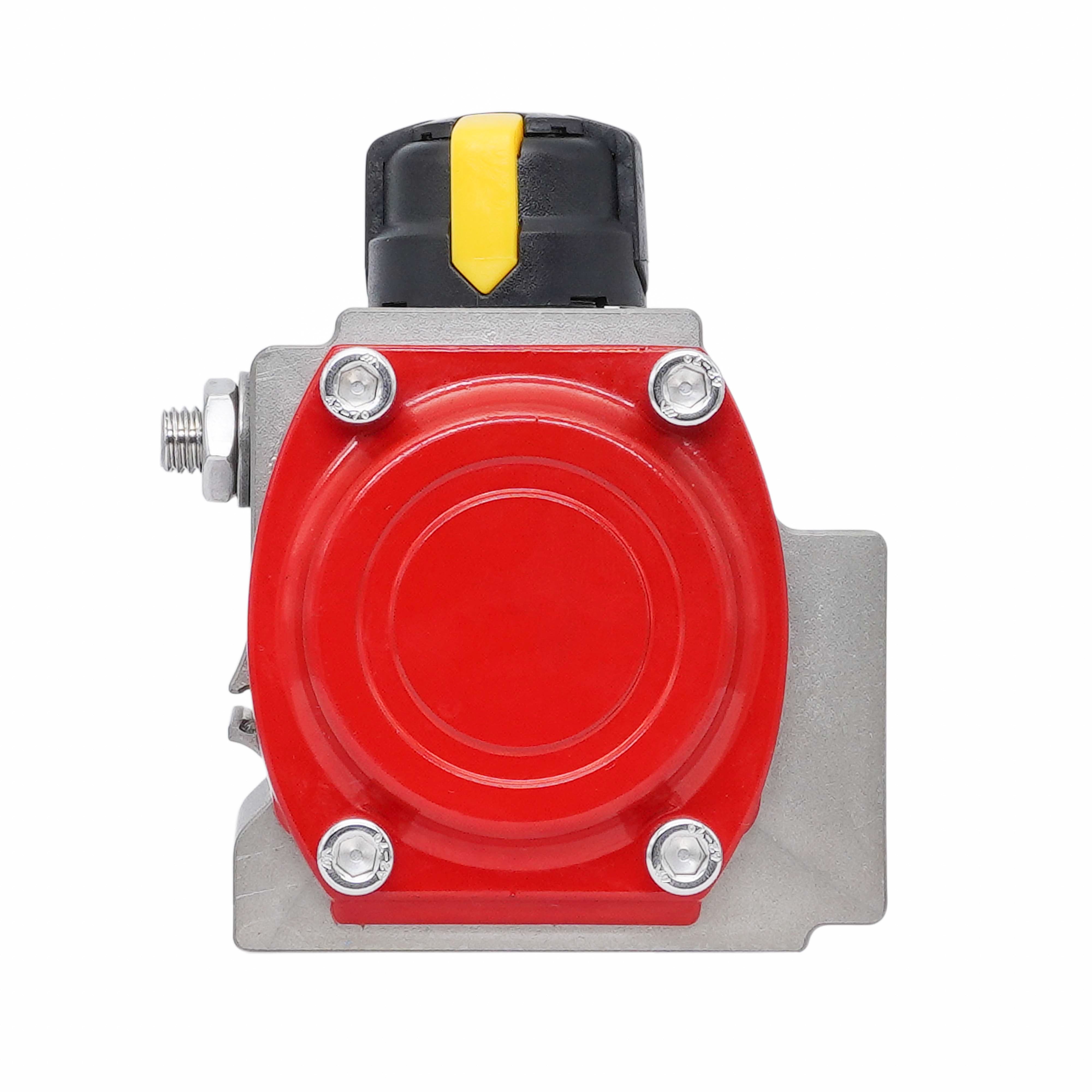

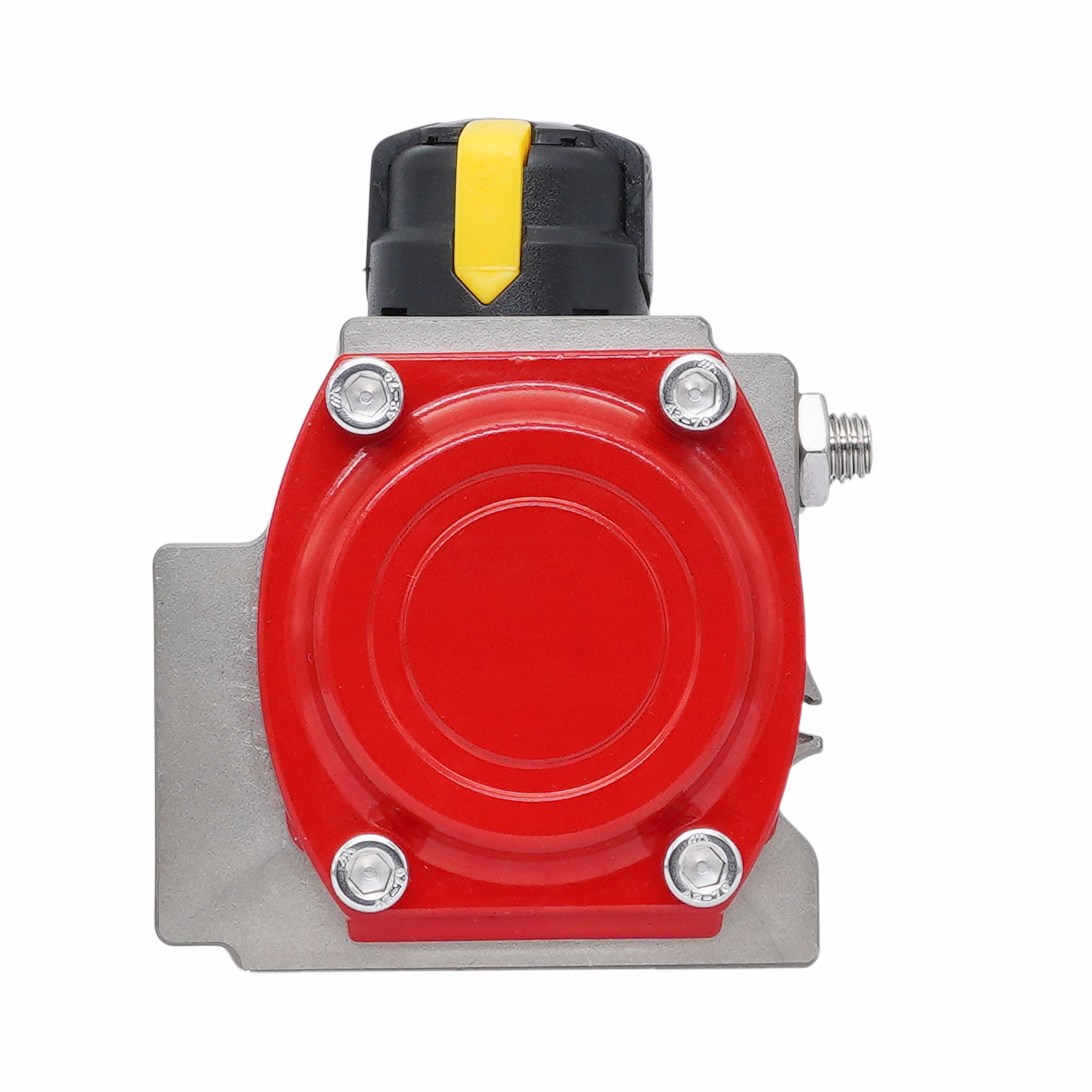

This double-acting pneumatic actuator is ideal for quarter-turn valves like ball or butterfly valves. The rack-and-pinion mechanism delivers a constant torque of 33.2 Nm at 6 bar (24.48 lb-ft @ 87 psi) with an input range of 3 - 8 bar (43-116 psi). It fits ISO 5211 F04 valves with a 14 mm star connection. Suitable for -20 to 80 °C (-4 to 176 °F) with an NBR seal. The 35-micron hard anodized aluminum body and polyester coated end covers ensure durability. Features include: mounting holes for Namur 1/4 inch solenoid valves, a 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes, BSPP air ports, stopper bolts to adjust end positions, a sensor mounting groove, and a clear position indicator. Lifespan 500,000+ cycles. Comes with square adapter, bolts, and washers (M5, M6, M8).
Pros:
- Double-acting with 33.2 Nm torque at 6 bar
- Fits ISO 5211 F04 with 14 mm star
- Direct mounting of 1/4 Namur solenoid valve possible
- Guaranteed 500,000+ cycles
Cons:
- No ATEX or SIL certificate
