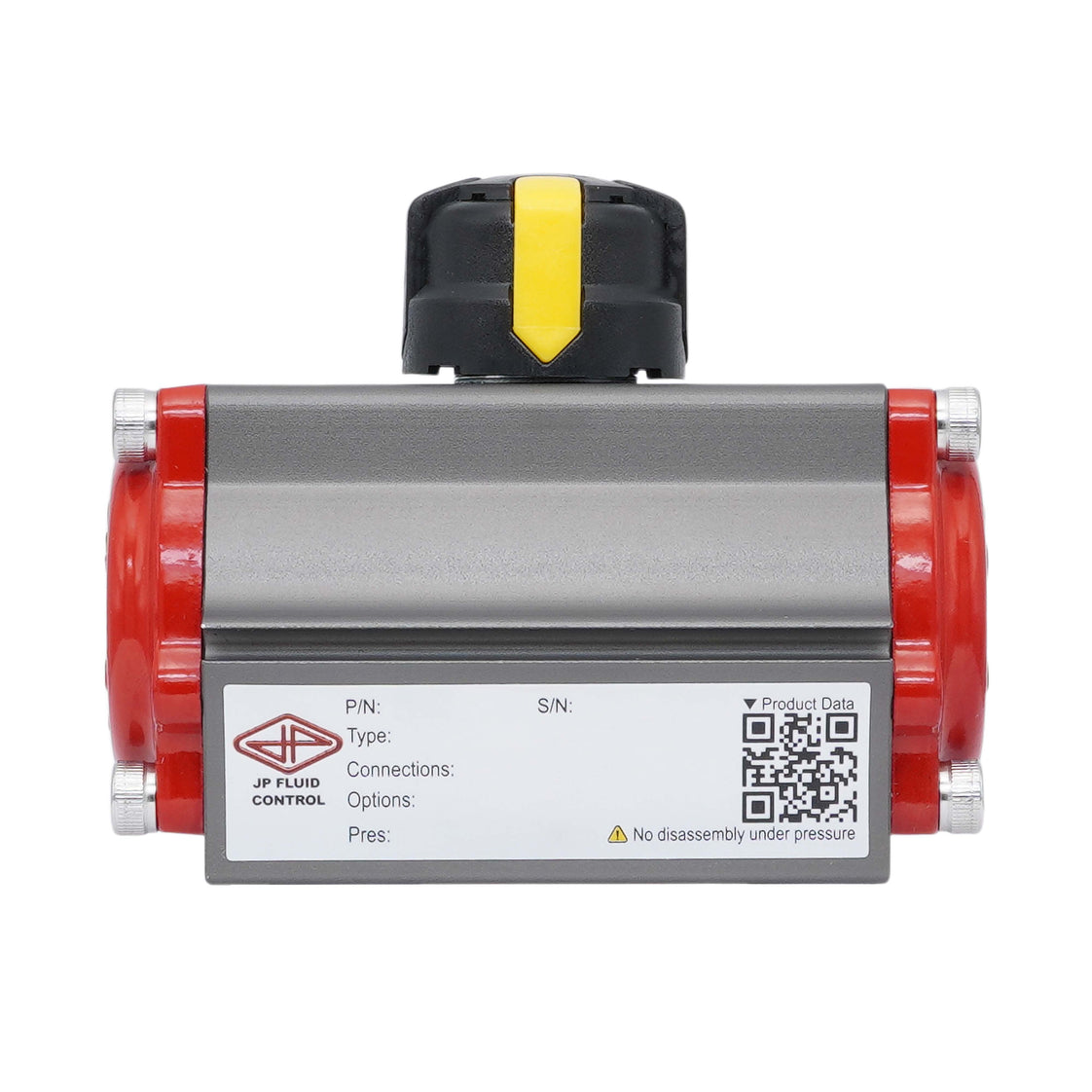

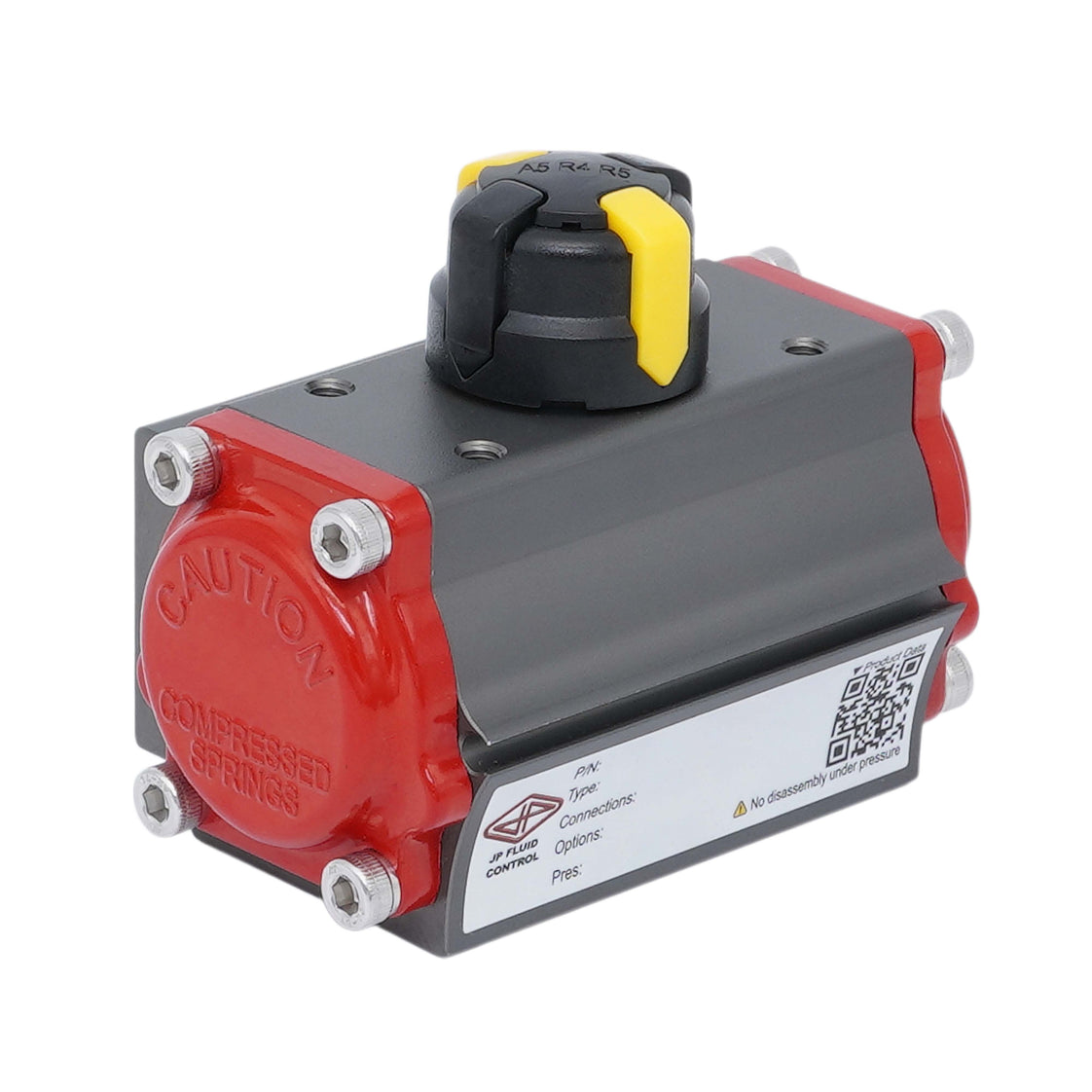

Pneumatic Actuator Rack & Pinion Spring Opening 1.4Nm @ 6bar F03/F05 - PR02B

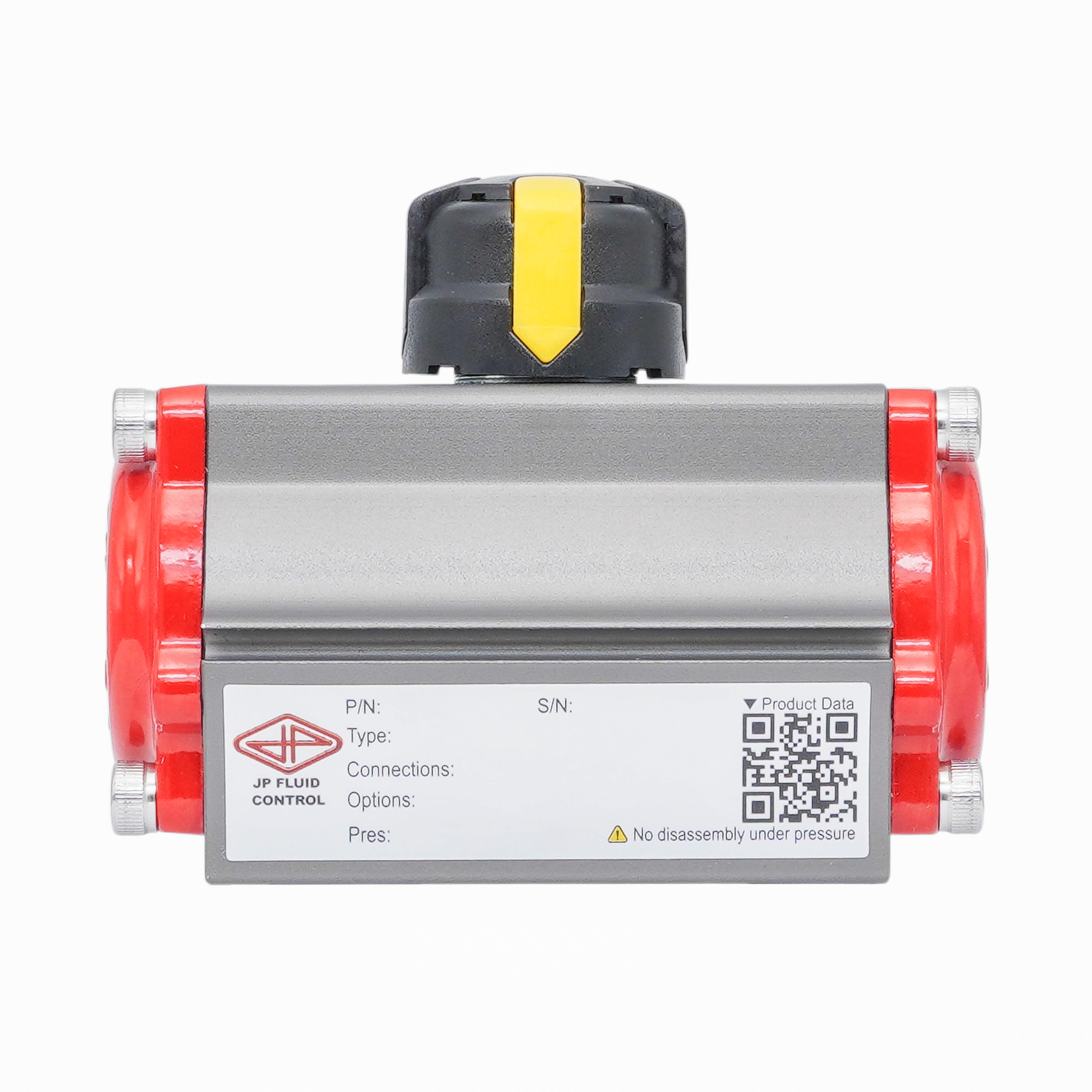

This single-acting pneumatic actuator is ideal for quarter-turn valves like ball or butterfly valves. The rack-and-pinion mechanism delivers a constant torque of 1.4 Nm at 6 bar (1.03 lb-ft @ 87 psi) with an input range of 3 - 8 bar (43-116 psi). It fits ISO 5211 F03/F05 valves with a 9 mm star connection. Suitable for -20 to 80 °C (-4 to 176 °F) with an NBR seal. The 35-micron hard anodized aluminum body and polyester coated end covers ensure durability. Features include: mounting holes for Namur 1/4 inch solenoid valves, a 50 x 25 mm interface for VDI/VDE 3845 limit switch boxes, BSPP air ports, stopper bolts to adjust end positions, a sensor mounting groove, and a clear position indicator. Lifespan 500,000+ cycles.
- Regular price
- £125.50
Description

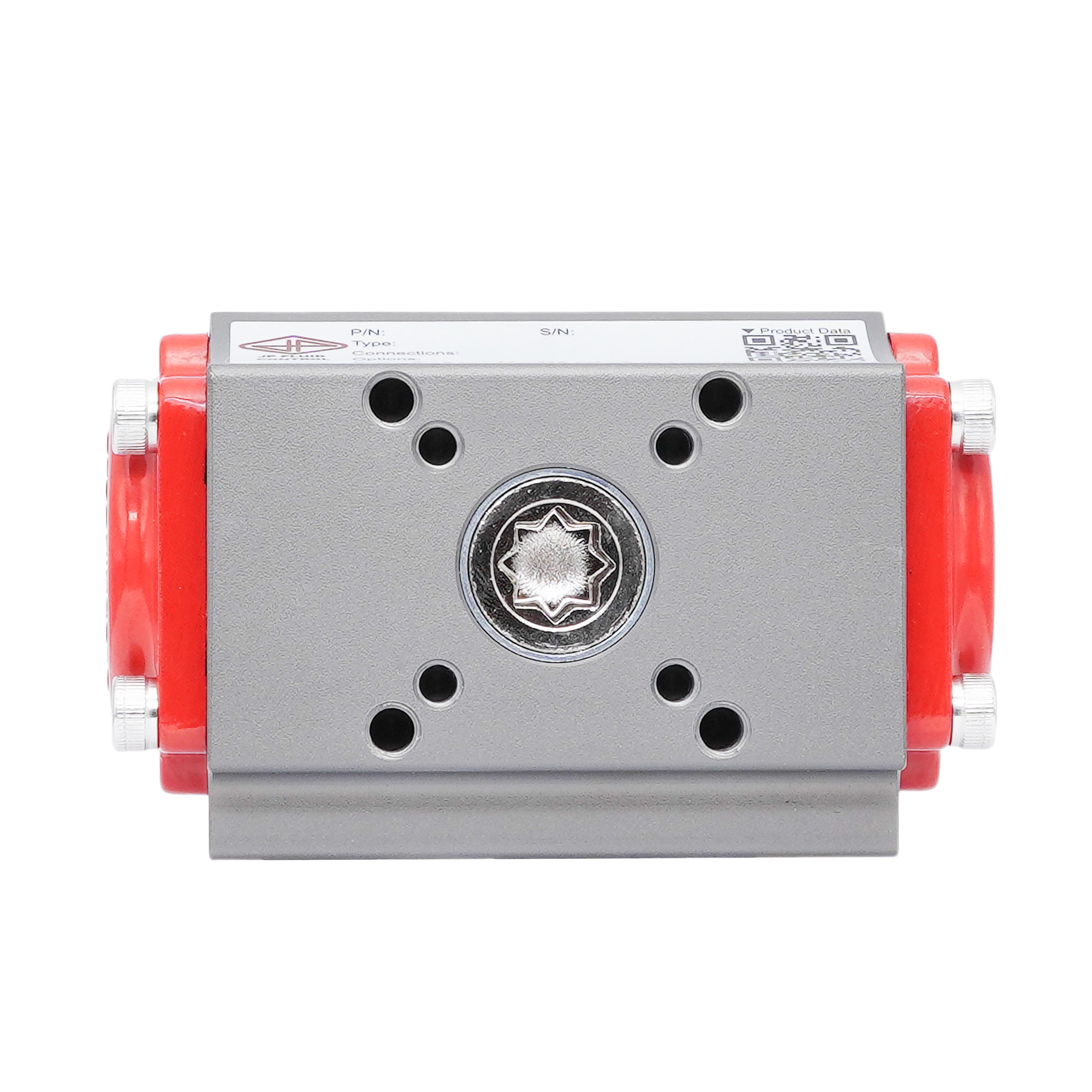

This single-acting pneumatic actuator is ideal for quarter-turn valves like ball or butterfly valves. The rack-and-pinion mechanism delivers a constant torque of 1.4 Nm at 6 bar (1.03 lb-ft @ 87 psi) with an input range of 3 - 8 bar (43-116 psi). It fits ISO 5211 F03/F05 valves with a 9 mm star connection. Suitable for -20 to 80 °C (-4 to 176 °F) with an NBR seal. The 35-micron hard anodized aluminum body and polyester coated end covers ensure durability. Features include: mounting holes for Namur 1/4 inch solenoid valves, a 50 x 25 mm interface for VDI/VDE 3845 limit switch boxes, BSPP air ports, stopper bolts to adjust end positions, a sensor mounting groove, and a clear position indicator. Lifespan 500,000+ cycles. Comes with square adapter (F03/F05/F07), bolts, and washers (M5, M6, M8).
Pros:

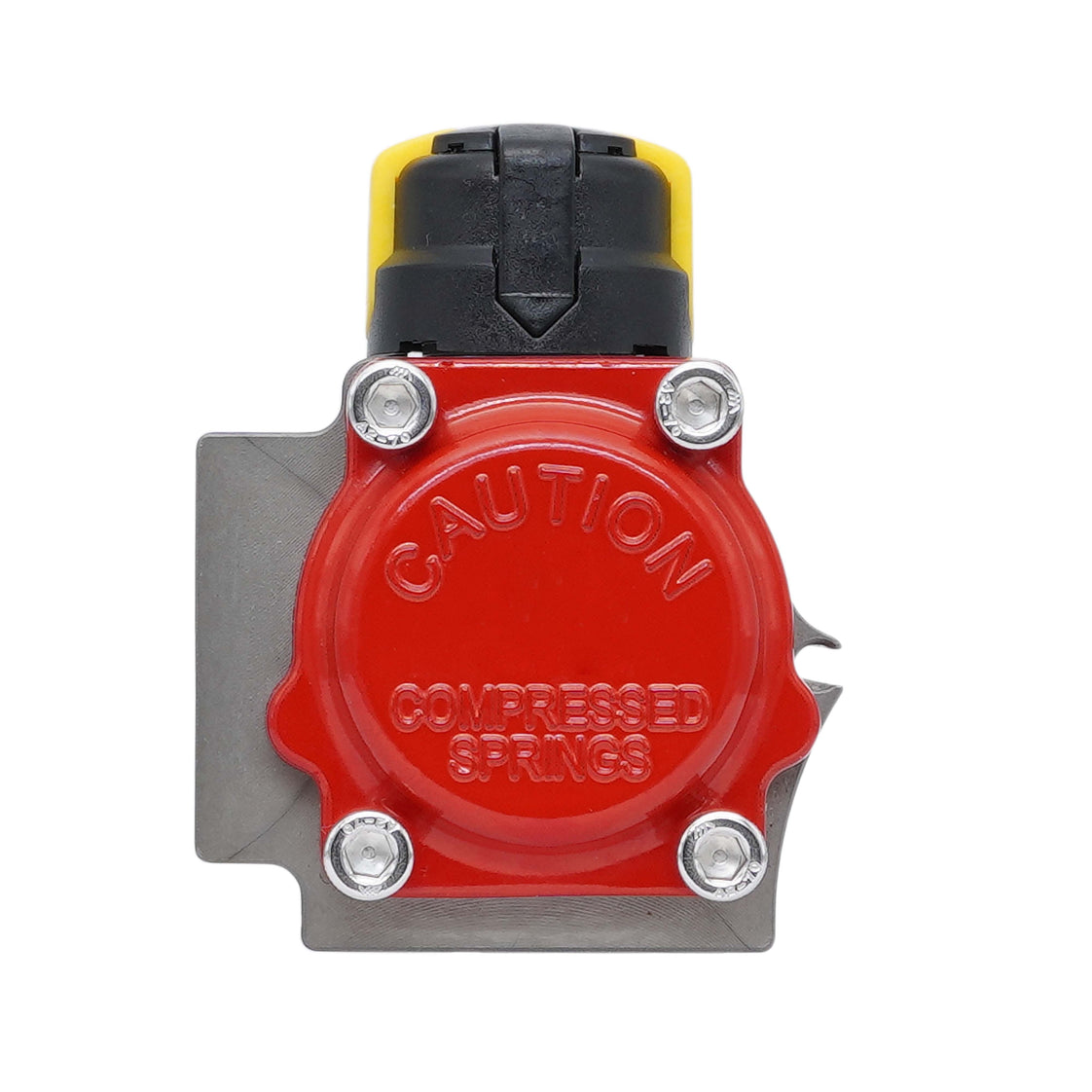

- Spring-opening: 1.4 Nm opening, 6.6 Nm closing at 6 bar

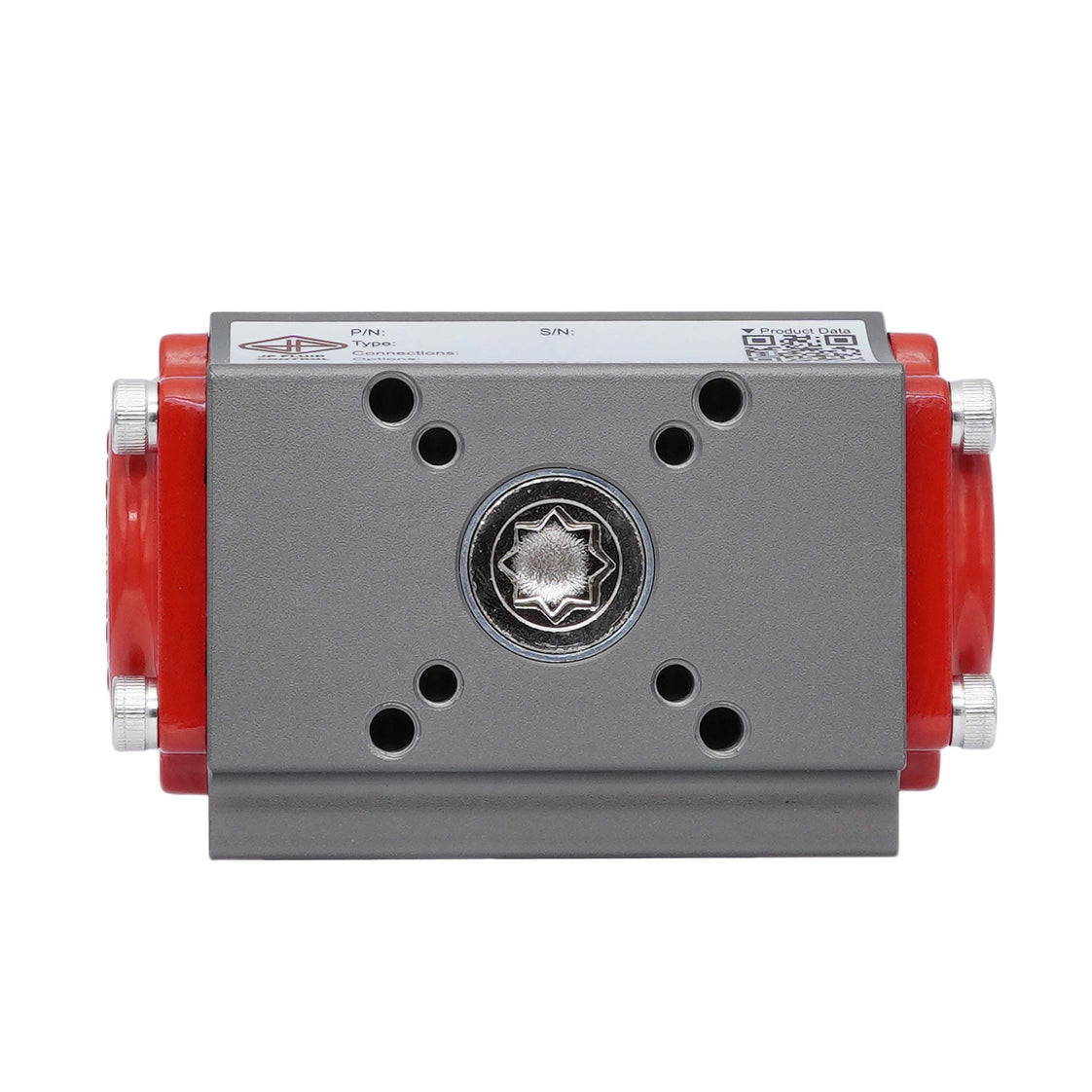

- Fits ISO 5211 F03/F05 with 9 mm star

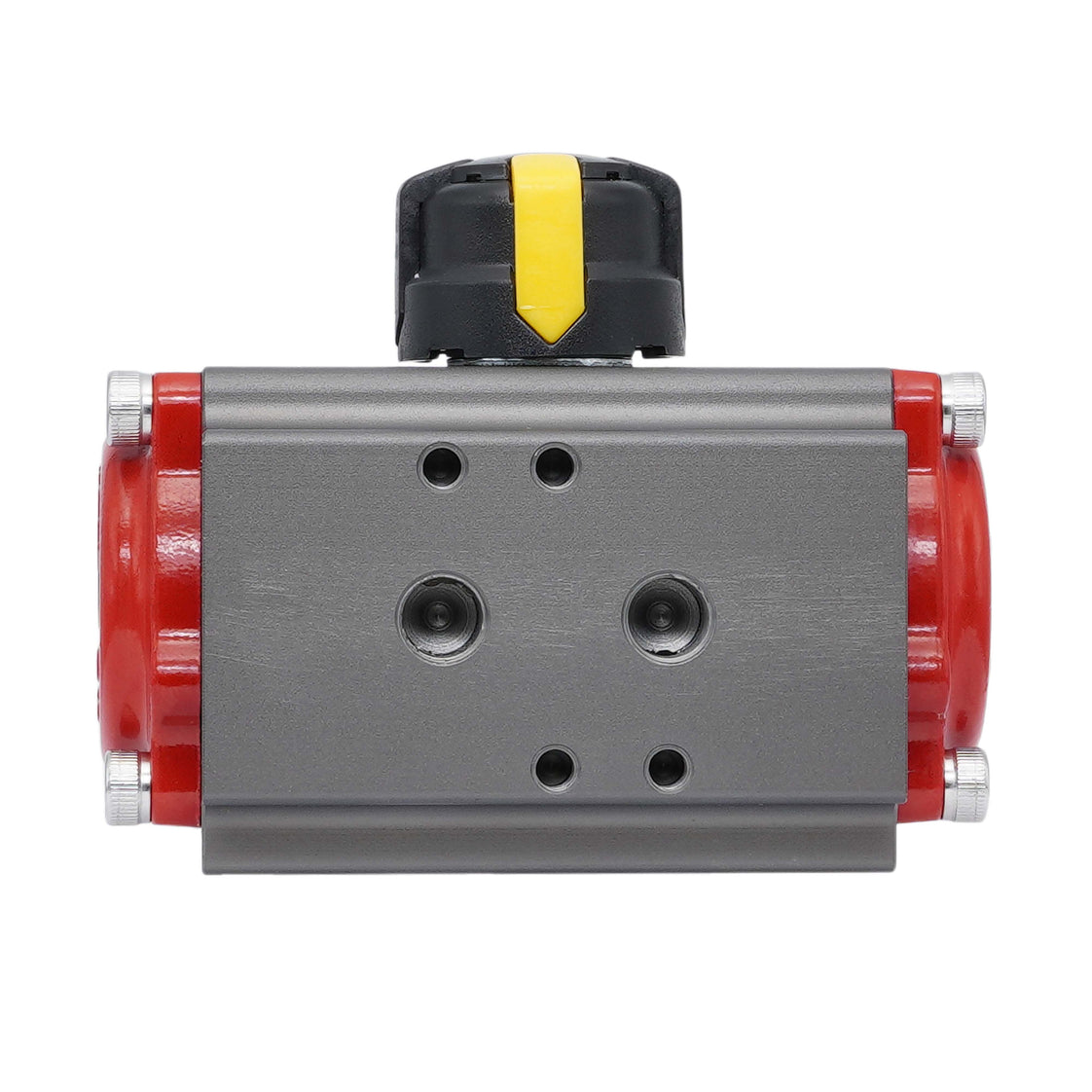

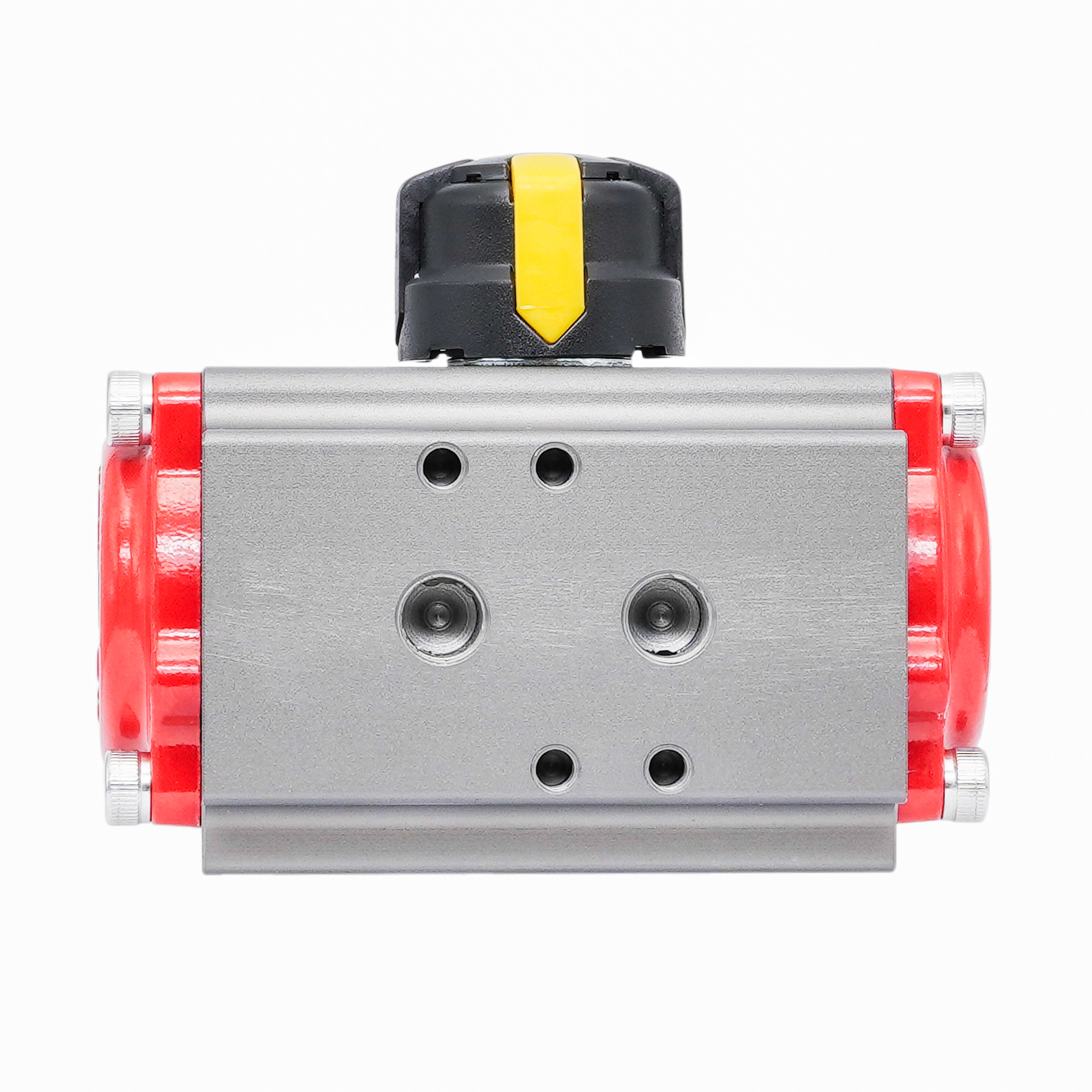

- Direct mounting of 1/4 Namur solenoid valve possible
- Guaranteed 500,000+ cycles
Cons:
- No ATEX or SIL certificate
