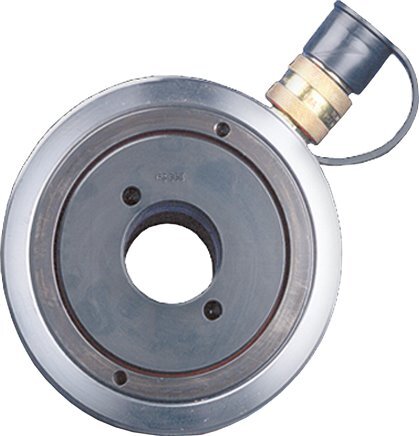

Power Team Hollow Piston 20 Ton Hydraulic Jack 152.4 mm Stroke

Power Team Hollow Piston 20 Ton Hydraulic Jack 152.4 mm Stroke
Power Team Hollow Piston 20 Ton Hydraulic Jack 152.4 mm Stroke
Reference: H224M
Brand: Power Team

This is a Power Team single-acting, spring return, hollow piston 20 ton hydraulic jack cylinder designed for cable pulling and stretching, pulling out bolts, screws and pressure spindles. The jack has a stroke of 152.4 mm and a 27.4 mm center hole in the piston.

View all
£1957.10
excl VAT
In stock +2 days On request On request
For a higher quantity than 0 of product H224M, the lead time of the order will increase by 2 days. The item is not online available in your chosen quantity, there are 1 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.8 / 5

435 reviews at Google

Description
Specifications
Downloads

Description

This is a Power Team single-acting, spring return, hollow piston 20 ton hydraulic jack cylinder designed for cable pulling and stretching, pulling out bolts, screws and pressure spindles. The jack has a stroke of 152.4 mm and a 27.4 mm center hole in the piston.

Pros:

  • Maximum operating pressure of up to 700 bar
  • Comes with an assembled coupling sleeve 9796
  • Especially suitable for cable pulling and stretching, pulling out bolts, screws and pressure spindles

Downloads

Specifications

Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
152.4
Overall height retracted (mm)
308
Internal diameter (mm)
If the diameter is too small, the pressure drop increases.
98.4
Center hole diameter (mm)
27.4
Force (t)
20
Max pressure (bar)
700
