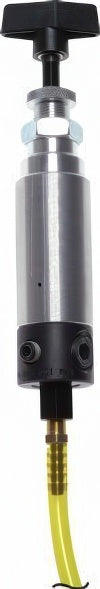

Power Team Pressure Limiting Valve 700 bar
This is a Power Team pressure limiting valve used with single or double acting hydraulic cylinders. It is capable of adjusting the maximum operating pressure below the opening pressure of the pump’s overpressure valve. Max operating pressure is 700 bar with a flow quantity range of 0.27 – 22.7 l/min. There is no difference between the inputs and outputs. There are 3 input/output female connection ports (two NPT 3/8” and one NPT 1/8”). The oil bleed hose connection is a female NPT 1/8” port and it comes with a 1 m hose.
- Regular price
- £524.40
Description
This is a Power Team pressure limiting valve used with single or double acting hydraulic cylinders. It is capable of adjusting the maximum operating pressure below the opening pressure of the pump’s overpressure valve. Max operating pressure is 700 bar with a flow quantity range of 0.27 – 22.7 l/min. There is no difference between the inputs and outputs. There are 3 input/output female connection ports (two NPT 3/8” and one NPT 1/8”). The oil bleed hose connection is a female NPT 1/8” port and it comes with a 1 m hose.
