Image may vary slightly
See specifications for accurate information.
Reference: P27NS
Brand: Goetze

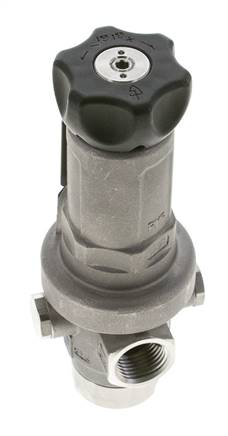

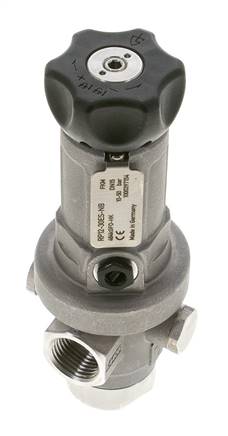

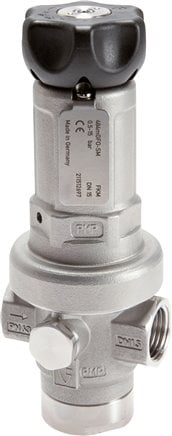

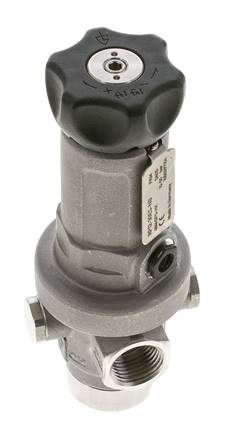

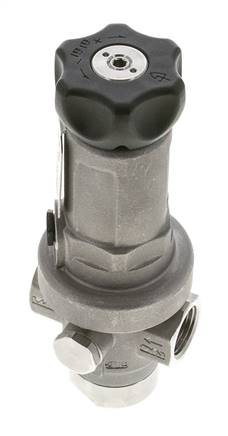

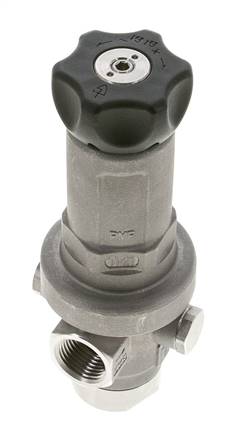

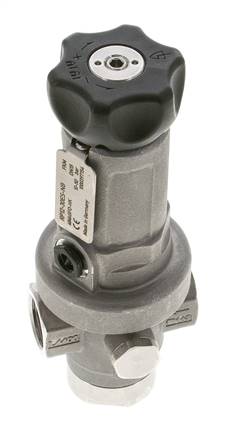

This G 1/2 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 10.0 to 50.0 bar (145 to 725 psi). The max flow rate is 1900 l/min (always use the flow chart for correct sizing). Suitable for a 60.0 bar (870 psi) max input and temperatures between -10 and 120 °C (14 and 248 °F).

View all
Regular price
£485.54
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 10.0 to 50.0 bar (145 to 725 psi). This model has G 1/2 inch ports. The maximum flow rate is 1900 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.

The maximum input pressure is 60.0 bar (870 psi) and the temperature range is between -10 and 120 °C (14 and 248 °F). The housing material is made out of stainless steel. This pressure regulator is suitable for gases and liquids.

Mounting brackets need to be ordered separately.
