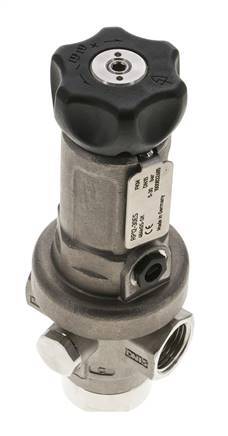

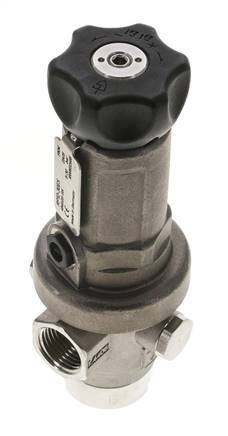

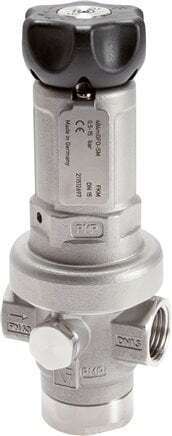

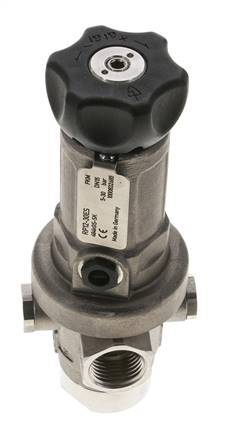

Precision Pressure Regulator G1/2'' 1900 l/min 5.0-30.0bar/72-435psi Stainless Steel
This G 1/2 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 5.0 to 30.0 bar (72 to 435 psi). The regulator is self-relieving. The max flow rate is 1900 l/min (always use the flow chart for correct sizing). Suitable for a 60.0 bar (870 psi) max input and temperatures between -10 and 120 °C (14 and 248 °F).
- Regular price
- £692.45
Description
The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 5.0 to 30.0 bar (72 to 435 psi). This model has G 1/2 inch ports. The maximum flow rate is 1900 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.
The maximum input pressure is 60.0 bar (870 psi) and the temperature range is between -10 and 120 °C (14 and 248 °F). There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The housing material is made out of stainless steel.
Mounting brackets need to be ordered separately.
