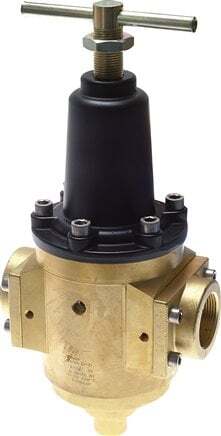

Pressure Regulator G1 1/2'' 15000 l/min 1.0-15.0bar/14-218psi Brass

Pressure Regulator G1 1/2'' 15000 l/min 1.0-15.0bar/14-218psi Brass
Image may vary slightly
See specifications for accurate information.
Reference: P27HU
Brand: Tameson

This G 1 1/2 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 1.0 to 15.0 bar (14 to 218 psi). The regulator is self-relieving. The max flow rate is 15000 l/min (always use the flow chart for correct sizing). Suitable for a 50.0 bar (725 psi) max input and temperatures between -20 and 80 °C (-4 and 176 °F).

View all
Regular price
£1306.72
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between1.0 to 15.0 bar (14 to 218 psi). This model has G 1 1/2 inch ports. The maximum flow rate is 15000 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.

The maximum input pressure is 50.0 bar (725 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The housing material is made out of brass.

Mounting brackets need to be ordered separately.
