Image may vary slightly
See specifications for accurate information.
Reference: P26RR
Brand: Knocks
Mfr. Part: DRI.76 N

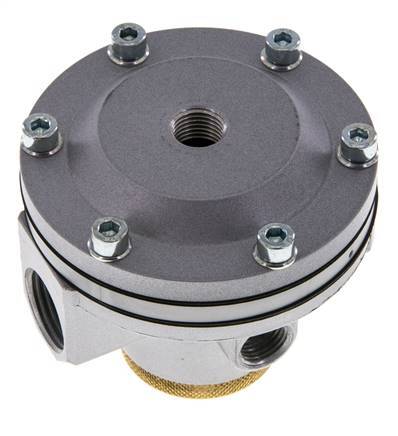

This G 1 1/4 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 0.0 to 20.0 bar (0 to 290 psi). The regulator is self-relieving. The max flow rate is 31500 l/min (always use the flow chart for correct sizing). Suitable for a 40.0 bar (580 psi) max input and temperatures between -10 and 80 °C (14 and 176 °F).

View all
Regular price
£238.44
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

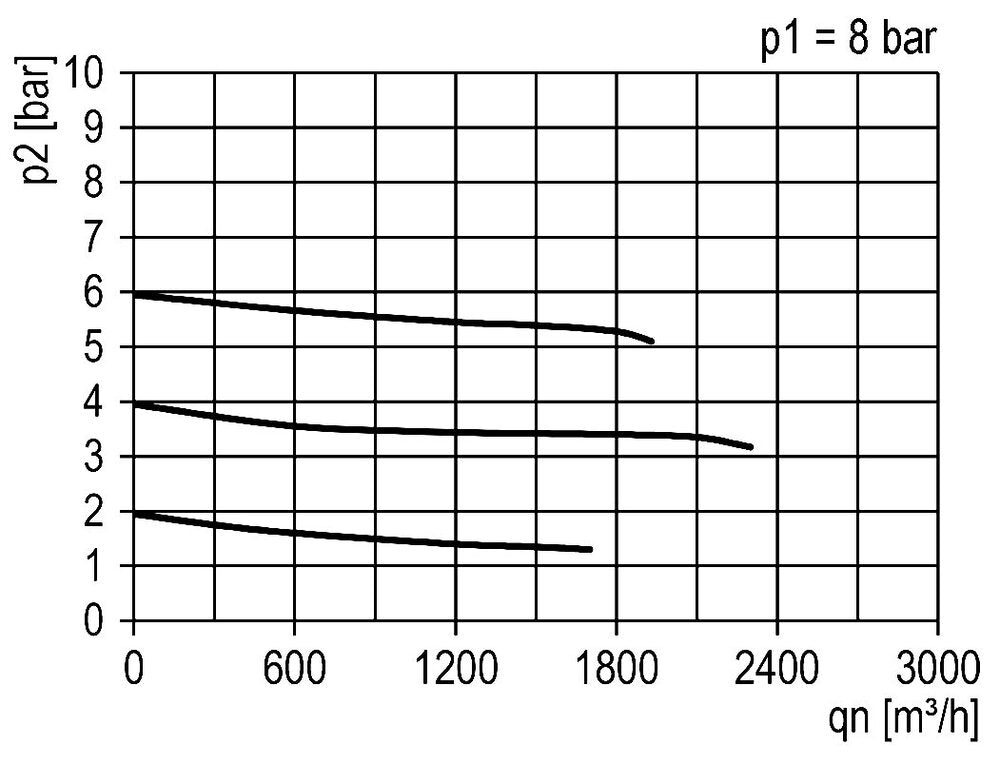

The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.0 to 20.0 bar (0 to 290 psi). This model has G 1 1/4 inch ports. The maximum flow rate is 31500 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve. Note that the pressure regulator controls the output pressure, not the flow rate.

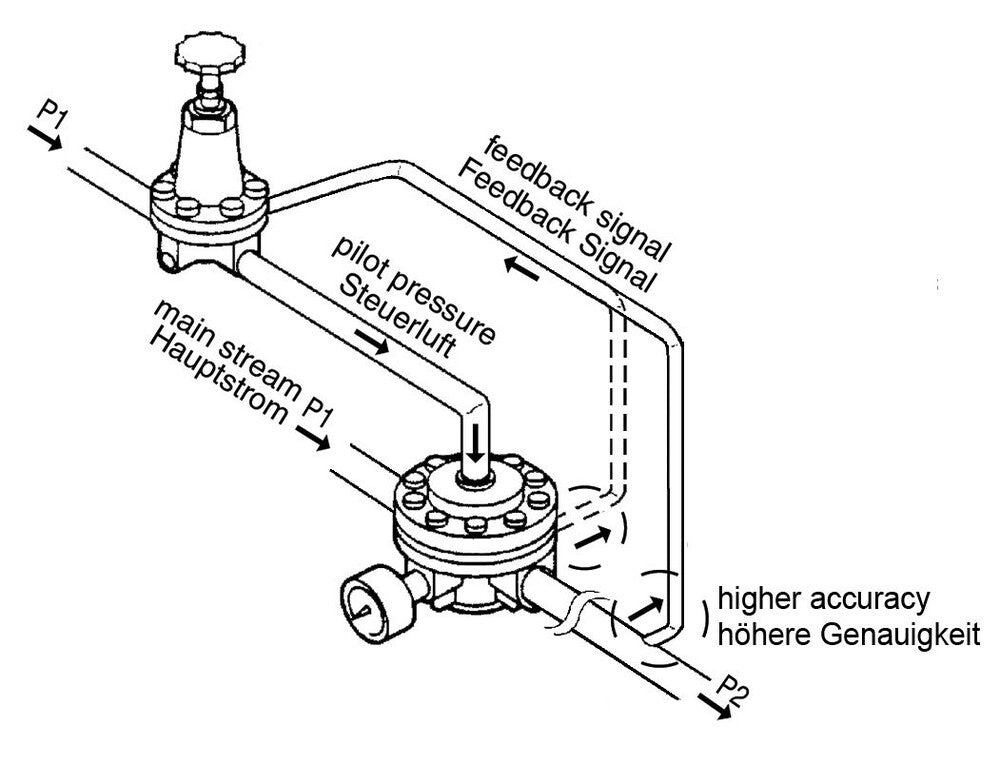

The maximum input pressure is 40.0 bar (580 psi) and the temperature range is between -10 and 80 °C (14 and 176 °F). There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The housing material is made out of zinc die-cast. A remote pressure regulator is used for hard-to-reach locations. The setting pressure is controlled by a separate pressure regulator in an accessible location through an air line.

Mounting brackets need to be ordered separately.
