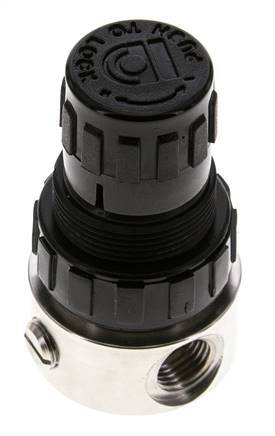

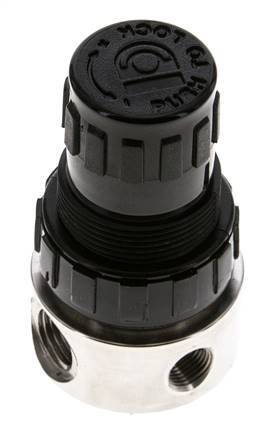

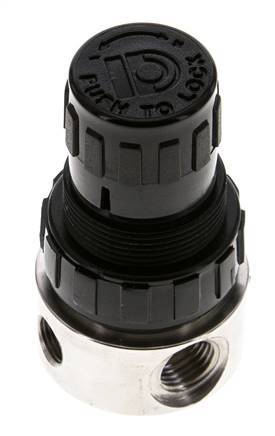

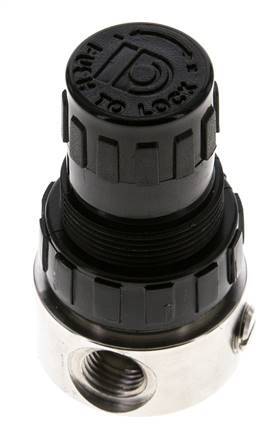

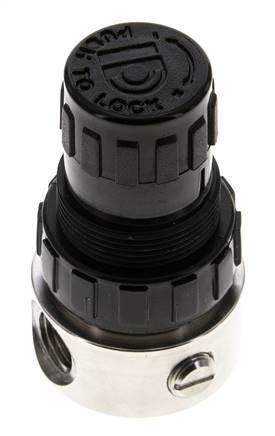

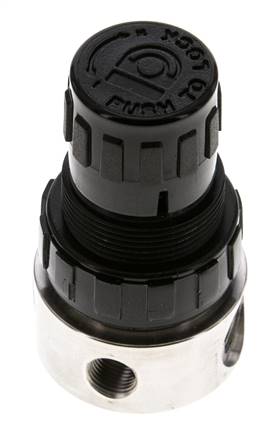

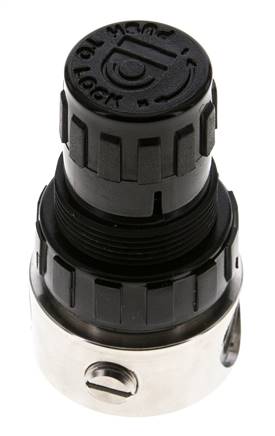

Pressure Regulator G1/4'' 350 l/min 1.0-15.0bar/14-218psi Stainless Steel/POM
This G 1/4 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 1.0 to 15.0 bar (14 to 218 psi). The regulator is self-relieving. The max flow rate is 350 l/min. Suitable for a 20.0 bar (290 psi) max input and temperatures between -20 and 60 °C (-4 and 140 °F).
- Regular price
- £240.74
Description
The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between1.0 to 15.0 bar (14 to 218 psi). This model has G 1/4 inch ports. The maximum flow rate is 350 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.
The maximum input pressure is 20.0 bar (290 psi) and the temperature range is between -20 and 60 °C (-4 and 140 °F). There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The housing material is made out of stainless steel.
Mounting brackets need to be ordered separately.
