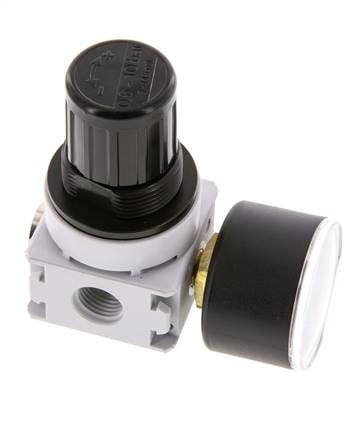

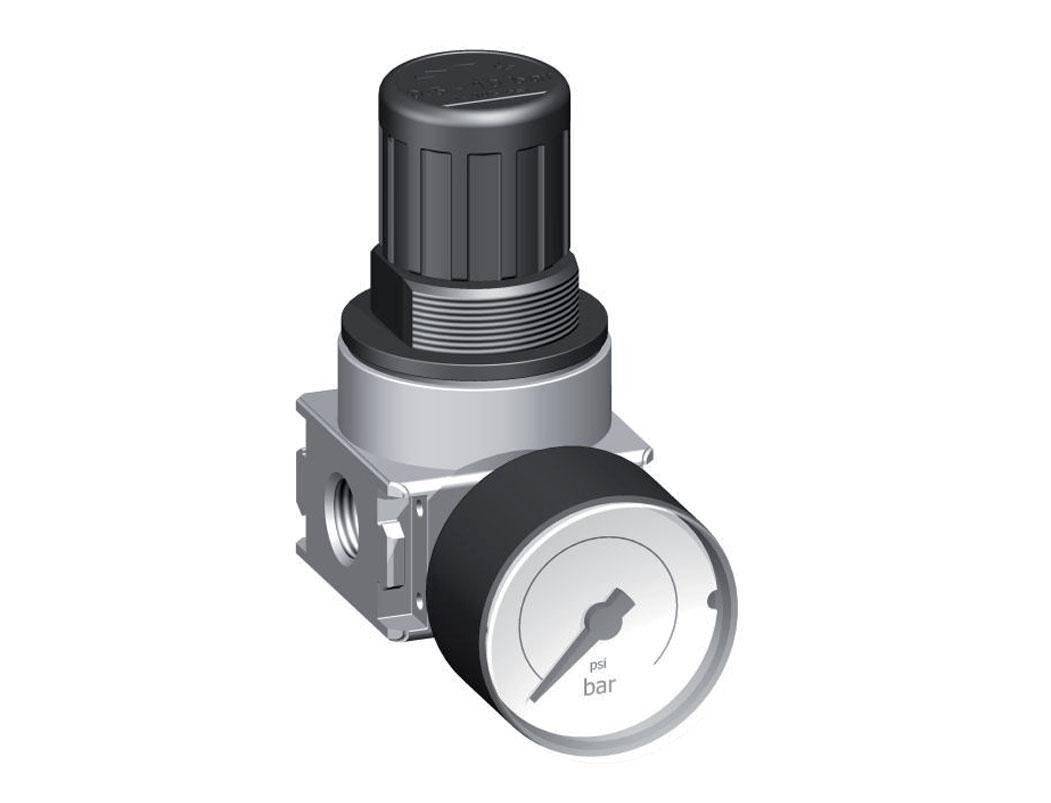

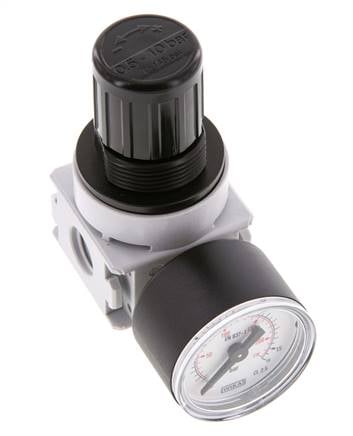

Pressure Regulator G1/4'' 700 l/min 0.5-10.0bar/7-145psi Air Water PA 40 mm Pressure Gauge Multifix 0

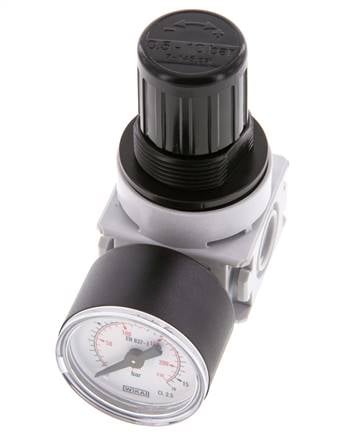

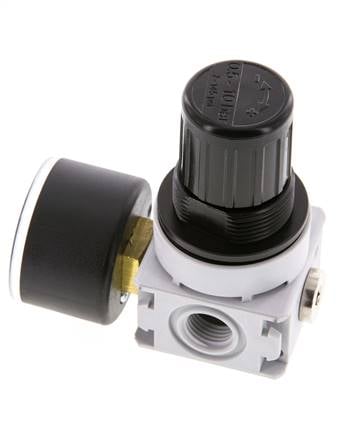

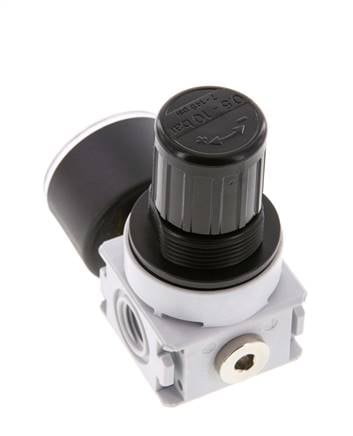

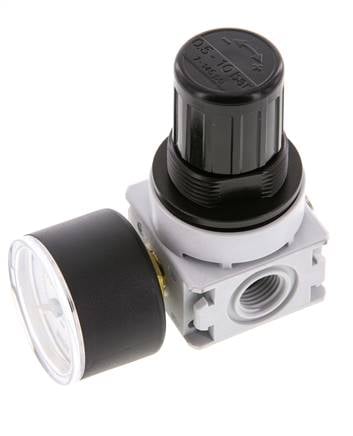

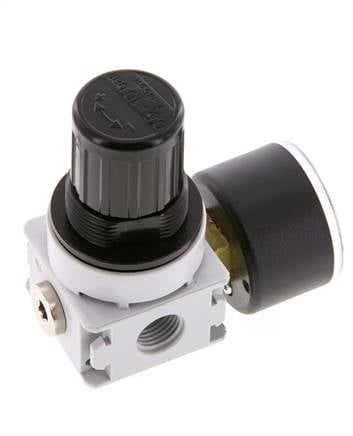

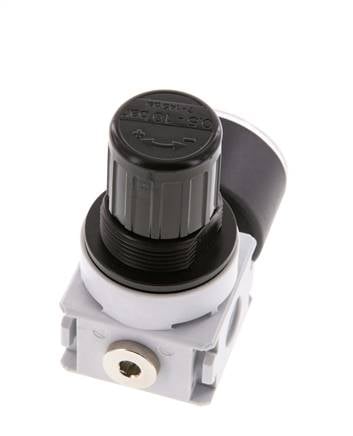

This G 1/4 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 0.5 to 10.0 bar (7 to 145 psi). Includes a pressure gauge. The max flow rate is 700 l/min (always use the flow chart for correct sizing). Suitable for a 16.0 bar (232 psi) max input and temperatures between and 50 °C (32 and 122 °F). To adjust the output pressure, pull the hand wheel up and twist.
- Regular price
- £24.03
Description

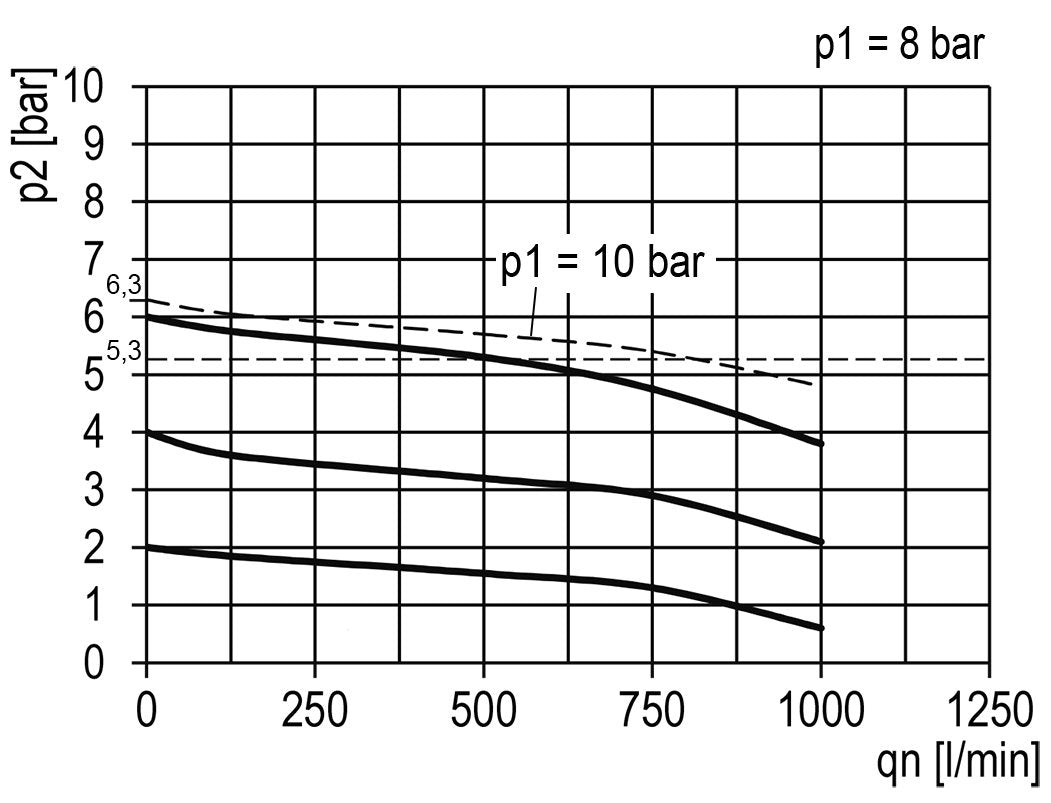

The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.5 to 10.0 bar (7 to 145 psi). This model has G 1/4 inch ports. The maximum flow rate is 700 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.
The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between and 50 °C (32 and 122 °F). The housing material is made out of PA 66. This pressure regulator is suitable for water and air.
Mounting brackets need to be ordered separately.
