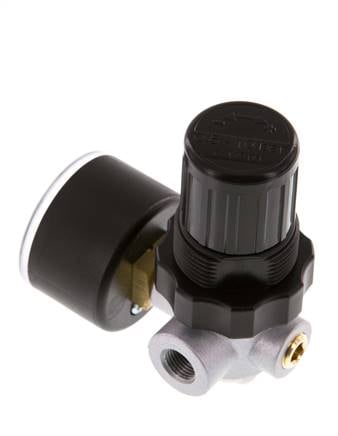

Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0

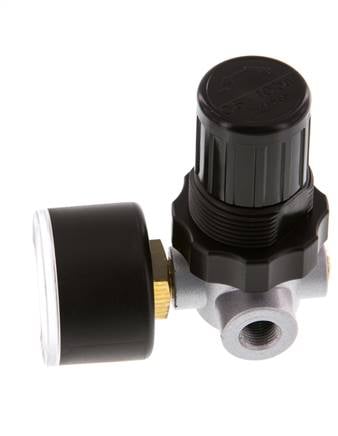

Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Pressure Regulator G1/8'' 450 l/min 0.5-10.0bar/7-145psi Zinc Die-Cast Standard 0
Image may vary slightly
See specifications for accurate information.
Reference: P26PA
Brand: Knocks
Mfr. Part: DR.022-00

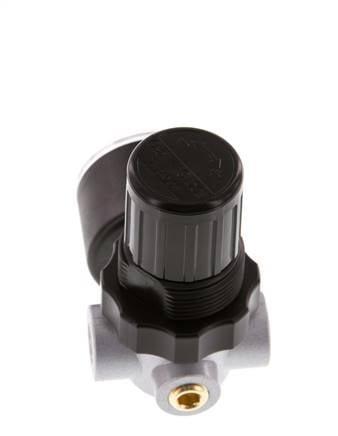

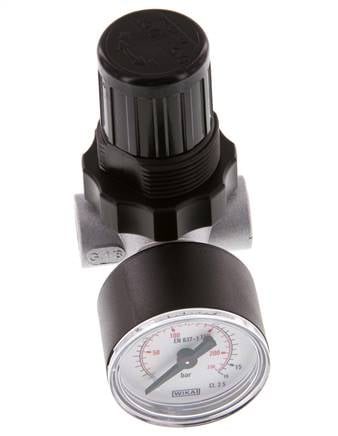

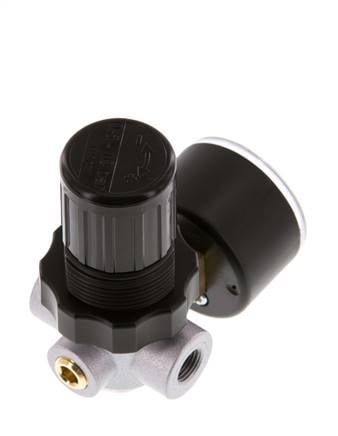

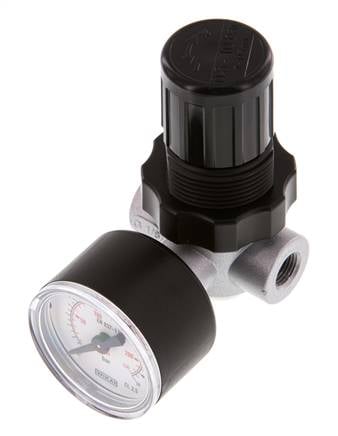

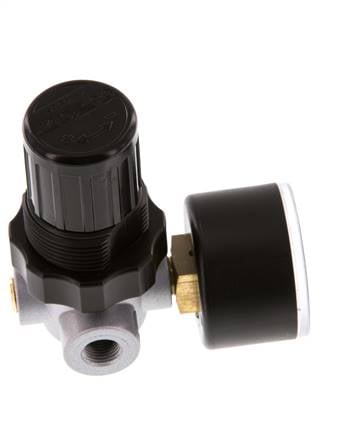

This G 1/8 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 0.5 to 10.0 bar (7 to 145 psi). The regulator is self-relieving. Includes a pressure gauge. The max flow rate is 450 l/min (always use the flow chart for correct sizing). Suitable for a 25.0 bar (363 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). To adjust the output pressure, pull the hand wheel up and twist. Lock by pushing the wheel back in.

View all
Regular price
£17.22
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 21 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Related products

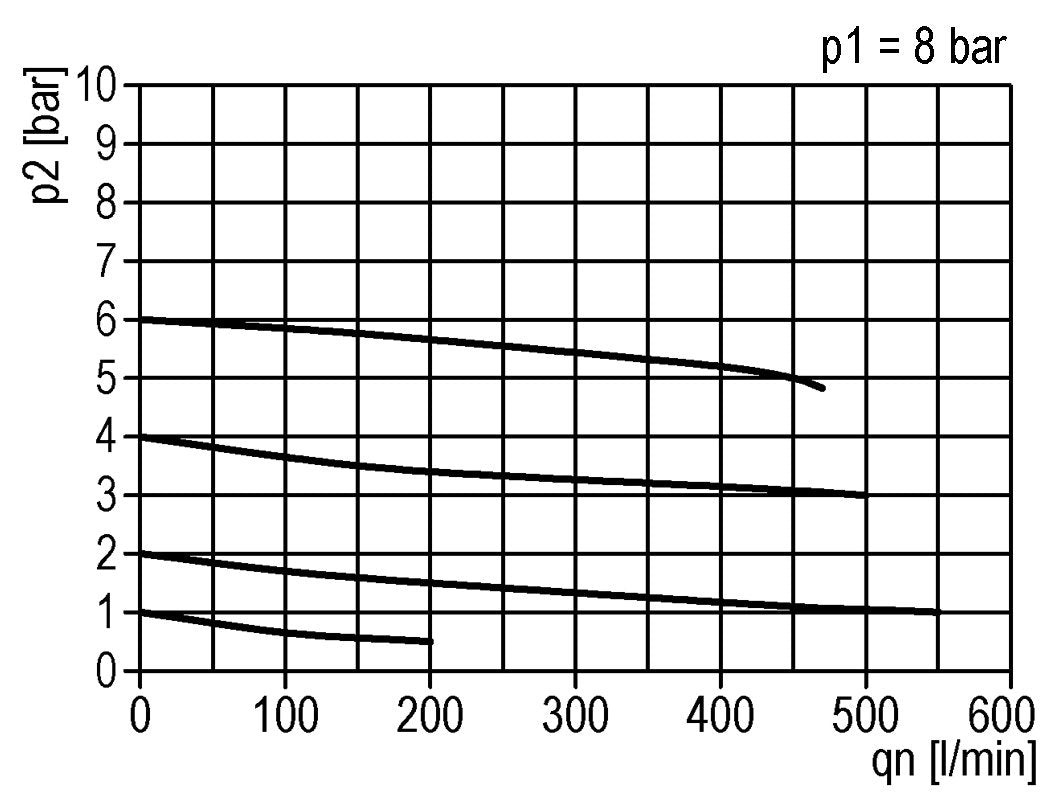

The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.5 to 10.0 bar (7 to 145 psi). This model has G 1/8 inch ports. The maximum flow rate is 450 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting. It can be locked after adjustment by pushing the hand wheel back in.

The maximum input pressure is 25.0 bar (363 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The housing material is made out of zinc die-cast.

Mounting brackets need to be ordered separately.
